Article
A Fast-Transient LDO with Enhanced Level-Shifted
FVF and Dynamic Compensation
Zhan Shi 1,*, He Huang 1, Tianyang Wang 2, Yang Zhou 3, Xiaomin Wei 4, Chunjuan Bo 1 and
Zhongfu Liu 1,*
1
College of Information and Communication Engineering, Dalian Minzu University, Dalian 116600, China
2
Zhangjiang Laboratory, Shanghai 201210, China
3
Institute of High Energy Physics, Chinese Academy of Sciences, Beijing 100049, China
4
School of Computer Science, Northwestern Polytechnical University, Xi’an 710072, China
* Correspondence: [email protected] (Z.S.); [email protected] (Z.L.)
Abstract
To meet the fast-response and wide load-current requirements of X-ray detector readout chips, a
Low-Dropout regulator (LDO) based on an improved Level-Shifted Flipped Voltage Follower (LS
FVF) is proposed in a 130-nm CMOS. A fast Flipped Voltage Follower (FVF)-based feedback loop is
introduced to improve transient response, while a level shifter is introduced to relax the dc operatingpoint coupling between the pass-transistor gate and the control transistor drain at light loads. To
further enhance response speed, dynamic current-source biasing, which senses output-voltage
variations through capacitive coupling, is proposed, and it is capable of adaptively increasing the LS
FVF driving capability during large load transients. A positive-feedback auxiliary circuit is proposed
to further accelerate the charging and discharging of the pass-transistor gate. To maintain stability
over the 0–400 mA load range, dynamic pole-zero compensation is combined with Miller
compensation to track load-dependent poles and preserve sufficient phase margin across operating
conditions. Post-layout simulations with a 200 pF load capacitor and a 0–400 mA load-current step
show, an overshoot of 100.4 mV and an undershoot of 50.5 mV, with recovery times of 0.2 µs and 0.12
µs, respectively. The proposed LDO achieves a capacitance-normalized transient figure of merit of
0.113 ps, demonstrating a favorable trade-off among performance parameters.
Keywords: LDO; FVF; fast transient response; dynamic biasing; pole-zero compensation
1. Introduction
As X-ray imaging systems evolve toward higher frame rates, greater throughput, and higher
levels of integration, detector readout ASICs typically integrate large-scale pixel arrays, multichannel
analog front ends, analog-to-digital converters, and high-speed digital processing modules [1–6].
During data acquisition and readout, the simultaneous activation of numerous digital circuits and
rapid switching between operating states can induce large and abrupt variations in the supply load
current. The digital power-management circuitry of the ASIC must therefore provide a fast transient
response while maintaining stable operation under such conditions. Meanwhile, the readout ASIC
also imposes stringent constraints on the area and power consumption of the power-management
circuitry. To address these requirements, this work presents an LDO implemented in a 130-nm CMOS
process, operating from a 1.5 V input to provide a 1.2 V output with a 200 pF load capacitance. The
proposed LDO achieves fast transient response and stable operation over a load-current range of 0–
400 mA.
Conventional LDOs typically employ an Error Amplifier (EA) to drive the power transistor and
regulate the output voltage through negative feedback, as illustrated in Figure 1. However, in highload-current applications, the power transistor generally requires a large device size, resulting in
substantial gate parasitic capacitance. This parasitic capacitance, together with the relatively high
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
Preprints.org (www.preprints.org) | NOT PEER-REVIEWED | Posted: 20 August 2026
doi:10.20944/preprints202608.1439.v1
2 of 19
equivalent output resistance of the EA, results in a large gate charging and discharging time constant
and consequently limits the load-transient response speed [7–9]. Therefore, accelerating the charging
and discharging of the gate of the large power transistor and mitigating the transient-response
limitation imposed by its parasitic gate capacitance are key challenges in achieving fast transient
performance in high-load-current LDOs.
VIN
VREF
MP
EA
VOUT
R1
VFB
CL
R2

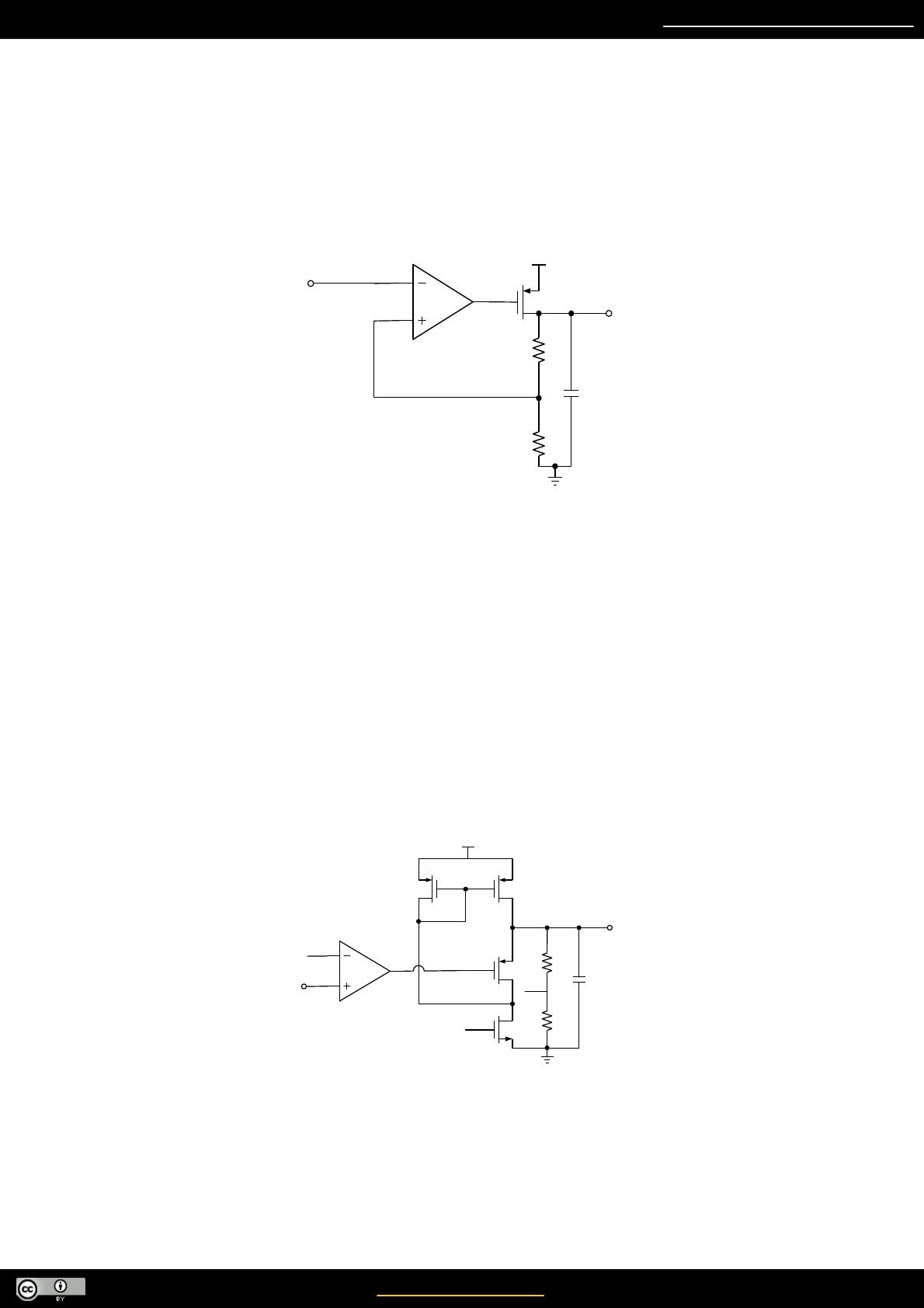

Figure 1. Architecture of the conventional LDOs.
To address the aforementioned challenges, Flipped Voltage Follower (FVF)-based LDOs, as
shown in Figure 2, have a racted considerable a ention owing to their fast feedback path and low
equivalent impedance [10–13]. In a conventional FVF, M1 directly senses variations in the output
voltage, while the current through M2 modulates the current delivered by the pass transistor MP,
allowing load disturbances to bypass the slow feedback path associated with the bandwidth-limited
conventional EA and thereby improving the transient response. However, conventional FVFs still
suffer from two major limitations when operating over a wide load-current range. First, the gate
voltage of the pass transistor MP and the drain voltage of the control transistor M1 are coupled; at
light loads, VPG must increase to reduce the overdrive voltage of MP , which may force M1 into the
triode region and consequently cause a deviation in the output voltage. Second, the conventional FVF
provides only small transient charging and discharging currents to VPG, resulting in a limited slew
rate at VPG and consequently constraining the transient response speed.
VIN
M2
VPG
MP
VOUT
VFB
VREF
EA
VCTRL
R1
M1
CL
VFB
R2
VBN1
MN
Figure 2. Basic FVF-based LDO architecture.
To address the first issue, the shared node between the two branches can be decoupled [14–17].
Albezzano et al. [14] introduced a common-gate stage into the fast feedback loop to form a Cascoded
FVF, which redistributes the internal node voltages and enables M1 to maintain an appropriate
operating condition over a wider load current range. However, the voltage level shift provided by
this structure is relatively limited, approximately equal to the overdrive voltage of the common-gate
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
Preprints.org (www.preprints.org) | NOT PEER-REVIEWED | Posted: 20 August 2026
doi:10.20944/preprints202608.1439.v1
3 of 19
transistor. To further increase the voltage level shift, a source follower can be employed [15] to form
a Level-Shifted FVF (LS FVF). Under a small overdrive voltage condition, its DC voltage level shift
can be approximately equal to the threshold voltage. Cai et al. [16] further modified the source
follower in the LS FVF into a Super Source Follower (SSF), forming an SSF FVF, which achieves the
same voltage level shift as the LS FVF while providing a lower output impedance. However, the SSF
FVF requires the output pole to be located at a low frequency to ensure stability, which limits the
maximum load current and imposes a minimum load capacitance requirement. To further extend the
load current range, Zhu et al. [17] combined the Cascoded FVF and SSF FVF to develop a Buffered
FVF (BFVF), which provides an enhanced voltage shift. However, this circuit exhibits degraded
stability under no-load conditions. Considering that the application requires a wide load current
range, including the no-load condition, the Cascode FVF, SSF FVF, and Buffered FVF structures are
not adopted in this design. Instead, the LS FVF structure is employed.
To address the second limitation, the transient response can be improved by increasing the
charging and discharging speed of the node of the pass-transistor gate [18–20]. Lu et al. [18]
introduced dynamic biasing into the FVF to rapidly adjust the bias current of the FVF loop in response
to load-current variations, thereby improving the transient response. In this scheme, a common-gate
MOS transistor converts variations in the output voltage into current variations, which are then
mirrored to modulate the FVF bias current, enabling rapid adjustment of the gate voltage of the large
pass transistor and alleviating the gate slew-rate limitation inherent in fixed-bias implementations.
However, the load-dependent variation of the internal poles in this topology is relatively complex,
posing considerable challenges to stability design over a wide load-current range. To further improve
the transient response, Boanloo et al. [19] employed a push–pull technique to enhance the gate slew
rate of the pass transistor in the FVF. This approach employs cross-coupled common-gate branches
to establish two output-voltage feedback paths. The resulting feedback signals control the push–pull
stage to provide larger bidirectional charging and discharging currents, thereby mitigating the slewrate limitation caused by the limited drive current in conventional FVFs. However, this method
requires additional gain stages and signal paths, increasing the number of internal dynamic nodes
and substantially complicating frequency compensation and stability design across the entire load
range. In addition to the above approaches, Pappiah et al. [20] incorporated a Slew-Rate Enhancer
(SRE) into an FVF LDO, where capacitive coupling senses variations in the FVF control voltage and
dual current mirrors directly charge and discharge the parasitic gate capacitance of the pass transistor,
thereby reducing the output-voltage deviation caused by load transients and shortening the recovery
time. However, this design was validated over a narrow load-current range of 0–50 mA, and its
transient driving capability for a large pass transistor under load currents of several hundred
milliamperes has not yet been sufficiently demonstrated. Considering the stringent chip area
constraint and the wide load current range of 0–400 mA in this application, the design combinates
dynamic biasing, push-pull driving, and capacitive coupling techniques to enhance the transient
response speed.
In addition, frequency compensation of the LDO over a wide load-current range represents
another major design challenge, which can be addressed using techniques such as pole spli ing, and
dynamic compensation [21–23].
In summary, although numerous improvements to FVF-based LDOs have been proposed to
extend the load-current range and enhance the transient response, several limitations remain. To
meet the requirements of the digital power supply in X-ray detector readout ASICs for fast transient
response and a wide load-current range, this work proposes an LDO based on an improved LS FVF
architecture implemented in a 130-nm CMOS process, as shown in Figure 3. In the proposed design,
the source follower in the LS FVF relaxes the coupling between the DC operating points and forms a
fast local feedback loop, while its low output impedance enhances the capability to drive the gate of
the large power PMOS transistor. Capacitive coupling is further employed to sense transient
variations in the output voltage and dynamically adjust the LS FVF bias current, thereby providing
the fast feedback loop with enhanced drive capability during load transients. Meanwhile, a positive-
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
Preprints.org (www.preprints.org) | NOT PEER-REVIEWED | Posted: 20 August 2026
doi:10.20944/preprints202608.1439.v1
4 of 19
feedback auxiliary circuit is proposed to accelerate the transient response of the gate voltage of MP.
Moreover, to maintain stability over the entire load-current range, a dynamic pole-zero compensation
scheme is adopted, in which the compensation network adjusts the pole and zero locations according
to the load condition to accommodate variations in the system poles.
VIN
MP
VOUT
Fast Loop
CIN
VPG
R
Slow Loop
VFB
CL
R
EA
VREF
VCTRL
M1
Dynamic
Pole-Zero
Compensation
Level
Shifter
CapacitiveCoupled
Dynamic Biasing
I1
Positive Feedback
Auxiliary

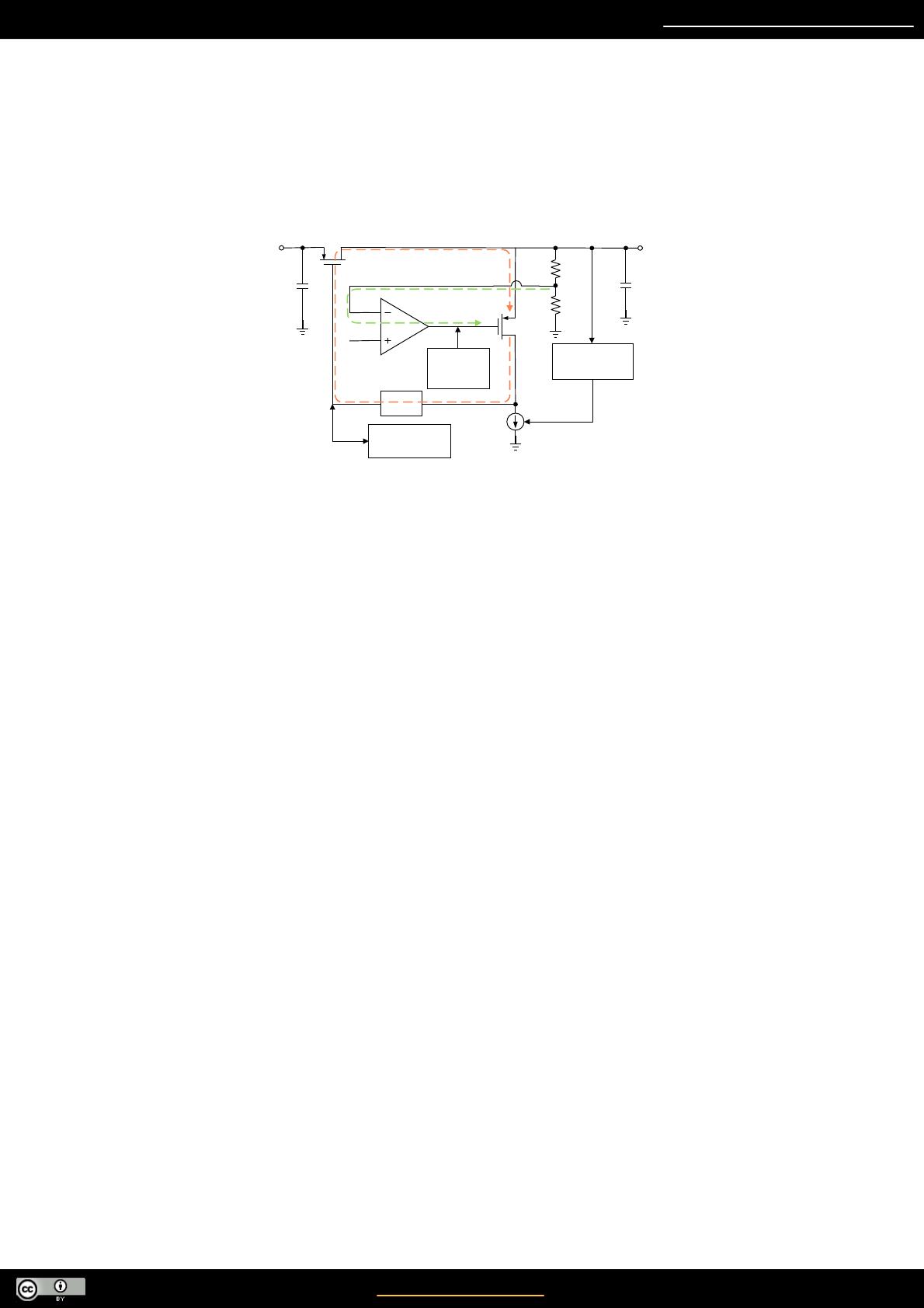

Figure 3. Block diagram of the proposed LS FVF-based fast-transient LDO.
The remainder of this paper is organized as follows: Section 2 analyzes and designs the key
modules, including the LS FVF fast loop, dynamic biasing circuit, positive feedback auxiliary circuit,
and EA. Section 3 establishes a dual-loop small-signal model, analyzes the system poles and zeros as
well as the dynamic pole-zero compensation mechanism, and presents the frequency-compensation
design of the LDO. Section 4 presents the LDO layout and post-layout simulation results and
compares its performance with prior work in terms of DC characteristics, load-transient response,
Power-Supply Rejection Ratio (PSRR), and other key metrics. Finally, Section 5 concludes the paper.
2. Proposed LDO Architecture
2.1. LS FVF Fast Loop Analysis and Design
In this application, the current load varies from 0 to 400 mA, resulting in a wide variation in the
gate voltage of the power transistor MP. However, the biasing condition of the conventional FVF is
difficult to accommodate such a wide gate voltage range, which may drive the control transistor M1
out of the saturation region and degrade the normal operation of the feedback loop. To address this
issue, a level shifter consisting of MLS and MLSP is incorporated into the FVF to form an LS FVF, as
shown in Figure 4. By decoupling the gate of MP from the drain of M1, the proposed structure
alleviates the a forementioned limitation and enables all transistors to maintain appropriate operating
conditions over a wide load range. Furthermore, the source-follower-based level shifter introduced
in the LS FVF further reduces the equivalent impedance at the gate node VPG of the power transistor,
thereby decreasing the charging and discharging time constant associated with the large gate
parasitic capacitance and improving the gate speed of MP. A quantitative analysis of the low-outputimpedance characteristic of the LS FVF is presented below.
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
Preprints.org (www.preprints.org) | NOT PEER-REVIEWED | Posted: 20 August 2026
doi:10.20944/preprints202608.1439.v1
5 of 19
VIN
VBP3
MLSP
Cgs
MP
VPG
Cgd
MLS
VOUT
M1
VCTRL
IL
CL
VA
VBN1
MN
Figure 4. Schematic of the LS FVF.
When a test voltage vt is applied to the gate node VPG of the power transistor MP , the smallsignal voltage response vA at the internal node VA after signal amplification through MP and the
common-gate transistor M1 can be expressed as:
vA =-gmP RA vt .
(1)
Here, gmP denotes the transconductance of the power transistor MP, and RA represents the
equivalent impedance at node VA, which can be approximated as RA = gmP r ro1 ∥ roN .
oP
Based on Kirchhoff’s current law at the VPG node, the approximate expression for the smallsignal output impedance at VPG can be derived as:
v
1
it
gmLS (gmP RA 1)
Rout,VPG = t =
.
(2)
Here, gmLS denotes the transconductance of the level-shifting transistor MLS .
Since the transconductance of the power transistor gmP is sufficiently large and satisfies
gmP RA ≫ 1, the above expression can be further simplified for engineering analysis as:
Rout,VPG ≈
1
gmLS gmP RA
.
(3)
The charging and discharging time constant at node VPG under LS FVF drive is reduced to:
τLS FVF = Rout,VPG ⋅ CG,MP ≈
CG,MP
gmLS gmP RA
C
≪ τFVF ≈ g G,MP
.
g
m2
mP
(4)
Here, τFVF denotes the time constant at VPG in the conventional FVF shown in Figure 2, where
the equivalent resistance at this node is approximately
1
gm2 + gmP
. In the proposed design, gmLS RA ≫1,
resulting in an Rout,VPG that is significantly lower than the equivalent resistance at VPG in the
conventional FVF, thereby substantially reducing the associated time constant. Therefore, compared
with the conventional FVF, the LS FVF further reduces the equivalent impedance at the gate node of
the power transistor, shifting the corresponding pole toward higher frequencies and shortening the
small-signal se ling time. The large-signal slew rate is instead determined by the charging and
discharging currents at the VPG node.
2.2. Analysis and Design of the Capacitive-Coupled Dynamic Biasing Circuit (CCDB) and the Positive
Feedback Auxiliary (PFA) Circuits
To address the trade-off between low quiescent current and fast transient response caused by
the fixed current biasing in the LS FVF circuit, two auxiliary circuits, namely, a Capacitive-Coupled
Dynamic Biasing (CCDB) and a Positive Feedback Auxiliary (PFA) circuit, are introduced to
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
Preprints.org (www.preprints.org) | NOT PEER-REVIEWED | Posted: 20 August 2026
doi:10.20944/preprints202608.1439.v1
6 of 19
dynamically regulate the charging and discharging currents at VPG , thereby accelerating the
transient response. When the load current increases abruptly and VOUT decreases, the CCDB circuit
raises VBN1 , thereby increasing the current of MN and further enhancing the discharging current of
MLS . As a result, the voltage at VPG rapidly decreases, increasing the current through MP to
compensate for the load variation and maintain a stable VOUT . To further accelerate the charging and
discharging of the VPG node, a PFA circuit is proposed, which dynamically adjusts the current of the
charging current source MLSP and introduces an additional discharge branch to adaptively regulate
the discharge current at the MP node.
2.2.1. Capacitive-Coupled Dynamic Biasing Circuit
The CCDB circuit, highlighted in blue in Figure 5, employs capacitive coupling to sense
variations in the output voltage and dynamically adjust the current of the current-source transistor
MN . Under steady-state conditions, capacitor C2 behaves as an open circuit at dc. In this condition,
M6 –M9 together with resistor R2 establish a stable dc bias, maintaining VBN1 at the desired level.
Consequently, MN provides only the baseline tail current required for proper operation of the LS
FVF. Therefore, under light-load or steady-output conditions, the fast loop does not continuously
operate at a high bias current. When the load current increases abruptly, VOUT undergoes a rapid
undershoot. This voltage variation is coupled through C2 to the gate of M6 . As VOUT decreases, the
gate voltage of M6 also drops momentarily, enhancing the conduction of the PMOS transistor M6
and thereby rapidly raising VBN1 . The resulting increase in VBN1 increases the current through the
LS FVF tail transistor MN , thereby providing the fast loop with enhanced current-driving capability.
Unlike a conventional approach that continuously increases the quiescent bias current, the proposed
dynamic biasing technique temporarily enhances the transconductance and drives current of the
critical branches only during output transients and restores the circuit to its low-power state once the
transient subsides. In the design, the CCDB circuit draws a quiescent current of 15 µA under fullload conditions.
VIN
VBP3
MLSP
M2
VPG
MP
M6
MLS
VCTRL
M1
CL
IL
C2
VBP3
M3
M4
M7
R2
VOUT
VBN1
VA
MN
VBN1
Positive Feedback
Auxiliary
M8
VBN2
M9
Capacitive-Coupled
Dynamic Biasing
Figure 5. Schematic of the LS FVF with the Capacitive-Coupled Dynamic Biasing (CCDB) and the Positive
Feedback Auxiliary (PFA) circuits.
To quantitatively assess the transient-response enhancement achieved by the CCDB circuit,
comparative simulations were conducted with the CCDB enabled and disabled, while all other
conditions, including the pass-transistor dimensions, LS FVF fast loop, and slow main loop, were
kept identical. With a 200-pF load capacitance, the load current was stepped between 0 and 400 mA
with a 100-ns transition time, and the resulting transient responses are shown in Figure 6.
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
Preprints.org (www.preprints.org) | NOT PEER-REVIEWED | Posted: 20 August 2026
doi:10.20944/preprints202608.1439.v1
7 of 19
Figure 6. Load-transient responses of the proposed LDO with and without the CCDB for load-current steps
between 0 and 400 mA with a 100-ns transition time.
Without CCDB, the LDO output voltage drops to a minimum of approximately 1.08 V,
corresponding to an undershoot of about 117.2 mV; with CCDB enabled, the minimum output
voltage increases to approximately 1.15 V and the undershoot is reduced to about 45.6 mV.
Meanwhile, a pronounced reverse overshoot occurs after the initial undershoot when CCDB is
disabled, whereas this secondary voltage disturbance is significantly suppressed when CCDB is
employed. This improvement arises because the output-voltage drop is coupled to the LS FVF tailcurrent control node through the CCDB, transiently increasing the effective transconductance of the
fast loop and enhancing the gate-discharge capability, thereby allowing the power PMOS transistor
to increase the output current more rapidly. When the current load transitions from heavy load to
light load, the initial overshoot peaks are similar with and without CCDB, indicating that it does not
provide a significant improvement for this transition.
2.2.2. Positive Feedback Auxiliary Circuit
The PFA circuit, highlighted in orange in Figure 5, dynamically regulates the charging and
discharging currents of the VPG node. Under steady-state conditions, the PFA provides the gate-bias
voltage VBP3 for the current-source transistor MLSP of the level shifter. When the load current
increases abruptly, the LS FVF pulls VPG downward, increasing IM2 and consequently raising VBP3 ,
which reduces the charging current supplied by MLSP to VPG and thereby accelerates its voltage
drop. To further accelerate the voltage drop at this node, a current mirror formed by M3 and M4
provides an additional discharge path for VPG . Therefore, the PFA circuit adaptively regulates the
charging and discharging currents of VPG , further improving the response speed of the LS FVF. The
PFA circuit draws a quiescent current of approximately 200 µA under full-load conditions.
To further verify the improvement in transient performance provided by the PFA circuit,
comparative load-transient simulations were performed with and without the PFA circuit. Under
identical simulation conditions, the load current was switched between 0 and 400 mA with a
transition time of 100 ns, while the output load capacitance was maintained at 200 pF. As shown in
Figure 7, without the PFA circuit, the limited charging and discharging capability of the LS FVF fast
loop at the power-transistor gate node VPG results in a relatively large output-voltage deviation
during load transients, with a maximum deviation of approximately 68.9 mV. In contrast, with the
PFA circuit enabled, the maximum output-voltage deviation is reduced to approximately 45.6 mV,
resulting in a significant improvement in transient performance. This improvement is primarily
a ributed to the PFA circuit dynamically regulating the charging and discharging of the VPG node.
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
Preprints.org (www.preprints.org) | NOT PEER-REVIEWED | Posted: 20 August 2026
doi:10.20944/preprints202608.1439.v1
8 of 19
Figure 7. Load-transient responses of the proposed LDO with and without the PFA for load-current steps
between 0 and 400 mA with a 100-ns transition time.
2.3. Analysis and Design of an RFC-Based EA
In the proposed dual-loop LDO architecture, the slow main loop is primarily responsible for
high-accuracy DC regulation and steady-state output-voltage control. As the core building block of
the slow main loop, the gain and bandwidth of the EA are key factors determining the LDO’s line
regulation, load regulation, and low-frequency PSRR. To enhance both gain and bandwidth without
increasing the quiescent power consumption, an EA based on the Recycling Folded-Cascode (RFC)
topology is adopted in the design.
Although the conventional Folded-Cascode (FC) amplifier provides a wide input commonmode range and high output resistance, its folded branches are primarily used for DC biasing and
small-signal current transfer rather than directly contributing to transconductance amplification,
resulting in limited transconductance efficiency per unit bias current. The RFC topology reuses the
bias-branch currents of the conventional folded-cascode amplifier, allowing currents that would
otherwise contribute only marginally to signal amplification to be converted into effective
transconductance, thereby improving the transconductance, unity-gain bandwidth, and slew rate at
approximately the same power consumption [24–27]. As illustrated by the RFC block in Figure 8, the
input differential pair is proportionally split, and a cross-coupled current-mirror ratio K is employed
to constructively combine the small-signal currents in the folded branches with the input-signal
current, thereby substantially enhancing the effective transconductance without increasing the tail
bias current. The low-frequency voltage gain of the RFC amplifier, AV,RFC , can be expressed as:
AV,RFC ≈ -(1+K)gm18 gm30 ro30 ro28 ∥ gm32 ro32 (ro18 ∥ ro26 ) .
(5)
gmi and roi denote the transconductance and small-signal output resistance, respectively, of
transistor Mi in Figure 8, while K represents the current-mirror ratio of the RFC cross-coupled
current mirror and is set to 3 in the design.
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
Preprints.org (www.preprints.org) | NOT PEER-REVIEWED | Posted: 20 August 2026
doi:10.20944/preprints202608.1439.v1
9 of 19
VIN
VBP1
M27
M28
M12
VREF
VFB
M18
M17
M29
VBP2
M30
VCTRL
M19
M20
M21
M23
M24
K:1
VBN2
M31
VBN2
M32
M22
M25
M26
1:K
Figure 8. Schematic of the RFC EA.
As shown in Figure 9, the simulated RFC EA achieves a DC gain of approximately 70 dB and a
unity-gain bandwidth of 50 MHz while drawing only approximately 65 µA. The high DC gain
effectively suppresses the impact of supply disturbances and load-current variations on the output
voltage, thereby improving both line and load regulation.
Figure 9. Gain of the RFC EA.
3. Loop Stability and Frequency Compensation Design
The complete circuit of the proposed LDO is shown in Figure 10. Due to the presence of two
loops and multiple amplification stages, frequency compensation is required to ensure stable
operation. In the design, the load current varies from 0 to 400 mA, causing the pole locations
associated with the power transistor MP to shift by several orders of magnitude due to the variations
in its transconductance gmP and output resistance ROUT , which poses a significant challenge to
system stability. In this section, the loop is broken at the output node VOUT to establish the smallsignal model of the open-loop system, derive its transfer function, and analyze the frequency
compensation mechanism, as illustrated in Figure 11.
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
Preprints.org (www.preprints.org) | NOT PEER-REVIEWED | Posted: 20 August 2026
doi:10.20944/preprints202608.1439.v1
10 of 19
VIN
VBP1
M27
M28
VBP3
M3
M12
VREF
VFB
M18
M17
M30
MLS
M21
VBN2
VCTRL
VBN2
M31
M32
C1
M4
M7
R1
M1
C2
R
RC
M20
M6
VOUT
VBP3
VCTRL
M19
MP
VPG
CC
VBP2
M29
MLSP
VFB
CL
IL
VBN1
VA
M5
R
VBN1
M22
VBN2
M9
M8
MN
M33
M23
M24
M25
M26
RFC
LSFVF-based
Figure 10. Schematic of the proposed LS FVF-based fast-transient LDO.
R1
REA
CEA
C1
R
VFB
-gm,RFC
gm1
VCTRL
R
VA
VIN,OUT
VPG
gm1
RA
RPG
CA
VOUT,OUT
-gmP
gm,LS
RC
ROUT
CG,MP
CL
CC
Figure 11. Small-signal equivalent model of the proposed LDO.
Neglecting the poles located well beyond the unity-gain bandwidth, four dominant nodes need
to be considered: the EA output node VCTRL , the LS FVF internal node VA , the power-transistor gate
node VPG , and the output node VOUT . Therefore, with the PFA circuit retained while temporarily
neglecting the frequency-compensation networks formed by RC -CC and C1 -R1 , the uncompensated
open-loop gain T0 (s) can be approximated as:
T0 (s) ≈
A0
1+
s
ωp,CTRL
1+
s
ωp,A
1+
s
ωp,PG
1+
s
ωp,OUT
.
(6)
Here, A0 denotes the magnitude of the equivalent DC loop gain., while ωp,CTRL , ωp,A , ωp,PG ,
and ωp,OUT represent the four poles considered in the small-signal model, respectively.
The RFC EA output node VCTRL exhibits a high output resistance REA , with its equivalent node
capacitance denoted as CEA . Therefore, without the dynamic compensation branch, the absolute
value of the corresponding pole can be approximately expressed as ωp,CTRL ≈
1
REA CEA
. In the design,
the RFC EA exhibits a high output impedance and relatively large parasitic capacitance, making
VCTRL the dominant pole of the system. The primary objective of the subsequent compensation
scheme is not to alter this low-frequency dominant pole, but rather to control the non-dominant poles
that follow and mitigate the additional phase shift introduced by these poles.
The second node that requires consideration is VA , which is located within the fast path of the
LS FVF. If RA and CA denote the equivalent small-signal resistance and total parasitic capacitance
at this node, respectively, the absolute value of the corresponding pole without compensation can be
approximated as ωp,A ≈
1
RA CA
. Since VA is located inside the LS FVF fast loop, its pole directly affects
the phase shift of the fast path in the medium- and high-frequency regions. When ωp,A approaches
the unity-gain frequency of the loop, the additional phase lag introduced by this pole combines with
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
Preprints.org (www.preprints.org) | NOT PEER-REVIEWED | Posted: 20 August 2026
doi:10.20944/preprints202608.1439.v1
11 of 19
those from the other two non-dominant poles, becoming one of the major stability limitations in highbandwidth designs.
The third critical pole is located at the VPG node. To support a maximum load current of 400
mA, the power transistor MP requires a large device size, resulting in a substantial parasitic gate
capacitance CG,MP at this node. Accordingly, the absolute value of the pole at VPG can be
approximated as:
ωp,PG ≈
gmLS gmP RA
CG,MP
.
(7)
The fourth critical pole is located at the output node VOUT . When CL is much larger than the
parasitic capacitance at the output node, the absolute value of the output pole can be approximated
as ωp,OUT ≈
1
ROUT CL
. Here, ROUT denotes the small-signal equivalent resistance at the output node,
and CL is the load capacitance. Unlike the poles associated with the three internal nodes, ωp,OUT is
highly sensitive to the load current. At light loads, the transconductance of the power transistor
decreases while the equivalent output resistance increases, causing the output pole to shift toward
lower frequencies and potentially approach the internal non-dominant poles, such that multiple poles
may simultaneously fall within the unity-gain bandwidth and significantly degrade system stability.
Under heavy-load conditions, the output pole shifts toward higher frequencies, while the powertransistor gate node VPG and the internal node VA in the fast loop become the primary limitations
on stability in the medium- and high-frequency regions.
Therefore, the proposed system does not exhibit a fixed arrangement of non-dominant poles
over the entire load range. Instead, it behaves as four poles coupled system whose pole locations vary
with the load condition. This load-dependent pole migration is also one of the primary reasons why
a fixed single-zero compensation scheme is insufficient to ensure stability over the entire load range.
To increase the separation among the four poles, a Miller compensation branch composed of the
series-connected RC and CC is first introduced between VA and VOUT . Assuming that the
v
equivalent gain from VA to VOUT is out ≈ -AF , where AF > 0, the effective capacitance contributed
vA
by the Miller capacitor at VA can be approximated as CA,eff ≈ CA + (1+AF )CC , shifting the absolute
value of the compensated pole at this node to:
’
ωp,A
≈
1
.
(8)
RA [CA + (1 + AF)CC ]
Owing to the Miller multiplication of CC by the forward gain, the pole at VA is significantly
separated from the subsequent high-frequency poles, thereby producing the well-known polespli ing effect. In the proposed design, this compensation network is not intended to replace the lowfrequency dominant pole at VCTRL . Instead, it establishes a controlled frequency separation within
the fast LS FVF path, thereby preventing the phase contributions of VA , VPG , and VOUT from
accumulating within the same frequency range around the unity-gain frequency.
Using the compensation capacitor alone introduces a right-half-plane zero through the
feedforward current path. Therefore, a series resistor RC is employed to control the location of this
zero and improve system stability. Denoting the equivalent transconductance of the downstream
stages from VA to the output as GmF , the zero location under the conventional first-order Miller
compensation approximation can be expressed as:
ωz,C ≈
When RC =
1
GmF
1
CC
1
GmF
- RC
.
(9)
, the zero introduced by the feedforward path through the compensation
capacitor is pushed to a very high frequency. By further se ing RC >
1
GmF
, the zero is shifted into the
left-half plane, providing positive phase lead in the mid-frequency region. In the design, RC and CC
are set to 300 Ω and 29 pF, respectively. RC remains greater than
1
GmF
thereby improving system stability.
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
over the entire load range,
Preprints.org (www.preprints.org) | NOT PEER-REVIEWED | Posted: 20 August 2026
doi:10.20944/preprints202608.1439.v1
12 of 19
For large load-current variations, the fixed RC -CC compensation network alone is insufficient
to ensure system stability over the entire load range. To address this issue, a dynamic pole-zero
compensation network composed of C1 and MOS transistor M33 is further introduced at the VCTRL
node. Unlike a fixed resistor, the equivalent resistance of M33 , denoted as R1 , varies with VCTRL . In
the design, R1 is approximately 30 Ω under no-load conditions, and C1 is 20 pF. The admi ance at
this node can be expressed as:
YCTRL (s) =
1
REA
+ sCEA +
sC1
1 + sR1 C1
.
(10)
Accordingly, the corresponding impedance can be expressed as:
ZCTRL (s) =
REA (1 + sR1 C1 )
1 + s [R1 C1 + REA (CEA + C1 )] + s2 REA R1 CEA C1
.
(11)
As indicated by (11), the introduction of the C1 -R1 network introduces an additional zero
located at ωz,1 = -
1
R1 C1
. Since REA ≫R1 in the design, the two poles can be approximately expressed
as:
ωp,L ≈ -
1
,
(12)
REA (CEA + C1 )
and
C
ωp,H ≈ - EA
+ C1
R1 CEA C1
.
(13)
Therefore, the resulting pole-zero locations approximately satisfy the frequency relationship
|ωp,L | < |ωz,1 | < |ωp,H |.
In the low-frequency region, C1 behaves approximately as an open circuit, allowing the RFC to
retain a high output impedance and DC gain without significantly affecting the steady-state
regulation of the main loop. In the mid-frequency region, the zero ωz,1 provides phase lead to
compensate for the phase lag introduced by the poles at VA , VPG , and the LDO output, while its
location adaptively shifts with the output pole. At higher frequencies, ωp,H shifts dynamically
relative to the output pole to maintain system stability. At light loads, the output pole moves toward
the origin. Meanwhile, the EA output voltage decreases, increasing R1 and consequently shifting the
introduced zero ωz,1 toward the origin, thereby maintaining sufficient phase margin. Therefore,
compared with conventional fixed-zero compensation, the proposed network preserves high lowfrequency gain while selectively providing phase boost in the mid-frequency region, where the
system stability is most critical.
Based on the above analysis, the compensated loop transfer function can be expressed as:
A0 1+
T(s) ≈
1+
s
ωp,L
s
1+
ωp,H
s
ωz,C
s
1+ ‘
ωp,A
s
ωz,1
1+
1+
s
ωp,PG
1+
s
.
(14)
ωp,OUT
System stability is ensured by three coordinated frequency-compensation mechanisms. First, the
low output impedance of the LS FVF pushes the gate pole ωp,PG of the large pass transistor to high
frequencies. Second, the RC -CC network provides pole spli ing and controls the Miller zero along
the fast VA -VOUT path. Finally, the C1 -R1 network introduces adaptive pole-zero compensation that
tracks the output pole and provides additional phase lead in the mid-frequency region. Together,
these mechanisms prevent multiple non-dominant poles from clustering near the unity-gain
frequency. Simulation results show that, with CL = 200 pF, the system maintains sufficient stability
margins over the entire load-current range of 0–400 mA. As shown in Figure 12, the simulated phase
margins at the TT process corner are approximately 46.7° at no load and 76.4° at full load. As shown
in Figure 13, the no-load phase margins remain above 45° at both the SS and FF process corners,
demonstrating the robustness of the proposed compensation scheme across process corners and over
the full load range.
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
Preprints.org (www.preprints.org) | NOT PEER-REVIEWED | Posted: 20 August 2026
doi:10.20944/preprints202608.1439.v1
13 of 19
Figure 12. AC loop-gain and phase under various load currents for the TT corner.
(a)
(b)
Figure 13. AC loop-gain and phase under various load currents for (a) the SS corner and (b) the FF corner.
4. Layout Design and Post-Layout Simulation
4.1. Overall Circuit Layout Design
To verify the feasibility of the proposed LDO, the complete layout was implemented, as shown
in Figure 14. The LDO core occupies approximately 173 µm × 480 µm , while the overall layout
including the I/O pads measures 460 µm × 620 µm. In the layout, the power transistor adopts a multifinger structure and multilayer metal routing to reduce parasitic resistance and improve currentdistribution uniformity. Meanwhile, the critical analog blocks are appropriately isolated from the
high-current power paths to mitigate the impact of substrate noise and supply disturbances induced
by large current variations through the power transistor of the EA and feedback nodes. In addition,
matching-sensitive devices, such as the differential input pair and current mirrors, are designed using
common-centroid and symmetric techniques to minimize mismatch caused by process variations.
The final layout includes I/O pads, providing the implementation required for subsequent parasitic
extraction and post-layout simulations.
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
Preprints.org (www.preprints.org) | NOT PEER-REVIEWED | Posted: 20 August 2026
doi:10.20944/preprints202608.1439.v1
14 of 19
C2+CC
EA&LSFVF&Adaptive
Biasing&Positive
Feedback Auxiliary
C1
Power
Transist
or
480 μm
173 μm
Figure 14. Layout of the proposed LS FVF-based fast-transient LDO.
4.2. LDO Post-Layout Simulation Results
To evaluate the performance of the proposed LDO, post-layout simulations were performed
after layout implementation, including evaluations of the transient response, line regulation, load
regulation, PSRR, and so on.
In the post-layout simulations, the load capacitance was set to 200 pF, and the load current was
stepped between 0 and 400 mA with a transition time of 100 ns. The transient responses of the LDO
at different process corners are shown in Figure 15. The results are summarized in Table 1, the
proposed LDO exhibits recovery times of no more than 0.2 µs and small output-voltage excursions,
demonstrating the effectiveness of the proposed design. The recovery time is defined as the interval
from the load-step edge until the output voltage re-enters and subsequently remains within ±1% of
its steady state value.
Figure 15. Transient response of the proposed LDO for load-current steps between 0 and 400 mA with a 100-ns
transition time.
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
Preprints.org (www.preprints.org) | NOT PEER-REVIEWED | Posted: 20 August 2026
doi:10.20944/preprints202608.1439.v1
15 of 19
Table 1. Transient-response parameters at the TT, FF, and SS corners.
Parameter
Undershoot (mV)
Undershoot recovery
time (μs)
Overshoot (mV)
Overshoot recovery time
(μs)
TT
50.5
FF
40.0
SS
62.6
0.12
0.10
0.14
100.4
87.0
116.5
0.2
0.2
0.2
The post-layout simulation results for line regulation are shown in Figure 16. At the full-load
current of 400 mA, the proposed LDO achieves line-regulation values of 2.1 mV/V, 1.1 mV/V, and 2.8
mV/V at the TT, FF, and SS process corners, respectively.
Figure 16. Line regulation at the TT, FF, and SS process corners with ILOAD = 400 mA.
The post-layout simulation results for load regulation are shown in Figure 17, where the load
current ILOAD is continuously swept from 0 to 400 mA. At a current load of 400 mA, the DC output
voltage at the TT process corner decreases by approximately 9.72 mV from its no-load value,
corresponding to a load regulation of approximately 24.3 µV/mA. An approximately linear decrease
in the output voltage is also observed at the other corners, with load-regulation values of 24.4 µV/mA
and 24.5 µV/mA at the SS and FF corners, respectively.
Figure 17. Load regulation at the TT, FF, and SS process corners.
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
Preprints.org (www.preprints.org) | NOT PEER-REVIEWED | Posted: 20 August 2026
doi:10.20944/preprints202608.1439.v1
16 of 19
The post-layout simulation results for the PSRR at a current load of 400 mA are shown in Figure
18. At the TT process corner, the low-frequency PSRR reaches -50 dB. As the frequency increases
beyond the dominant-pole frequency, the open-loop gain of the EA begins to roll off, gradually
weakening the noise-rejection capability of the main loop. Nevertheless, the PSRR remains
approximately -20 dB at 100 kHz. Although slight differences in low-frequency PSRR are observed
among the SS, TT, and FF process corners, their overall frequency responses remain highly consistent.
Figure 18. PSRR versus frequency from 1 Hz to 1 GHz under TT, FF, and SS corners at ILOAD = 400 mA.
4.3. Performance Comparison
Table 2 compares the performance of the proposed LDO with that of recently reported FVFbased LDOs. Since these designs differ in process technology, operating voltage, load-current range,
load capacitance, and other conditions, the reported metrics are intended only as an overall
performance reference. Implemented in a 130-nm CMOS process, the proposed LDO supports the
maximum load current of 400 mA and achieves a current efficiency of 99.78%. Under a 0–400 mA
load step with a 200-pF load capacitance, the proposed LDO exhibits a maximum output-voltage
deviation of 100.4 mV and a recovery time of 200 ns at the TT process corner, while achieving an
FOMC of only 0.113 ps. Compared with prior works, the relatively low FOMC indicates that the
proposed design achieves a favorable trade-off among load-current range, transient performance,
and quiescent power consumption.
Table 2. Performance comparison among recent FVF-based LDOs.
Parameter
Process
(nm)
[18]
[19]
[21]
[28]
[29]
[30]
This work*
180
90
130
65
180
180
130
LS FVF +
Architectur
e
FVF +
Dynamic
Biasing
Dynamic
Push-Pull
FVF
FVF +
NMCLFT
Class-AB FVF + ELTE Compensati
FVF + SSF
SSF
buffer
on +
Dynamic
Biasing
VIN/VOUT (V)
1.8/1.0
0.9–1.2 /
1.2–1.4 / 1.0
1.5 / 1.2
2–5 / 1.8
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
1.8–2.3 / 1.6
1.5 / 1.2
Preprints.org (www.preprints.org) | NOT PEER-REVIEWED | Posted: 20 August 2026
doi:10.20944/preprints202608.1439.v1
17 of 19
0.75
ILOAD (mA)
0.1-20
0.04-100
0-50
0-15
3-300
0-300
0-400
CL
2.8 pF
100 pF
0-100 pF
200 pF
5 pF
1 µF
200 pF
99.54%
99.998%
99.87%
99.98%
99.98%
99.991%
99.78%
0.95
0.4
48
-
0.55
2.8
2.1
88
6
6
-
1.94
62
24.3
Current
Efficiency
LNR
(mV/V)
LDR
(µV/mA)
PSRR
ΔVOUT (mV)
Recovery
-60.85 dB @ -51 dB @ 1
-25 dB @ 1 -43 dB @ 10 -60 dB @ 1 -47 dB @ 100 -50 dB @ 1
1 kHz
kHz
MHz
kHz
kHz
Hz
Hz
250
350
375
100
86
35.8
100.4
52
1200
120
-
400
950
200
0.163
0.0056
0.945
0.21
0.0065
10.7
0.113
time (ns)
FOMC (ps)
* The performance parameters of this work are presented at the TT corner unless otherwise specified.
The capacitance-normalized transient figure of merit, FOMC [31], adopted in Table 2 is defined
as:
CL ΔVOUT IQ
FOMC = (
ΔILOAD )2
.
(15)
Here, CL denotes the output load capacitance, ΔVOUT is the maximum transient deviation of the
output voltage from its steady-state value during a load-current step, taken as the larger magnitude
of the overshoot and undershoot, IQ is the quiescent current of the LDO, and ΔILOAD represents the
magnitude of the load-current step.
5. Conclusions
Targeting the digital power-supply requirements of X-ray detector readout ASICs, this work
presents an improved LS FVF-based LDO implemented in a 130-nm CMOS process. To improve the
transient response, an FVF-based fast loop is introduced in addition to the conventional main
regulation loop. To alleviate the mutual constraint on the DC operating points imposed by the shared
node in a conventional FVF, a level shifter is introduced to form the LS FVF. However, the fixed
biasing of the LS FVF limits the transient response speed of the LDO under large load-current
variations. To address this limitation, the CCDB and the PFA circuits are proposed to accelerate the
charging and discharging of the pass-transistor gate. In addition, to ensure system stability over a
wide load-current range, a dynamic pole-zero tracking compensation scheme is introduced in
conjunction with Miller compensation.
Post-layout simulation results demonstrate that the proposed LDO achieves fast transient
response and robust stability over a load current range of 0–400 mA and across different process
corners, validating the effectiveness of the proposed CCDB, PFA, and frequency-compensation
circuits. Moreover, the LDO achieves an FOMC of only 0.113 ps, indicating a favorable tradeoff among
load current range, transient performance, and quiescent power consumption, making it well suited
for X-ray detector readout chips and other on-chip power-supply applications subject to large and
rapid load-current variations.
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
Preprints.org (www.preprints.org) | NOT PEER-REVIEWED | Posted: 20 August 2026
doi:10.20944/preprints202608.1439.v1
18 of 19
References
1.
Cheng, J.; Gao, W.; Yu, C.; Wu, X. Design of a Pixel Readout ASIC Using Super Pixel Circuits With a BuiltIn LDO Regulator for Hybrid X-Ray Imaging Detectors. IEEE Trans. Circuits Syst. II Express Briefs 2024, 71,
3680–3684. https://doi.org/10.1109/TCSII.2024.3371098.
2.
Wang, M.; Qin, R.; Wang, J.; Zhang, X.; Gu, Z.; Li, B.; Yuan, X. A Serial-Timing Multi-Channel CMOS
Charge
Readout
ASIC
for
X-Ray
Detectors.
IEICE
Electron.
Express
2021,
18,
20210224.
https://doi.org/10.1587/elex.18.20210224.
3.
Goldschmidt, A.; Grace, C.; Joseph, J.; Krieger, A.; Tindall, C.; Denes, P. VeryFastCCD: A high frame rate
soft X-ray detector. Front. Phys. 2023, 11, 1285350. https://doi.org/10.3389/fphy.2023.1285350.
4.
Gao, W.; Li, X.; Liu, H.; Hu, Y. Design and performance of a 16-channel radiation-hardened low-noise frontend
readout
ASIC
for
CZT-based
hard
X-ray
imager.
Microelectron.
J.
2016,
48,
87–94.
https://doi.org/10.1016/j.mejo.2015.11.010.
5.
Manghisoni, M.; et al. A 32-Channel Readout ASIC for X-Ray Spectrometry and Tracking in the GAPS
Experiment. IEEE Trans. Nucl. Sci. 2024, 71, 96–105. https://doi.org/10.1109/TNS.2023.3336192.
6.
Zhan, S.; Li, X.-K.; Zhang, Y.; Feng, C.; Bo, C.-J. Design of a Low-Noise Low Dropout Regulator for CMOS
Pixel Sensors. IEEE Access 2024, 12, 102076–102084. https://doi.org/10.1109/ACCESS.2024.3419798.
7.
Oh, W.; Bakkaloglu, B. A CMOS Low-Dropout Regulator With Current-Mode Feedback Buffer Amplifier.
IEEE Trans. Circuits Syst. II Express Briefs 2007, 54, 922–926. https://doi.org/10.1109/TCSII.2007.901621.
8.
Lee, C.-K.; Lee, C.-H.; Jeon, Y.-J.; Oh, Y.-J.; Lee, B.; Hong, S.-W. A 92 ns Settling-Time Fast-Transient
Capacitor-Less LDO With a Stable Class B Bandwidth-Boosting Error Amplifier and an Improved Buffer
for
Mobile
Applications.
IEEE
Trans.
Ind.
Electron.
2024,
71,
11696–11700.
https://doi.org/10.1109/TIE.2023.3332996.
9.
Kao, S.-K.; Chen, J.-J.; Liao, C.-H.; Lu, Y.-J.; Wang, J.-C. A Fast-Transient Output-Capacitor-Less LowDropout Regulator With Direct-Coupled Slew Rate Enhancement. IEEE Access 2024, 12, 66539–66555.
https://doi.org/10.1109/ACCESS.2024.3398290.
10.
Zhou, R.; Liu, H.; Qi, W.; Tang, X.; Mai, S. A Fast-Transient Response Capacitor-Less FVF-LDO in 22-nm
CMOS Technology. In Proceedings of the 2022 IEEE Asia Pacific Conference on Circuits and Systems (APCCAS),
Shenzhen, China, 11–13 November 2022; pp. 91–94. https://doi.org/10.1109/APCCAS55924.2022.10090387.
11.
Li, Y.; Wang, L.; Wang, Y.; Wang, S.; Cui, M.; Guo, M. A Low-Power, Fast-Transient FVF-Based OutputCapacitorless LDO with Push–Pull Buffer and Adaptive Resistance Unit. Electronics 2023, 12, 1285.
https://doi.org/10.3390/electronics12061285.
12.
Liu, N.; Xie, Y.; Guo, J. A Fast Transient FVF-Based Output Capacitorless LDO with Self-Feedback Biasing.
Microelectron. J. 2023, 134, 105724. https://doi.org/10.1016/j.mejo.2023.105724.
13.
Jung, J.; et al. A 4 ns Settling Time FVF-Based Fast LDO Using Bandwidth Extension Techniques for HBM3.
IEEE J. Solid-State Circuits 2024, 59, 3307–3316. https://doi.org/10.1109/JSSC.2024.3430990.
14.
Albezzano, E.; Rocco, M.; Bertulessi, L. Efficiency Comparison of FVF-Based LDO Voltage Regulators for
Ultra-Fast Response Time. In Proceedings of the 2025 20th International Conference on PhD Research in
Microelectronics
and
Electronics
(PRIME),
Taormina,
Italy,
21–24
September
2025;
pp.
1–4.
https://doi.org/10.1109/PRIME66228.2025.11203323.
15.
Manikandan, P.; Bindu, B. A Review on Frequency Compensation and Transient Enhancement Schemes of
Flipped Voltage Follower LDO Regulators for SoC Applications. IEEE Access 2025, 13, 16150–16170.
https://doi.org/10.1109/ACCESS.2025.3532761.
16.
Cai, G.; Lu, Y.; Zhan, C.; Martins, R.P. A Fully Integrated FVF LDO With Enhanced Full-Spectrum Power
Supply
Rejection.
IEEE
Trans.
Power
Electron.
2021,
36,
4326–4337.
https://doi.org/10.1109/TPEL.2020.3024595.
17.
Zhu, J.; Wu, W.; Feng, H.; Mai, S.; Tang, X. A Fast Transient FVF LDO With Improved Gate Buffer and
Level Triggered Transient Enhancement Circuit in 22 nm Process. In Proceedings of the 2025 IEEE
International Symposium on Circuits and Systems (ISCAS), London, UK, 25–28 May 2025; pp. 1–4.
https://doi.org/10.1109/ISCAS56072.2025.11043382.
18.
Lu, Y.; Chen, M.; Wang, K.; Yang, Y.; Wang, H. A Capacitorless Flipped Voltage Follower LDO with Fast
Transient Using Dynamic Bias. Electronics 2022, 11, 3009. https://doi.org/10.3390/electronics11193009.
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
Preprints.org (www.preprints.org) | NOT PEER-REVIEWED | Posted: 20 August 2026
doi:10.20944/preprints202608.1439.v1
19 of 19
19.
Boanloo, M.M.; Yavari, M. A push-pull FVF based LDO voltage regulator with slew rate enhancement at
the gate of power transistor. Microelectron. J. 2022, 122, 105389. https://doi.org/10.1016/j.mejo.2022.105389.
20.
Pappiah, M.; Boby, B. Capacitor-less FVF low drop-out regulator with active feed-forward compensation
and
efficient
slew-rate
enhancer
circuit.
IET
Circuits
Devices
Syst.
2020,
14,
853–859.
https://doi.org/10.1049/iet-cds.2019.0495.
21.
Manikandan, P.; Bindu, B. A Nested Miller Compensation with a large feed-forward transconductor for
capacitor-less flipped voltage follower low dropout regulator. Microelectron. J. 2022, 129, 105608.
https://doi.org/10.1016/j.mejo.2022.105608.
22.
Xie, Y.; Wang, B.; Lyu, T.; Xiong, J.; Guo, J. A Power-Efficient Fast-Transient OCL-LDO with Adaptive
Super Source Follower and Active Capacitor Compensation Management. Microelectron. J. 2024, 151,
106349. https://doi.org/10.1016/j.mejo.2024.106349.
23.
Fan, H.; Feng, L.; Diao, X.; Xie, X.; Wang, C.; Li, G.; Wei, Q.; Qiao, F.; Feng, Q.; Bonizzoni, E. A Fast Transient
LDO Regulator Featuring High PSRR Over 100-kHz Frequency Range With Adaptive, Dynamic Biasing,
and Current Mode Feed-Forward Amplifier. IEEE Trans. Circuits Syst. II Express Briefs 2024, 71, 1764–1768.
https://doi.org/10.1109/TCSII.2023.3329247.
24.
Assaad, R.S.; Silva-Martinez, J. The Recycling Folded Cascode: A General Enhancement of the Folded
Cascode
Amplifier.
IEEE
J.
Solid-State
Circuits
2009,
44,
2535–2542.
https://doi.org/10.1109/JSSC.2009.2024819.
25.
Li, Y.; Han, K.; Yan, N.; Tan, X.; Min, H. Analysis and Implementation of an Improved Recycling Folded
Cascode Amplifier. J. Semicond. 2012, 33, 025002. https://doi.org/10.1088/1674-4926/33/2/025002.
26.
Zhao, X.; Fang, H.; Xu, J. DC Gain Enhancement Method for Recycling Folded Cascode Amplifier in Deep
Submicron
CMOS
Technology.
IEICE
Electron.
Express
2011,
8,
1450–1454.
https://doi.org/10.1587/elex.8.1450.
27.
Akbari, M. Single-stage fully recycling folded cascode OTA for switched-capacitor circuits. Electron. Lett.
2015, 51, 977–979. https://doi.org/10.1049/el.2015.1053.
28.
Engür, Y.; Shoaran, M. A 0.21-ps FOM Capacitor-Less Analog LDO with Dual-Range Load Current for
Biomedical Applications. In Proceedings of the 2023 IEEE Biomedical Circuits and Systems Conference (BioCAS),
Toronto, ON, Canada, 19–21 October 2023; pp. 1–5. https://doi.org/10.1109/BioCAS58349.2023.10389051.
29.
Gao, M.; Cai, X.; Gao, Y.; Xia, R.; Li, B. Fully Integrated 1.8 V Output 300 mA Load LDO with Fast Transient
Response. Electronics 2023, 12, 1409. https://doi.org/10.3390/electronics12061409.
30.
Qin, C.; Ki, W.-H.; Law, M.-K. A Wide Current Range and Fast Transient Flipped Voltage Follower Based
Low Dropout Regulator. In Proceedings of the 2024 IEEE Asian Solid-State Circuits Conference (A-SSCC),
Hiroshima, Japan, 18–21 November 2024; pp. 1–3. https://doi.org/10.1109/A-SSCC60305.2024.10848879.
31.
Assaad, R.S.; Silva-Martinez, J. A Fast-Transient-Response NMOS LDO with Wide Load-Capacitance
Range for Cross-Point Memory. Sensors 2022, 22, 9367. https://doi.org/10.3390/s22239367.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those
of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s)
disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or
products referred to in the content.
© 2026 by the author(s). Distributed under a Creative Commons CC BY license.
