Edexcel Physics Unit 2 Exam Paper 2024

*P75597A0136*
Turn over
P75597A
©2024 Pearson Education Ltd.
S:1/1/1/1/

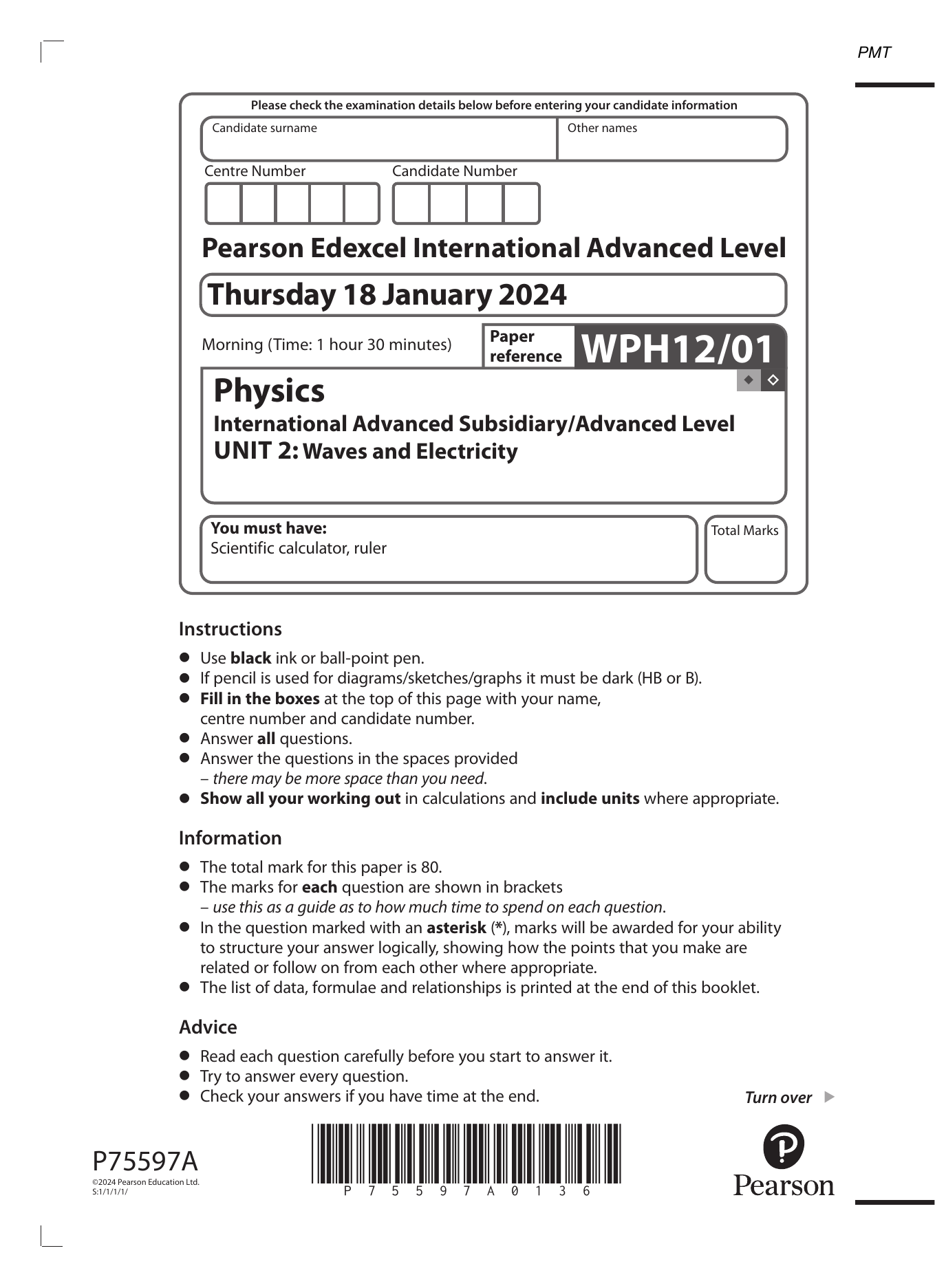

Please check the examination details below before entering your candidate information
Candidate surname Other names
Centre Number Candidate Number
Pearson Edexcel International Advanced Level
Thursday 18 January 2024
Morning (Time: 1 hour 30 minutes) WPH12/01
Paper
reference
Total Marks
Physics
International Advanced Subsidiary/Advanced Level
UNIT 2: Waves and Electricity
You must have:
Scientific calculator, ruler
Instructions
• Use black ink or ball-point pen.
• If pencil is used for diagrams/sketches/graphs it must be dark (HB or B).
• Fill in the boxes at the top of this page with your name,
centre number and candidate number.
• Answer all questions.
• Answer the questions in the spaces provided
– there may be more space than you need.
• Show all your working out in calculations and include units where appropriate.
Information
• The total mark for this paper is 80.
• The marks for each question are shown in brackets
– use this as a guide as to how much time to spend on each question.
• In the question marked with an asterisk (*), marks will be awarded for your ability
to structure your answer logically, showing how the points that you make are
related or follow on from each other where appropriate.
• The list of data, formulae and relationships is printed at the end of this booklet.
Advice
• Read each question carefully before you start to answer it.
• Try to answer every question.
• Check your answers if you have time at the end.
PMT

*P75597A0236*
DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA
DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA
2
SECTION A
Answer ALL questions.
For questions 1–10, in Section A, select one answer from A to D and put a cross in the box . If you
change your mind, put a line through the box and then mark your new answer with a cross .
1 A ray of light in air is incident on a glass surface. The angle of incidence is less than the
critical angle.
Which of the following describes what happens to the ray of light?
A partially reflected and partially transmitted
B refracted away from the normal
C totally internally reflected
D transmitted along the normal
(Total for Question 1 = 1 mark)
2 There is an increase in the intensity of light incident on a light dependent resistor
(LDR). This causes a change in the number of conduction electrons and a change in the
resistance of the LDR.
Which row of the table describes these changes?
A
B
C
D
(Total for Question 2 = 1 mark)
Number of conduction electrons Resistance of LDR
decreases decreases
decreases increases
increases decreases
increases increases
PMT

*P75597A0336* Turn over
3
DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA
DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA
3 An electron has a de Broglie wavelength of 3.5 × 10–10 m.
Which of the following expressions gives the velocity of the electron in m s–1?
A 66310
911103510
34
31 10
.
..
B
66310
35 10
34
10
.
.
C
911103510
66310
31 10
34
..
.
D 35 10
66310
10
34
.
.
(Total for Question 3 = 1 mark)
4 Which of the following describes a change in energy of 1 eV?
A A charge of 1 C is accelerated across a potential difference of 1 V.
B A charge of 1 C passes a point in a time of 1 s.
C An electron is accelerated across a potential difference of 1 V.
D There is a current of 1 A for a time of 1 s.
(Total for Question 4 = 1 mark)
PMT

*P75597A0436*
DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA
DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA
4
5 The diagram shows a 1.5 V cell in a circuit with two resistors. The cell has negligible
internal resistance.
V
1.5 V
5 Ω
10 Ω
The switch is closed.
What is the reading on the voltmeter?
A 0.15 V
B 0.50 V
C 1.00 V
D 1.50 V
(Total for Question 5 = 1 mark)
PMT

*P75597A0536* Turn over
5
DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA
DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA DO NOT WRITE IN THIS AREA
6 A uniform wire is attached to a metre rule. The wire is connected in a circuit as shown.
d
Vmetre rule
The distance d between the connections to the voltmeter is increased. The reading V on
the voltmeter changes.
Which graph shows the relationship between V and d?
A d
V
0
B d
V
0
C d
V
0
D d
V
0
(Total for Question 6 = 1 mark)
