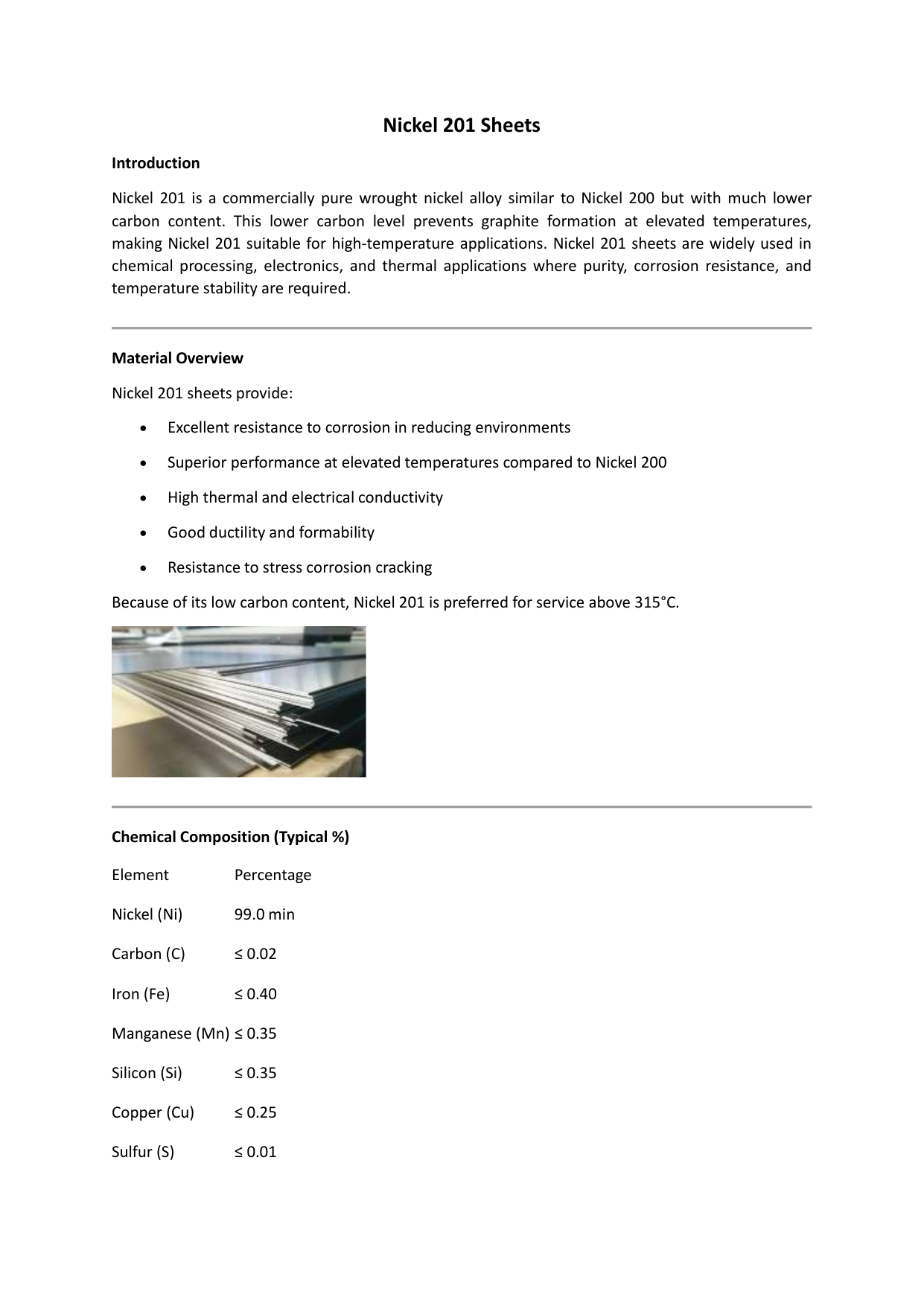

Nickel 201 Sheets

Nickel 201 Sheets
Introduction
Nickel 201 is a commercially pure wrought nickel alloy similar to Nickel 200 but with much lower
carbon content. This lower carbon level prevents graphite formation at elevated temperatures,
making Nickel 201 suitable for high-temperature applications. Nickel 201 sheets are widely used in
chemical processing, electronics, and thermal applications where purity, corrosion resistance, and
temperature stability are required.
Material Overview
Nickel 201 sheets provide:
• Excellent resistance to corrosion in reducing environments
• Superior performance at elevated temperatures compared to Nickel 200
• High thermal and electrical conductivity
• Good ductility and formability
• Resistance to stress corrosion cracking
Because of its low carbon content, Nickel 201 is preferred for service above 315°C.
Chemical Composition (Typical %)
Element
Percentage
Nickel (Ni)
99.0 min
Carbon (C)
≤ 0.02
Iron (Fe)
≤ 0.40
Manganese (Mn)
≤ 0.35
Silicon (Si)
≤ 0.35
Copper (Cu)
≤ 0.25
Sulfur (S)
≤ 0.01

Mechanical Properties
Property
Value
Tensile Strength
345 MPa (minimum)
Yield Strength (0.2% Offset)
100 MPa (minimum)
Elongation
40% minimum
Hardness
Approx. 70 HRB
Mechanical properties may vary depending on thickness and supply condition.
Physical Properties
Property
Value
Density
8.89 g/cm³
Melting Point
1440°C
Thermal Conductivity
High
Electrical Conductivity
High
Magnetic Properties
Ferromagnetic
Weldability & Fabrication
Weldability
• Excellent weldability using TIG, MIG, SMAW, and resistance welding
• Matching filler metals recommended
• No preheating required
Forming & Machining
• Excellent ductility allows easy cold and hot forming
• Machining should be performed using sharp tools and controlled speeds
Applications
Nickel 201 sheets are commonly used in:
• Chemical processing equipment

• Heat exchangers
• Food processing equipment
• Electronic and electrical components
• Aerospace components
• Furnace parts and high-temperature equipment
• Caustic handling systems
Advantages of Nickel 201 Sheets
• Very low carbon content
• Suitable for high-temperature applications
• Excellent corrosion resistance
• High thermal and electrical conductivity
• Easy fabrication and welding
• Long service life
Testing & Quality Assurance
• Chemical composition analysis
• Mechanical property testing
• Dimensional inspection
• Surface and visual inspection
• Eddy current testing (on request)
Conclusion
Nickel 201 sheets are the preferred choice for applications requiring high-purity nickel performance
at elevated temperatures. Their low carbon content, excellent corrosion resistance, and thermal
stability make them ideal for demanding industrial and chemical environments.
