CATALOG
SafeRing/SafePlus 12-24kV

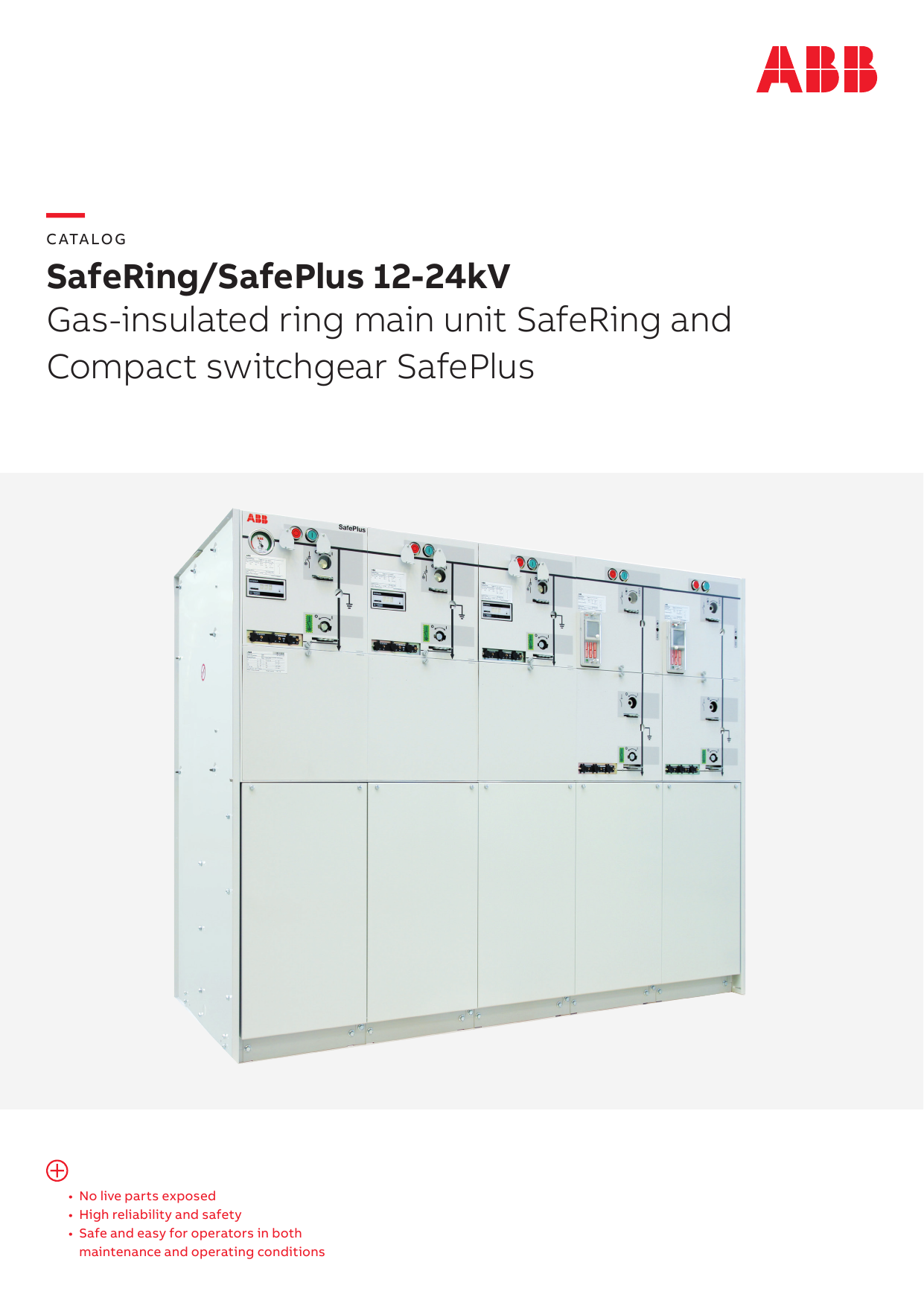

Gas-insulated ring main unit SafeRing and
Compact switchgear SafePlus
• No live parts exposed
• High reliability and safety
• Safe and easy for operators in both
maintenance and operating conditions
3
DISTRIBUTION SOLUTIONS
—
Table of contents
005 – 008 Introduction
009 – 009 Design philosophy
010 – 010 Arrangement
011 – 012 Manufacturing
013 – 018 Safety
019 – 023 SafeRing
024 – 050 SafePlus
051 – 051 Current transformers
052– 052 Measuring transformers
053– 053 Combisensors
054– 056 Sensors
057– 059 Mechanism
060– 060 Cable bushing
061– 065 Cable termination
066– 066 Cable test bushings
067– 068 Extension of switchgear
069– 069 Base frame
070– 070 Low voltage compartment/Top entry box
071– 072 Motor operation
073– 073 Transformer protection
074 – 077 Fuse-links
078– 084 Protection relays and control products
4SAFERING / SAFEPLUS 12-24KV
085– 086 Voltage indicators
087– 089 Short-circuit and earth-fault indicators
090– 091 Manometers/Pressure indicators
092– 093 Key interlock
094– 098 SafeRing/SafePlus Digital
099– 100 Marine applications
101– 101 Low version switchgear
102– 103 Battery back-up solutions
104– 104 Outdoor enclosure
105–112 Dimensions
113– 122 Technical data
123– 123 Environmental certification
5
DISTRIBUTION SOLUTIONS
—
Introduction
SafeRing and SafePlus switchgear for secondary distribution were developed
by ABB in Skien and introduced to the markets in 2000, replacing the previous
SF6 insulated products RGC and CTC. The installed base of SafeRing/SafePlus
is more than 150 000 switchgears in more than 100 countries all over the world.
The switchgear portfolio is constantly under development
to adjust to new market requirements and customers’
needs. SafeRing is available in standard configurations
based on a high-volume production. These standardized
RMUs, which are the most required configurations within
a distribution network, can be extendable upon request.
SafePlus is the switchgear version of SafeRing with
flexibility, modularity and higher ratings.
Customer benefits
• A wide range of functional units, easy to extend
and upgrade
• Up to five modules in one common gas tank
• No live parts exposed
• Fully sealed for lifetime
• Climatically independent
• Designed and tested according to IEC
• High reliability and safety
• Compact dimensions
• Safe and easy for operators in both maintenance
and operating conditions
• All operations are carried out from the front of the
switchgear
