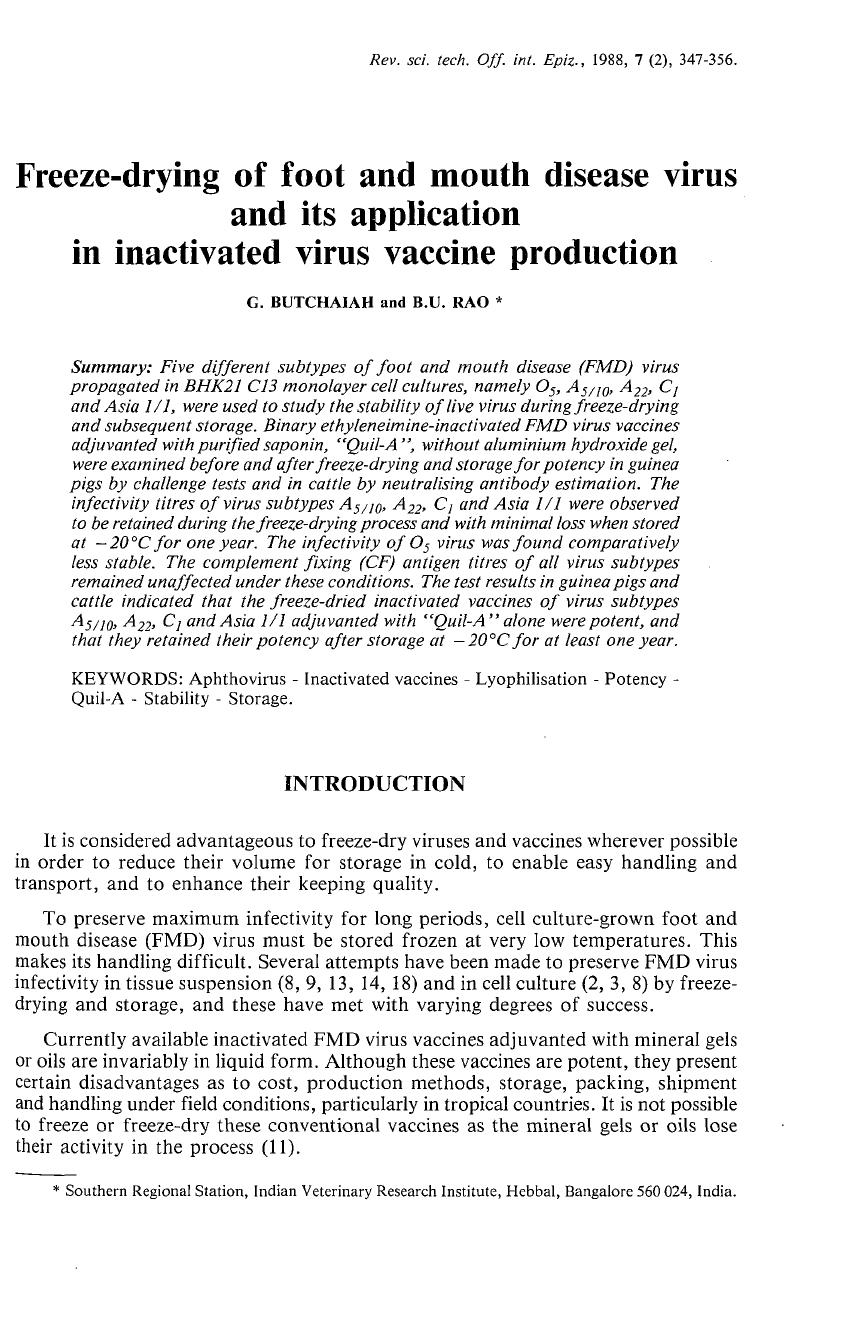

Rev. sci. tech. Off. int. Epiz., 1988, 7 (2), 347-356. Freeze-drying of foot and mouth disease virus and its application in inactivated virus vaccine production G. B U T C H A I A H and B . U . R A O * Summary: Five different subtypes of foot and mouth disease (FMD) virus propagated in BHK21 C13 monolayer cell cultures, namely 0 , A , A , C¡ and Asia 1/1, were used to study the stability of live virus during freeze-drying and subsequent storage. Binary ethyleneimine-inactivated FMD virus vaccines adjuvanted with purified saponin, "Quil-A", without aluminium hydroxide gel, were examined before and after freeze-drying and storage for potency in guinea pigs by challenge tests and in cattle by neutralising antibody estimation. The infectivity titres of virus subtypes A , A , C1 and Asia 1/1 were observed to be retained during the freeze-drying process and with minimal loss when stored at —20°C for one year. The infectivity of 0 virus was found comparatively less stable. The complement fixing (CF) antigen titres of all virus subtypes remained unaffected under these conditions. The test results in guinea pigs and cattle indicated that the freeze-dried inactivated vaccines of virus subtypes A /10, A , C1 and Asia 1/1 adjuvanted with "Quil-A " alone were potent, and that they retained their potency after storage at -20°C for at least one year. 5 5/!0 5/!0 22 22 5 5 22 KEYWORDS: Aphthovirus - Inactivated vaccines - Lyophilisation - Potency Quil-A - Stability - Storage. INTRODUCTION It is considered advantageous to freeze-dry viruses and vaccines wherever possible in order to reduce their volume for storage in cold, to enable easy handling and transport, and to enhance their keeping quality. To preserve m a x i m u m infectivity for long periods, cell culture-grown foot and mouth disease (FMD) virus must be stored frozen at very low temperatures. This makes its handling difficult. Several attempts have been made to preserve F M D virus infectivity in tissue suspension (8, 9, 13, 14, 18) and in cell culture (2, 3, 8) by freezedrying and storage, and these have met with varying degrees of success. Currently available inactivated F M D virus vaccines adjuvanted with mineral gels or oils are invariably in liquid form. Although these vaccines are potent, they present certain disadvantages as to cost, production methods, storage, packing, shipment and handling under field conditions, particularly in tropical countries. It is not possible to freeze or freeze-dry these conventional vaccines as the mineral gels or oils lose their activity in the process (11). * Southern Regional Station, Indian Veterinary Research Institute, H e b b a l , Bangalore 560 024, India. 348 The adjuvant activity of crude saponin (15) or purified saponin, " Q u i l - A " (5, 6,7), was demonstrated with inactivated F M D virus vaccines when incorporated alone or in combination with aluminium hydroxide gel. However, n o attempt seems to have been m a d e so far to develop freeze-dried F M D virus vaccine with suitable inactivants and adjuvants. T h e present study considers the stability of F M D virus after freeze-drying and storage and also explores the possibility of developing simple, freeze-dried, binary ethyleneimine (BEI) inactivated F M D virus vaccines incorporating " Q u i l - A " alone as adjuvant. The results of assay of live F M D virus and the potency test results of inactivated F M D virus vaccines before and after freeze-drying and subsequent storage are reported. MATERIALS A N D METHODS Virus strains Vaccine strains of F M D virus subtypes 0 , A , A , Q and Asia 1/1 used for vaccine production at the Indian Veterinary Research Institute were employed in this study. 5 5 / I 0 2 2 Virus propagation The virus was used at the sixth passage level in BHK21 C13 monolayer (Glasgow) cells grown in Eagle's medium in roller bottles. After harvesting from infected cell cultures the virus was treated with chloroform (1%) and clarified by centrifugation at 1,000 g for 15 minutes at + 4 ° C a n d / o r filtration through clarifying Seitz filter pads. Virus inactivation The virus was inactivated by 0.001 M binary ethyleneimine (BEI) for 20 hours at 37°C as described by Bahnemann (1). The action of BEI was neutralised by the addition of cold sodium thiosulphate ( 2 % ) . The virus inactivation was ascertained in BHK21 C13 monolayer cells. Additive A n additive consisting of 50 g lactalbumin hydrolysate and 100 g sucrose in 1 litre of distilled water was prepared and the p H was adjusted to 7.4 with 1M tris buffer. It was then sterilised by filtration t h r o u g h 0.45 µm millipore m e m b r a n e and stored at + 4 ° C . Adjuvant Purified saponin " Q u i l - A " (4), supplied by M / s . Superfos, D e n m a r k as a lyophilised product, was used alone as adjuvant. A 10% stock solution of " Q u i l - A " was prepared and sterilised by filtration through 0.45 µm millipore m e m b r a n e . 349 Vaccine preparation The inactivated viral antigen of each subtype was separately mixed with an equal amount of the additive. Simple monovalent vaccines were prepared by the addition of the adjuvant " Q u i l - A " (400 µ g / m l ) without aluminium hydroxide. After mixing, the p H of the vaccine was adjusted to 7.4 with tris buffer if required. Freeze-drying procedure The monovalent vaccine of each virus subtype was dispensed in 1.0 ml quantities into 6.5 ml glass vials a n d stoppered with vented butyl rubber stoppers. The vaccine was then rapidly pre-frozen at - 8 0 ° C . T h e partially stoppered vaccine vials in accessory trays were transferred immediately t o the acrylic chamber of the freezedryer (Model E F 4 Modulyo of Edwards High V a c u u m , West Sussex, England) when the condenser chamber temperature was - 45°C. The vacuum p u m p was then started, and drying occurred for a b o u t 19 h o u r s . At the end of the freeze-drying cycle, the vacuum was 3 X 10- m b . T h e temperature of the product varied from - 8 0 ° C to 25°C (ambient) during the period of freeze-drying. The vials were closed under vacuum with the rubber stoppers and sealed with aluminium caps. 2 The live virus of each subtype was also freeze-dried in a similar manner after mixing with an equal a m o u n t of the additive. Vials were stored at - 2 0 ° C and + 4 ° C until testing. T h e freeze-dried product was reconstituted by adding 1 ml of sterile distilled water to each vial just before assay. Estimation of residual moisture content The residual moisture content of the final freeze-dried product was determined by placing at least three samples from each batch in a vacuum desiccator over phosphorous pentoxide at ambient temperature until constant weight was achieved. The loss in weight of the sample was then calculated. Virus assay The freeze-dried product was assayed for complement fixing (CF) antigen a n d / o r infectivity by plaque titration, as follows: - Complement fixing antigen titration: The C F viral antigen was titrated in a micro-test routinely used at this Institute employing homologous virus type specific guinea pig i m m u n e serum, three units of 5 0 % haemolytic doses of guinea pig complement and sheep haemolytic system. The titres were expressed as C F U / m l . - Plaque titration: The virus was assayed for plaque forming units (PFU) in monolayer cultures of BHK21 C13 cells grown in 25 c m plastic tissue culture flasks. Serial 10-fold dilutions of the virus were inoculated onto the cultures using at least three cultures for each dilution. After one hour virus absorption at 37°C, 0.8% agarose overlay medium was placed on the cell sheet and allowed to set. The cultures were incubated at 37°C in an inverted position for about 66 h o u r s . They were then fixed in 10% formaldehyde solution in normal saline and stained with crystal violet solution after removal of the fixative and overlay m e d i u m . The plaques were counted and titres expressed as l o g P F U / m l . 2 10 350 Vaccine potency tests The monovalent vaccines were tested before (shortly after formulation) and after freeze-drying and subsequent storage for one year at - 2 0 ° C . The vaccine potency was assayed in guinea pigs and cattle. Healthy adult guinea pigs of required body weight were vaccinated with a dose of 0.25 ml subcutaneously and challenged with guinea pig adapted virulent virus at 21 days post-vaccination following the C-index method of Lucam et al. (12). As for cattle, groups free from F M D virus neutralising antibodies in their sera were vaccinated subcutaneously with a 2.5 ml dose of monovalent vaccine. The animals were bled at different periods up to 3 months after vaccination for collection of serum. They were also examined for any possible local or systemic reaction after vaccination. Serum samples were assayed for neutralising antibody levels in a micro-test employing two-fold serial serum dilutions, 100 T C I D of homologous F M D virus subtype and 1B-RS-2 cells in 96-well plastic tissue culture plates. The 5 0 % end-points were calculated according to the method of Reed and Muench (17). The antibody titres were expressed as l o g S N values. 5 0 10 5 0 RESULTS A N D DISCUSSION Stability of FMD virus during freeze-drying and storage Initially, the effect of freeze-drying and subsequent storage on live F M D virus was studied. At least three separate experiments for each virus subtype were conducted. A minimum of three samples at a time from each batch of virus were used for assay. The residual moisture content in each batch of freeze-dried product was found to be less than 2 % . The results presented in Table I are the mean values of assays from all experiments carried out with a single virus subtype. The survival rates after freeze-drying for different subtypes varied from 4 6 % to 6 2 % , with higher retention of infectivity when stored for over one year at - 2 0 ° C rather t h a n + 4 ° C . The stability of O virus infectivity during freeze-drying and storage was comparatively low. In contrast, the C F antigen titres of all virus subtypes remained more or less unaffected both during the freeze-drying process and subsequent storage, irrespective of the storage temperature. 5 Earlier investigators have recorded their experiences and varying degrees of success in freeze-drying and storing crude F M D virus in the form of infected mouse muscle (18), cattle tongue epithelium (13, 14), tissue culture and tissue suspension virus (3, 8). Purified virus was found to degrade rapidly during freeze-drying and storage (10). Occasional values of virus assay found out of line in the present study (such as increased virus titres after freeze-drying or subsequent storage; Table I) could be due to test variation. Such deviations from the straight line could also be due to uneven drying of the product if the virus assay titres at the time interval before and after were in line (16). Virus subtype d vo CN 1 — 1 o VO Os ? O TH en CM en # en <N CN m en CN PFU *—i O CFU vo 6.50 '—1 4.79 5.05 CN < r~ 00 en CN en i—i CN o O 6.37 CFU PFU 5.30 93 5.19 to 5.74 en 5.87 en Os 5.85 O 5.89 ro ?o r- en Os 10 Figures in parentheses indicate virus survival rates. PFU = Log plaque forming units/ml. CFU = Complement fixing units/ml. CFU en <N 80 4.06 en CN r-- 4.65 oo oo 6.14 3.94 3.65 4.60 <N 5.40 >—< 5.86 o CN en CN 5.95 en CN r- 6.04 en es en <N 6.40 00 6.19 (59%) 6.22 r- 00 6.42 5.46 en CN 6.43 r00 Asia 1/1 O vo 6.43 6.80 o VO TH 6.77 6.89 o vo 6.87 6.49 O SO vo 7.14 5.87 6.26 O PFU oo Os CFU 6.83 7.00 O en en 7.20 en O 7.10 en 80 so en en 73 73 3.65 4.08 fn 4.35 so 4.76 U OS VO 80 4.33 4.46 o oo 4.73 OS 5.05 rH 7.31 CFU Storage tennperature and period in months -20°C o Tt M TH PFU 5.98 PFU After freezedrying + 5.60 (46%) 93 Before freezedrying en Virus assay Virus titres Stability of live foot and mouth disease virus during freeze-drying and subsequent storage TABLE I 351 en Os .—< Os o 352 By the methods of assay employed in this study, for virus titres to be significantly different from each other, two end-points would have to differ by more than 0.5 l o g P F U / m l in the case of infectivity titres, and by more than twice the values of C F U / m l in the case of C F antigen titres. This difference was not apparent with most of the freeze-dried preparations of A , A , C1 and Asia 1/1 virus subtypes stored at - 2 0 ° C . 10 5 / 1 0 2 2 In conclusion, the cell culture-grown F M D virus could withstand the freeze-drying process, and it should be stored at - 2 0 ° C rather t h a n + 4 ° C to retain maximum infectivity. By contrast, C F antigen titres remained more or less constant irrespective of the storage temperature. The loss in virus infectivity titre rather than immunogenicity might occur during freeze-drying and subsequent storage. Since the infectivity of F M D virus was retained with minimal loss in the present study, the immunogenicity would not be adversely affected. This was verified by testing the potency of freeze-dried inactivated F M D virus vaccines in animals. Potency of freeze-dried inactivated FMD virus vaccines L a b o r a t o r y assay showed that the virus subtypes A , A , C1 and Asia 1/1 incorporated into the vaccines had good titres. Their infectivity titres (log P F U / m l ) were 7.45, 7.32, 6.45 and 6.50, and C F titres ( C F U / m l ) were 160, 160, 320 and 160 respectively. O virus titres were relatively low with an infectivity titre of 6.20 and C F titre of 80. 5 / 1 0 2 2 10 5 In the present study, binary ethyleneimine was used instead of formaldehyde in F M D virus inactivation for preparation of vaccines without aluminium hydroxide gel. Table II summarises the results of potency tests in guinea pigs of F M D vaccines before and after freeze-drying and storage. Monovalent vaccines of virus subtypes A , A , C1 and Asia 1/1 adjuvanted with " Q u i l - A " alone, which were in aqueous form before freeze-drying, protected guinea pigs with high C-index values. These results agree with those of other workers who reported that crude saponin (15) or purified saponin, " Q u i l - A " (5, 6, 7), when incorporated into inactivated F M D virus vaccines of types O, A and C as adjuvant without aluminium hydroxide gel, was able to stimulate antibody production in cattle at levels comparable to mineral oil or geladjuvanted vaccines that could confer protection against the disease. 5 / 1 0 2 2 However, our earlier studies (unpublished data) showed that such aqueous vaccines without aluminium hydroxide gel rapidly deteriorated, with substantial loss in potency when stored at usual refrigeration temperatures for more than a few days. Storing these vaccines by freezing at low temperatures makes their handling very difficult. In the current study, we therefore tried to improve their keeping quality by freezedrying. The potency of the vaccines of virus subtypes A , A , Q and Asia 1/1 seems to be retained without loss during the freeze-drying process. In fact, these freezedried vaccines retained their potency even after storage for at least one year at - 20°C. Thus, they met the requirements of potency in guinea pigs when tested by the method of Lucam et al. (12). Since their C-index values were within the 9 5 % confidence limits of the original values for the same vaccines before freeze-drying, their original potency should be considered as retained without significant loss after freeze-drying and storage (Table II). 5 / 1 0 2 2 353 TABLE Results II of potency tests in guinea pigs of inactivated FMD vaccines before and after freeze-drying and storage virus Potency in guinea pigs (C-index) Vaccine virus subtype O5 Before freeze-drying After freeze-drying Freeze-dried and stored at - 20°C for 12 months 1.78 (1.48-2.14) 1.23 (1.03-1.48) not done A 5/10 4.10 (3.42-4.92) 4.00 (3.33-4.80) 3.83 (3.19-4.60) A 22 3.65 (3.04-4.38) 3.59 (2.99-4.31) 3.50 (2.92-4.20) 4.10 (3.42-4.92) 4.25 (3.54-5.10) 3.88 (3.23-4.66) 2.30 (1.92-2.76) 2.40 (2.0-2.88) 2.65 (2.21-3.18) c1 Asia 1/1 Figures in parentheses indicate 95% confidence limits. The apparent to 4.25 and that freeze-dried Asia variation (Table increase in the potency of C1 vaccine from C-index value of 4.10 of Asia 1/1 vaccine from 2.30 to 2.40 after freeze-drying and of 1/1 vaccine from 2.40 to 2.65 after storage could be due to biological II). None of the vaccinated cattle developed any adverse reaction. Table III summarises the neutralising antibody levels in cattle over an observation period of 3 months after vaccination with a single dose of the freeze-dried monovalent F M D vaccine. There was good antibody response in cattle vaccinated with A , A , Q and Asia 1/1 vaccines with titres ranging from 1.97 to 2.82 at 30 days post-vaccination. Furthermore, no substantial loss in antibody titres was observed at the end of 3 months with the titres ranging from 1.71 to 2.46. The antibody response in cattle at 30 days post-vaccination appears to be uniform since the values for twice the standard deviation lie in the range of 0.42-0.74. The antibody response to O vaccine was comparatively low with a maximum titre of only 1.38 at 15 days post-vaccination. 5 / 1 0 2 2 5 The poor potency of O vaccine could be due to inadequate viral antigen incorporation into the vaccine, degradation of antigen during freeze-drying or t o the possibility that " Q u i l - A " alone was not an effective adjuvant for this virus antigen. 5 In conclusion, the freeze-dried and stored F M D vaccines incorporating BEIinactivated virus and " Q u i l - A " as adjuvant had a potency well above the minimum acceptable level. These vaccines are simple, cheap, easy to c o m p o u n d , store, pack and transport. It is also possible to reduce the dose of the vaccine by reconstitution of the freeze-dried product with an appropriately reduced quantity of the diluent. Such freeze-dried vaccines are easy to handle and would be more acceptable in the field provided their efficacy was not markedly inferior to the conventional liquid vaccines adjuvanted with mineral gel or oil. 354 T A B L E III Neutralising antibody titres in cattle after with freeze-dried inactivated FMD virus Vaccine virus subtype A 5/10 A 22 C , Asia 1/1 Postvaccination period (days) vaccination vaccines Neutralising antibody titres (log10 SN ) 50 Group mean Standard deviation 0 15 30 60 90 <0.90 1.38 1.32 1.26 1.14 0.20 0.16 0.18 0.13 0 15 30 60 90 <0.90 2.70 2.78 2.61 2.53 0.21 0.21 0.17 0.24 0 15 30 60 90 <0.90 2.67 2.70 2.63 2.46 0.24 0.21 0.21 0.20 0 15 30 60 90 <0.90 2.82 2.82 2.70 . 2.52 0.22 0.22 0.18 0.22 0 15 30 60 90 <0.90 2.13 1.97 1.74 1.71 0.20 0.37 0.36 0.41 Number of cattle tested _ 5 _ 6 _ 6 _ 5 _ 5 ACKNOWLEDGEMENTS The authors wish to thank the Director of the Institute for encouragement and providing facilities to carry out this work. * 355 LYOPHILISATION DU VIRUS APHTEUX : APPLICATION A LA PRODUCTION DE VIRUS-VACCINS INACTIVÉS. - G. Butchaiah et B.U. Rao. Résumé : Les auteurs ont utilisé cinq sous-types différents du virus aphteux (0¡, A / , A22, C1 et Asia 1/1), multipliés en culture de cellules BHK21 C13 en monocouche, pour étudier l'effet de la lyophilisation et du stockage des virus vivants sur leur stabilité. Des virus-vaccins anti-aphteux, inactivés par l'éthylèneimine binaire et adjuvés avec la saponinepurifiée «Quil-A», sans gel d'hydroxyde d'aluminium, ont été examinés du point de vue de leur activité, avant et après lyophilisation et stockage, par épreuve virulente sur cobayes et évaluation des anticorps neutralisants chez les bovins. Il a été observé que les sous-types du virus A /10, A , C1 et Asia 1/1 conservaient leurs titres infectants au cours de la lyophilisation, et que ces titres baissaient de façon minimale après un an de stockage à -20°C. Comparativement, l'infectivité du virus O s'est montrée moins stable. Pour tous les sous-types du virus, les titres antigéniques fixant le complément sont restés inchangés dans ces conditions. Les résultats des épreuves sur cobayes et sur bovins ont montré que les vaccins inactivés lyophilisés des sous-types A , A , C1 et Asia 1/1, ayant «Quil-A» pour seul adjuvant, étaient actifs et le restaient après stockage à —20°Cpendant au moins un an. 5 10 5 22 5 5 / 1 0 22 MOTS-CLÉS : Activité - Aphthovirus - Lyophilisation - Quil-A - Stabilité Stockage - Vaccins inactivés. * * * LIOFILIZACIÓN DEL VIRUS AFTOSO: APLICACIÓN EN LA PRODUCCIÓN DE VIRUS-VACUNAS INACTIVADAS. - G. Butchaiah y B.U. Rao. Resumen: Los autores utilizaron cinco subtipos diferentes de virus aftosos (O5, A , A , C1 y Asia 1/1), multiplicados en cultivos de células BHK21 C13 en monocapa, para estudiar el efecto producido por la liofilización y el almacenamiento de los virus vivos en su estabilidad. Se examinaron virus-vacunas antiaftosas, inactivados por etileno-imina binario, con saponina purificada «Quil-A» como adyuvante y sin hidróxido de aluminio, desde el punto de vista de su actividad, antes y después de la liofilización y almacenamiento, mediante prueba virulenta en cobayos y evaluación de anticuerpos neutralizantes en los bovinos. Se observó que los subtipos del virus A , A , C1 y Asia 1/1 conservaban sus títulos infectantes durante la liofilización y que estos títulos bajaban en grado mínimo al cabo de un año de almacenamiento a —20°C. Comparativamente, la infecciosidad del virus O se reveló menos estable. En todos los subtipos del virus, los títulos antigénicos que fijaban el complemento conservaron estas condiciones intactas. Los resultados de las pruebas en cobayos y bovinos demostraron que las vacunas inactivadas liofilizadas de los subtipos A , A , C1 y Asia 1/1, con «Quil-A» como único adyuvante, eran activas y seguían siéndolo después de un almacenamiento a -20°C de por lo menos un año. 5/l0 22 5/10 22 s 5/10 22 PALABRAS CLAVE: Actividad - Aftovirus - Almacenamiento - Estabilidad Liofilización - Quil-A - Vacunas inactivadas. * * * 356 REFERENCES 1. BAHNEMANN H.G. (1975). - Binary ethylenimine as an inactivant for foot and mouth disease virus and its application for vaccine production. Arch. Virol., 47, 47-56. 2. BARLOW D.E. (1972). - The effects of various protecting agents on the inactivation of foot and mouth disease virus in aerosols and during freeze-drying. J. gen. Virol., 17, 281-288. 3. CECCARELLI A. (1960). - Conservazione a basse temperature del virus aftosa cultivo in vitro cellule renale. Zooprofilassi, 15, 33-36. 4. DALSGAARD K. (1974). - Saponin adjuvants. Isolation of a substance from Quillaja Saponaria Molina with adjuvant activity in foot and mouth disease vaccine. Arch. ges. Virusforsch., 44, 243-254. 5. DALSGAARD K. (1981). - The application of the saponin adjuvant Quil-A in foot and mouth disease vaccines. In Report on the Symposium on vaccine adjuvants, London, 30 March 1981, organised by M/s. Superfos, Denmark, 1-4. 6. DALSGAARD K. & JENSEN M.H. (1977). - The adjuvant activity of "Quil-A" in trivalent vaccination of cattle and guinea pigs against foot and mouth disease. Acta vet. scand., 18, 367-373. 7. DALSGAARD K., JENSEN M . H . & SORENSEN K.J. (1977). - Evaluation of the adjuvant 8. 9. 10. 11. "Quil-A" in the vaccination of cattle against foot and mouth disease. Acta vet. scand., 18, 349-360. FELLOWES O.N. (1965). — Freeze-drying of foot and mouth disease virus and storage stability of the infectivity of dried virus at 4°C. Appl. Microbiol., 13 (3), 496-499. FELLOWES O.N. (1968). - Comparison of cryobiological and freeze-drying characteristics of foot and mouth disease virus and of vesicular stomatitis virus. Cryobiology, 4, 223-231. FELLOWES O.N. (1968). - Stability of purified foot and mouth disease virus after freezedrying and storage. Cryobiology, 5 (3), 234-237. LEI J.C. (1981). - Aluminium hydroxide gel: useful guidelines for adsorption. In Report on the Symposium on vaccine adjuvants, London, 30 March 1981, organised by M/s. Superfos, Denmark, 7-10. 12. LUCAM F., FEDIDA M. & DANNACHER G. (1964). - Mesure de l'immunité anti-aphteuse post-vaccinale du bœuf, par épreuve sur le cobaye. Rev. Méd. vét., 115, 225-245. 13. LUDWIG C. (1961). - Die Gefriertrocknung des Maul- und Klauenseuche (MKS) Virus. Arch. exp. VetMed., 15, 482-483. 14. LUDWIG C. (1964). - Die Konservierung des Virus der Maul- und Klauenseuche durch die Gefriertrocknung. Mh. VetMed., 19, Sonderheft No. 44. 15. MOWAT G.N. (1974). - A comparison of the adjuvant effects of saponin and oil emulsions in foot and mouth disease vaccines for cattle. Bull. Off. int. Epiz., 81 (11-12), 1319-1334. 16. RANDALL R., BINN L.N. & HARRISON V.R. (1964). - Immunisation against Rift Valley fever virus. J. Immunol., 93, 292-299. 17. REED L.J. & MUENCH H . A . (1938). - A simple method for estimating fifty per cent endpoints. Am. J. Hyg., 27, 493-497. 18. SERGEEV V.A. (1958). - Concerning the method of drying foot and mouth disease virus strains, types O, A and C. Vop. Virusol, 6, 367-368.
