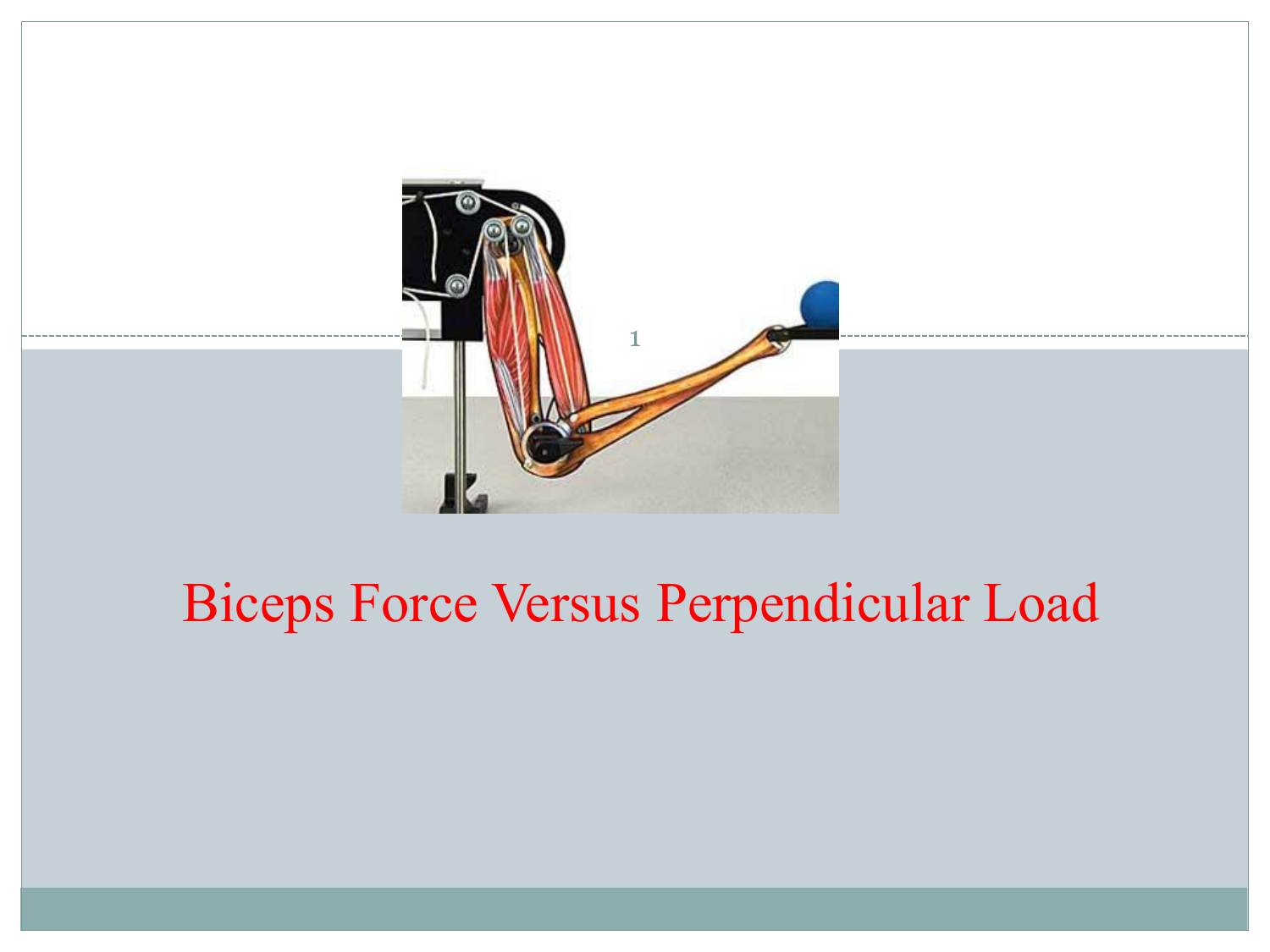

Biceps Force Versus Perpendicular Load
1
Determination the relation between the biceps force an the load.
Purpose

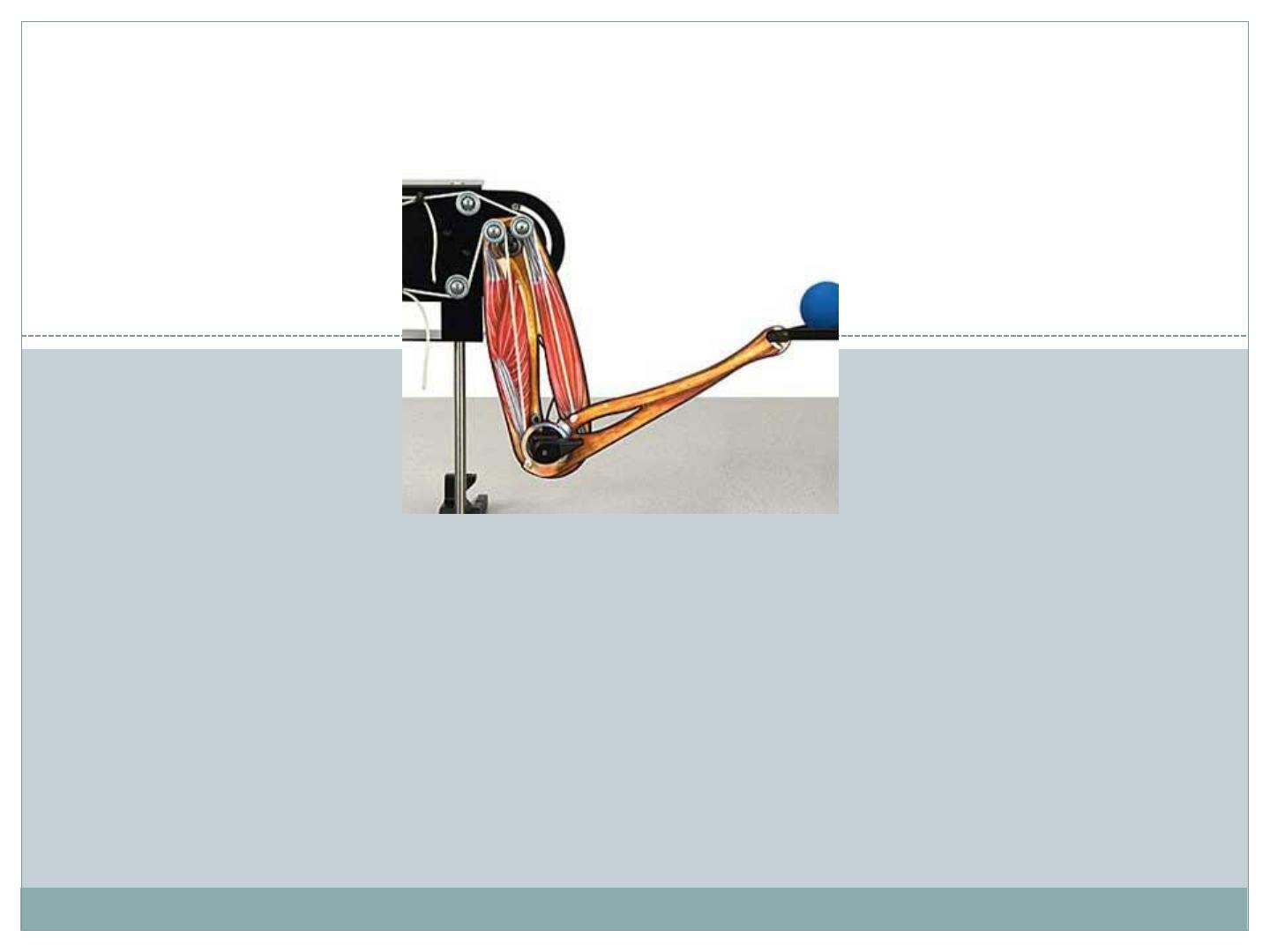

Apparatus •Arm
•Cord
•Force sensor
2
Steps
1- Clamp the arm model horizontally.
2- Lock the shoulder at zero
3- Attach cord . Adjust the length of the of the cord so that the elbow
is held at about 90o
4- Connect force sensors to your interface.
5- add deferent mass at The palm of the hand.
3

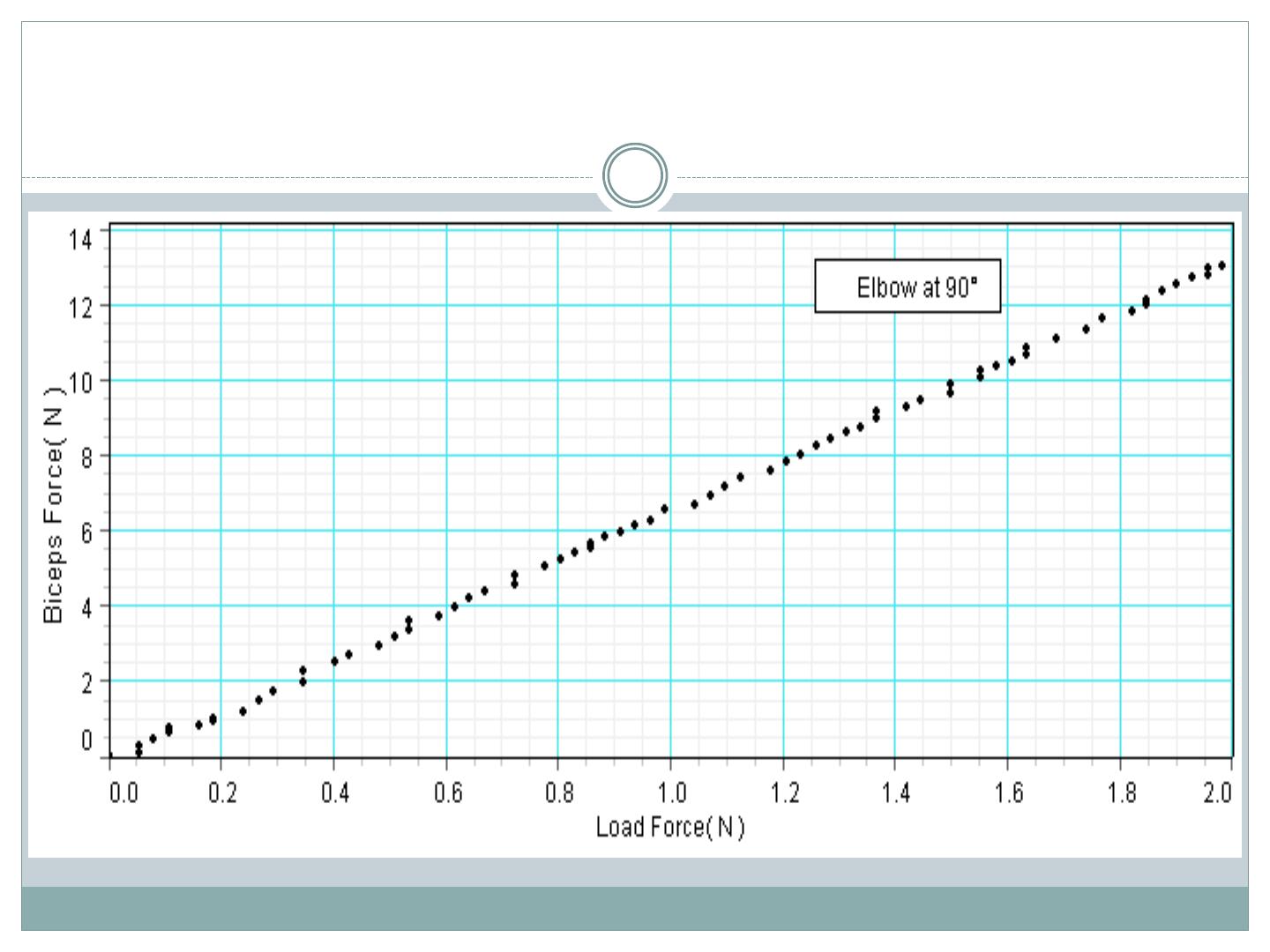

7- Prepare a graph to plot biceps force versus load.
8- Start data collection
9- Hook the second force sensor onto the model’s hand and pull it downward.
Slowly increase the force while watching the graph.
4
Results
Slope= (y2–y1)/ (x2- x1) = Biceps / Load
