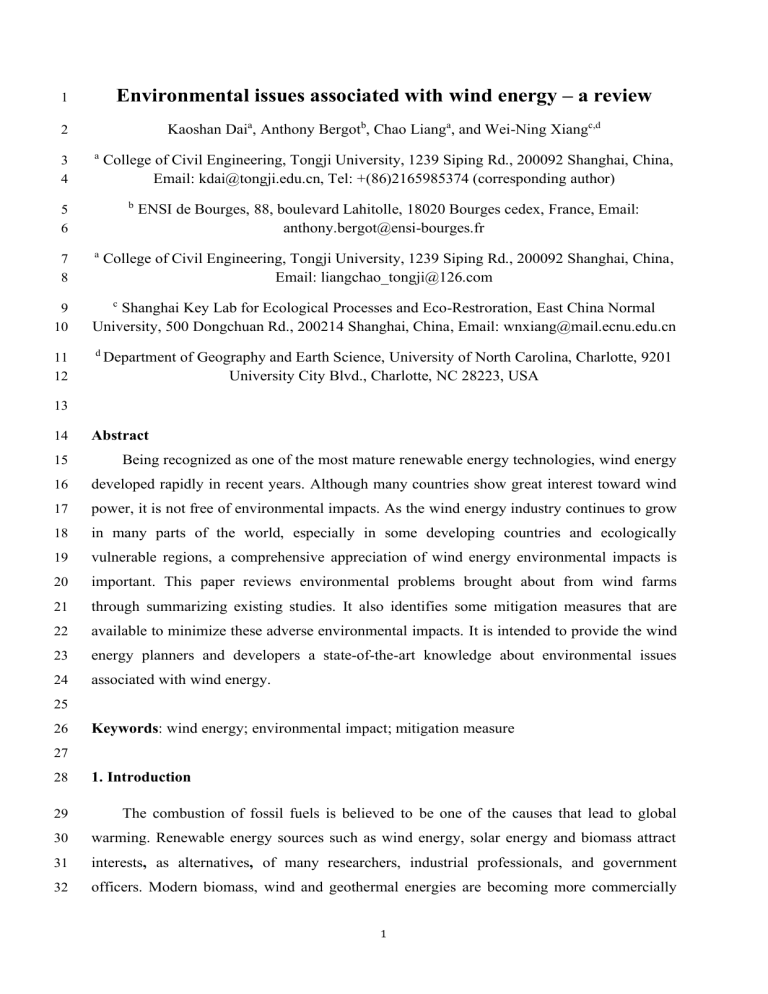

Environmental issues associated with wind energy – a review
1
Kaoshan Daia, Anthony Bergotb, Chao Lianga, and Wei-Ning Xiangc,d
2
a College of Civil Engineering, Tongji University, 1239 Siping Rd., 200092 Shanghai, China,
3
Email: [email protected], Tel: +(86)2165985374 (corresponding author)
4
b ENSI de Bourges, 88, boulevard Lahitolle, 18020 Bourges cedex, France, Email:
5
[email protected]
6
a College of Civil Engineering, Tongji University, 1239 Siping Rd., 200092 Shanghai, China,
7
Email: [e-mail]
8
c Shanghai Key Lab for Ecological Processes and Eco-Restroration, East China Normal
9
University, 500 Dongchuan Rd., 200214 Shanghai, China, Email: [e-mail]
10
d Department of Geography and Earth Science, University of North Carolina, Charlotte, 9201
11
University City Blvd., Charlotte, NC 28223, USA
12
13
Abstract
14
Being recognized as one of the most mature renewable energy technologies, wind energy
15
developed rapidly in recent years. Although many countries show great interest toward wind
16
power, it is not free of environmental impacts. As the wind energy industry continues to grow
17
in many parts of the world, especially in some developing countries and ecologically
18
vulnerable regions, a comprehensive appreciation of wind energy environmental impacts is
19
important. This paper reviews environmental problems brought about from wind farms
20
through summarizing existing studies. It also identifies some mitigation measures that are
21
available to minimize these adverse environmental impacts. It is intended to provide the wind
22
energy planners and developers a state-of-the-art knowledge about environmental issues
23
associated with wind energy.
24
25
Keywords: wind energy; environmental impact; mitigation measure
26
27
1. Introduction
28
The combustion of fossil fuels is believed to be one of the causes that lead to global
29
warming. Renewable energy sources such as wind energy, solar energy and biomass attract
30
interests, as alternatives, of many researchers, industrial professionals, and government
31
officers. Modern biomass, wind and geothermal energies are becoming more commercially
32

2
competitive and are making relatively fast progress[1]. According to the European Renewable
33
Energy Council, approximately half of the global energy supply will come from renewable
34
energy in 2040[2]. Predictions also indicate a large increase in renewable energy and energy
35
efficiency by 2050 and therefore, a great decrease of carbon dioxide emissions[3].
36
As one of the most mature renewable energy technologies, wind power has accelerated
37
its growth during the past decade. Wind becomes a preferable choice as energy planners and
38
national governments seek to diversify their energy mix, reduce CO2 emissions, build new
39
industries with the investment, and provide more employment opportunities. According to the
40
latest Global Wind Report, the global total of wind power is 282.5 GW at the end of 2012[4].
41
However, wind energy developments are not free of environmental impacts. As wind power
42
continues to develop in many parts of the world, especially in some developing countries and
43
ecologically vulnerable regions, a poor understanding of its impacts, is a concern[5,6].
44
In this paper, we review potential environmental problems brought about from wind
45
farms, summarize evidences collected from existing studies, and identify available mitigation
46
measures to minimize these adverse environmental impacts. Through this review, it is
47
anticipated to provide the planner and developers a clear warning that an inappropriate wind
48
farm project design can adversely affect local environment. Suitable mitigation efforts should
49
be considered in the design, construction, and operation phases of a wind farm to avoid, if
50
possible, concentrations of vulnerable ecological systems.
51
52
2. Wind energy induced environmental problems
53
Wind power plants use wind turbines to convert the most common and available
54
resource, wind, into electricity or mechanical energy. The output power of a turbine is
55
function of the density of the air, the area swept out by turbine blades and the cube of the
56
wind speed[7]. Environmental issues related to wind farms mainly include noise, bio-system
57
disturbance, visual pollution, changes to local climate, avian safety and electromagnetic
58
interference[8].
59
2.1 Noise
60
Noise is one of the major environmental hindrances of wind power. According to Van
61
den Berg[9], at quiet nights, people living as far as 500m away from wind farms react
62

3
strongly to the noise and those living up to 1900m away from wind farm can experience
63
annoyance. It is also found that people seem to be more annoyed with wind turbine noise than
64
the same dose of transportation noise[10]. In addition, wind turbine visual and aesthetic
65
impacts on landscape could increase annoyance to wind turbine noise[10]. However,
66
compared to large quantity of data on annoyance from transportation noise, studies on
67
correlation between annoyance and wind turbine noise are limited. Interpretation should be
68
done with care and further research is in need.
69
In terms of frequency, there are two types of noises produced by wind turbines: tonal and
70
broadband noise. Tonal noise is defined by discrete frequencies (in the range of 20Hz to
71
100Hz) and is caused by non-aerodynamic instabilities, such as unstable flows over holes,
72
slits or a blunt trailing edge[11]. Broadband noise is a random, non-periodic, signal with
73
frequency superior to 100 Hz. It contains continuous sound level distribution caused by the
74
interaction of wind turbine blades with atmospheric turbulence and generated by the airflow
75
right along the surface of the airfoil[11]. In terms of noise sources, the sound of wind turbines
76
comes from aerodynamic and mechanical noise. Aerodynamic noise comes from blades
77
passing through the air. This sound, perpendicular to the blade rotation, varies with turbine
78
size, wind speed and blade rotation speed. A strong wind and a big turbine are obviously
79
noisier. Since modern turbines can rotate in order to face to wind, noise comes from different
80
directions at different time. To make sure that a turbine rotates with a constant speed, the
81
blade pitch can automatically adjust with the change of wind, and therefore, produce different
82
levels of noises. The aerodynamic sound contains different frequencies and they are
83
considered as a broadband noise[12]. Mechanical noise comes from turbine’s internal gears,
84
generator and other auxiliary parts[13]. This noise is often considered as a tonal noise because
85
it often contains only discrete frequency. These tonal noises are noticeable and irritating,
86
especially for small wind turbines with insufficient insulation[12]. Contrary to aerodynamic
87
noise, mechanical noise doesn’t increase very fast with dimensions of turbines and it can be
88
controlled through proper insulation during manufacturing[14]. The total noise, characterized
89
with sound pressure level dBA, is a combination of mechanical and aerodynamic noise.
90
Sound pressure levels, as a function of wind speed for different wind turbines reported in
91
literatures, are listed in Table 1. The AOC 15/50 wind turbine, with a hub height of 25 m, has
92
15-m-length blades, which have a nominal speed of 65 rpm. Microphones were located 32.5
93
m from the center of the tower base. The National Renewable Energy Laboratory (NREL)
94
used the equation: R = H + D/2, where R is the reference distance, H is the vertical distance
95

4
from the ground to the rotor center and D is the diameter of the rotor, to estimate the distance
96
where microphones will be installed[15]. The Bergey Excel wind turbine was mounted on a
97
37-m lattice tower. The measured wind was obtained with an anemometer located at hub
98
height (37meters) and 22.7 meters upwind from the testing turbine, and microphone were
99
located 40.5 m from the center of the tower base[16]. The whisper H40 wind turbine is a
100
three-bladed system, mounted on a 10 cm tube tower with a hub height of 9.1m. The same
101
method as the NREL was used to determine the place to establish the microphone, which is
102
10.2 m from the tower base center[17]. The International Standard IEC 61400-11[18] was
103
followed in these three studies, thus providing a uniform method that ensures consistency and
104
accuracy for noise measurements.
105
The sound pressure level of one single wind turbine at 40 meters away can vary from 50
106
to 60 dBA[8]. For a wind farm, the noise level at a certain distance from the wind turbine is
107
related to the number of turbines in operation. The equivalent sound pressure in a house
108
located 500 meters away from a single wind turbine center normally varies from 25 to 35
109
dBA. Under the same condition, the noise level generated by 10 wind turbines ranges from 35
110
dBA to 40 dBA[8]. The relationship between wind turbine number and the minimum distance
111
needed to reduce the noise level to 40dBA is shown in Table 2[19].
112
Besides distance, many other factors contribute to how sound propagates and attenuates,
113
including air temperature, humidity, barriers, reflections and ground surface materials. Inside
114
a building, wind direction and building material absorption have influences on the attenuation
115
of sound coming outside[12]. At night, the sound can be perceived differently: the whooshing
116
(amplitude-modulated noise from wind turbines) is perceived to increase in intensity and can
117
even become a thumping. The reason is that ambient noise or background noise is lower at
118
night due to lower human-made noise and a stable atmosphere[7]. According to Van den
119
Berg[9], a person living at 1.5 km from the wind park perceives the sound as an “endless
120
train” on quiet night. For some wind farms located on the seaside, background noise such as
121
noise of the waves and wind itself can be so loud that the noise of wind turbine cannot be
122
differentiated[20]. Therefore, the measured noise pressure level of wind turbine is modified
123
by the background noise. The modification factors provided in the Chinese standard[21] are
124
listed in Table 3, which are used for those scenarios when the difference between background
125
noise level and the measured noise ranges from 3 dBA to 10 dBA.
126
Noise is one of the main causes why there is a minimum separation distance between
127

5
wind farms and habitations. This distance is often recommended by government or medical
128
institutions and it varies among countries. Recommendations given by different countries are
129
summarized in Table 4. Another approach is to limit the noise that can be heard at the closest
130
inhabited dwelling. Such restrictions set by different countries or regions are collected in
131
Table 5. In Table 5, another scale to measure noise, L90, is provided. It measures a sound level
132
that is exceeded 90% of the time and it is considered as the noise someone hears late in the
133
evening or at night when there is very little sound[22]. This scale is useful to characterize the
134
background noise that masks the noise effects of wind farm [23,24]. Kamperman and
135
James[22] also argue that common use of a single A-Weighted (dBA) noise descriptor is not
136
adequate to limit wind turbine noise which has significant low frequency sound. To
137
supplement current standards, they proposed to limit C-Weighting or dBC within L90+20dB
138
and with the maximum of 50 dBC[22].
139
Noise can induce sleep disturbance and hearing loss. Exposure to high noise can trigger
140
headaches, irritability, fatigue, constricted arteries and a weakened immune system[25]. The
141
disturbing noise can also have subjective effects such as annoyance or dissatisfaction[24].
142
Shepherd et al.[26] conducted a questionnaire study for people who live within two
143
kilometers of wind turbines. Results show that wind turbines affect life quality and cause
144
amenity for some residents, who are not willing to accept wind turbines and keep a virulent
145
attitude against the wind turbine project. Studies have also shown that sleep deprivation due
146
to wind turbine noise can cause health problems but none studies have yet proved that this
147
noise per se can cause direct health problems or whether infrasound from wind turbines can
148
impact the vestibular system[7]. Due to the paucity of literature and the facts that annoyance
149
can be caused by other factors, the clear association between annoyance and wind turbine
150
noise still need more rigorous study.
151
2.2 Effects on animals
152
2.2.1 Bird
153
Wind turbines induce the risks of mortality and disturbance for birds. Numerous birds
154
die because of a collision with rotating propellers; they also die or suffer lethal injuries by
155
colliding with towers, nacelles and other associated structures such as guy cables, power lines
156
and meteorological masts in a wind farm[27]. Although many birds die every day because of
157
pesticides and collision with other facilities, wind towers kill more treasured species such as
158
golden eagles or swans[28]. Researchers used different methods to calculate the number of
159
