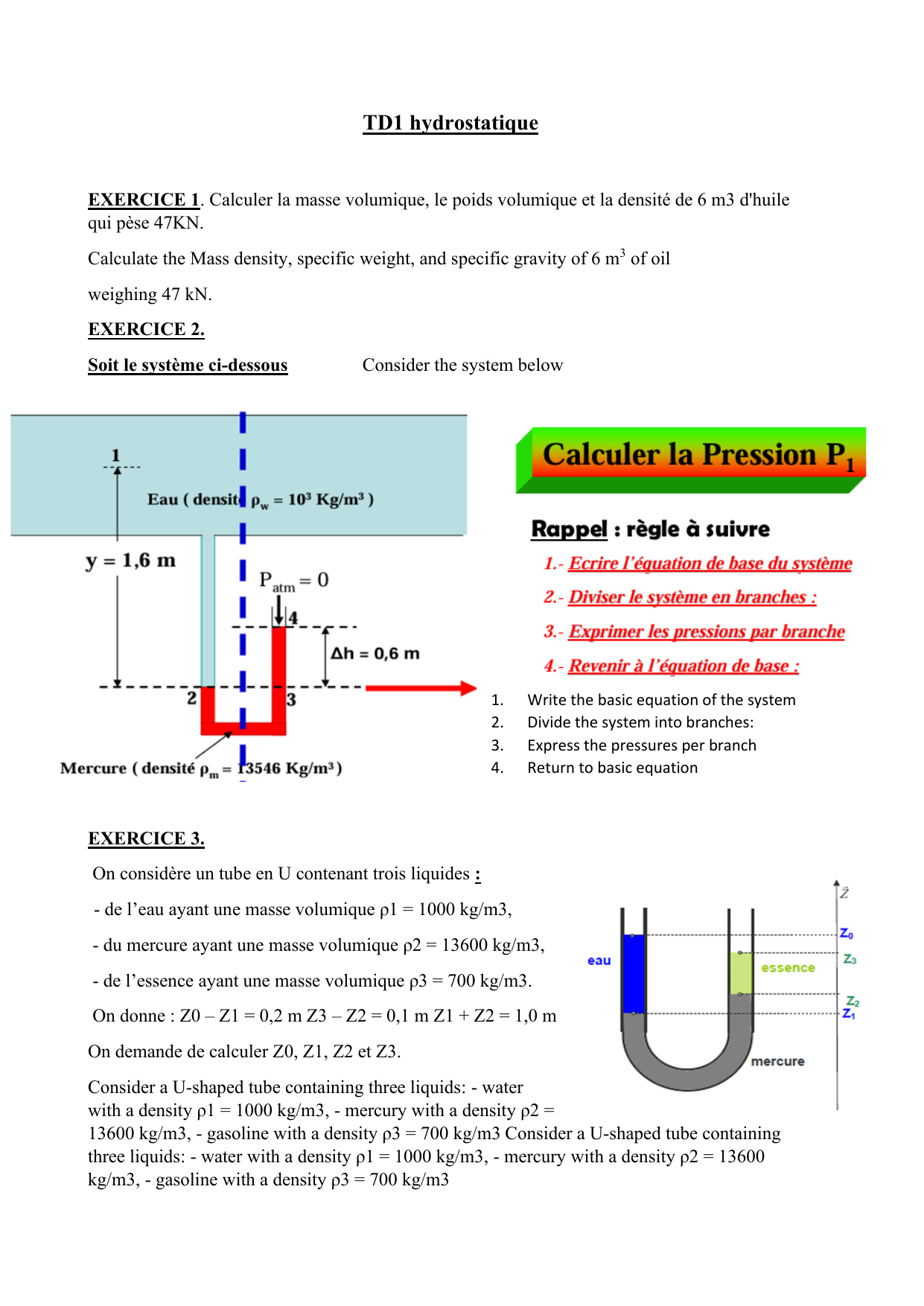

TD1 hydrostatique
EXERCICE 1. Calculer la masse volumique, le poids volumique et la densité de 6 m3 d'huile
qui pèse 47KN.
Calculate the Mass density, specific weight, and specific gravity of 6 m3 of oil
weighing 47 kN.
EXERCICE 2.

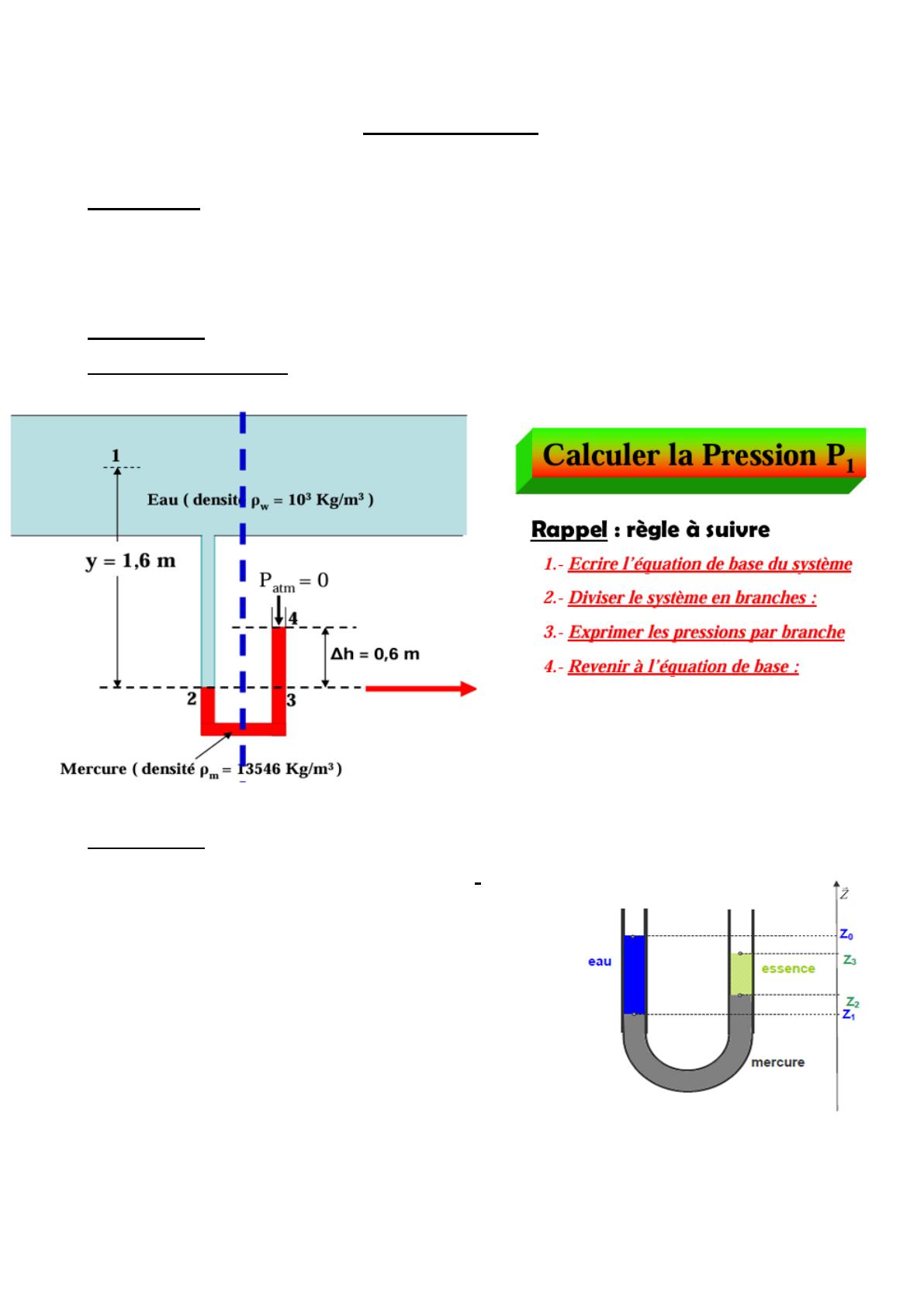

Soit le système ci-dessous Consider the system below
1. Write the basic equation of the system
2. Divide the system into branches:
3. Express the pressures per branch
4. Return to basic equation
EXERCICE 3.
On considère un tube en U contenant trois liquides :
- de l’eau ayant une masse volumique ρ1 = 1000 kg/m3,
- du mercure ayant une masse volumique ρ2 = 13600 kg/m3,
- de l’essence ayant une masse volumique ρ3 = 700 kg/m3.
On donne : Z0 – Z1 = 0,2 m Z3 – Z2 = 0,1 m Z1 + Z2 = 1,0 m
On demande de calculer Z0, Z1, Z2 et Z3.
Consider a U-shaped tube containing three liquids: - water
with a density ρ1 = 1000 kg/m3, - mercury with a density ρ2 =
13600 kg/m3, - gasoline with a density ρ3 = 700 kg/m3 Consider a U-shaped tube containing
three liquids: - water with a density ρ1 = 1000 kg/m3, - mercury with a density ρ2 = 13600
kg/m3, - gasoline with a density ρ3 = 700 kg/m3
We are given
Z0 – Z1 = 0.2 m, Z3 – Z2 = 0.1 m, Z1 + Z2 = 1.0 m
We are asked to calculate Z0, Z1, Z2 and Z3.
EXERCICE 4.

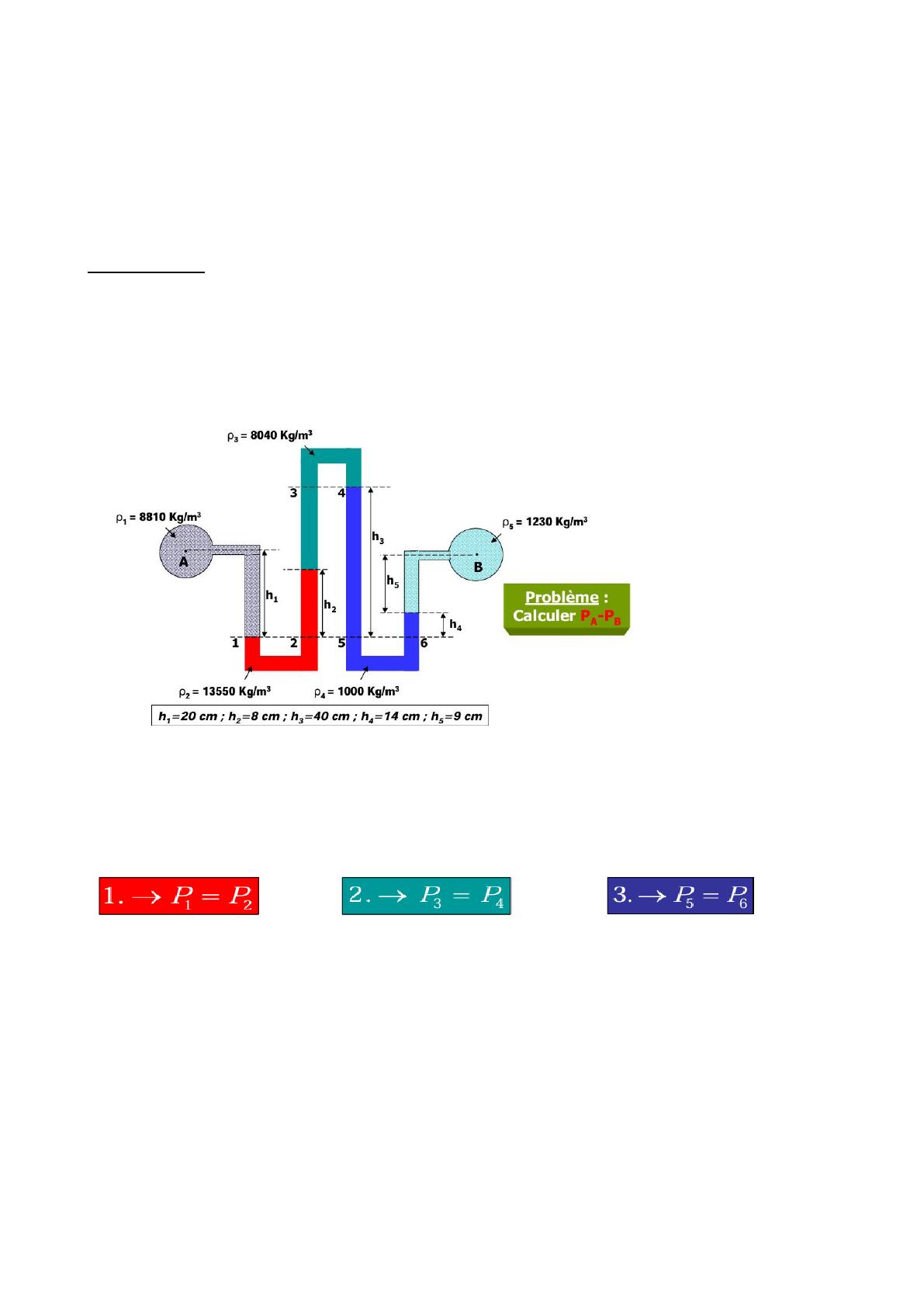

Soit le dispositif suivant composé de deux récipients contenant des fluides différents et qui sont
reliés par des tubes contenant différents liquides
Consider the following device composed of two containers containing different fluids and which
are connected by tubes containing different liquids.
according to the law of fluid statics, we can write that:
Selon la loi de la statique des fluides, on peut écrire que :
1
/
3
