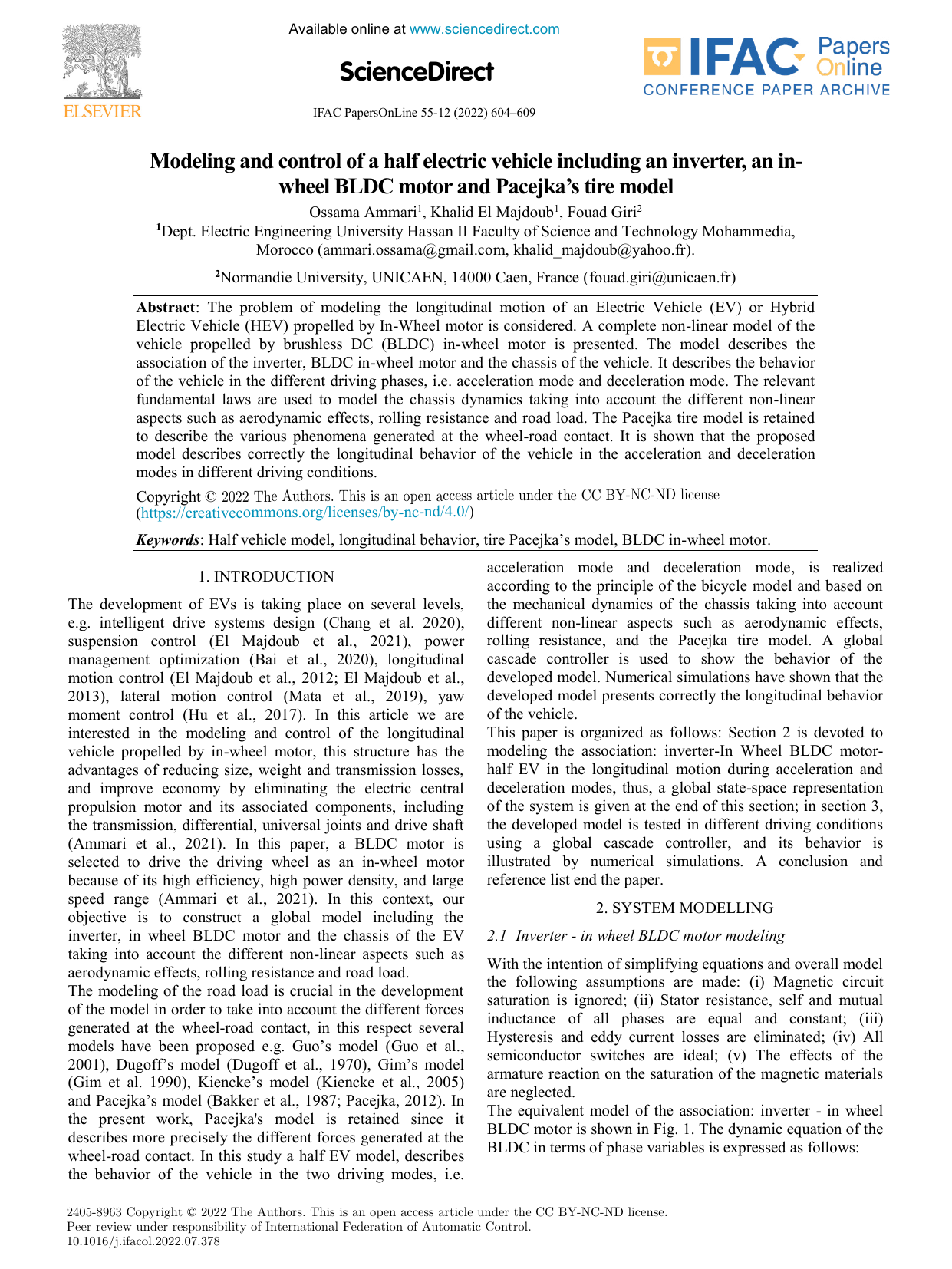

Modeling & Control of Half EV with BLDC In-Wheel Motor & Pacejka Tire

IFAC PapersOnLine 55-12 (2022) 604–609
ScienceDirect
Available online at www.sciencedirect.com
2405-8963 Copyright © 2022 The Authors. This is an open access article under the CC BY-NC-ND license .
Peer review under responsibility of International Federation of Automatic Control.
10.1016/j.ifacol.2022.07.378
10.1016/j.ifacol.2022.07.378 2405-8963
Copyright ©
2022 The Authors. This is an open access article under the CC BY-NC-ND license
(
https://creativecommons.org/licenses/by-nc-nd/4.0/
)
Modeling and control of a half electric vehicle including an inverter, an in-
wheel BLDC motor and Pacejka’s tire model
Ossama Ammari1, Khalid El Majdoub1, Fouad Giri2
1Dept. Electric Engineering University Hassan II Faculty of Science and Technology Mohammedia,
Morocco ([e-mail], [e-mail]).
2Normandie University, UNICAEN, 14000 Caen, France ([e-mail])
Abstract: The problem of modeling the longitudinal motion of an Electric Vehicle (EV) or Hybrid
Electric Vehicle (HEV) propelled by In-Wheel motor is considered. A complete non-linear model of the
vehicle propelled by brushless DC (BLDC) in-wheel motor is presented. The model describes the
association of the inverter, BLDC in-wheel motor and the chassis of the vehicle. It describes the behavior
of the vehicle in the different driving phases, i.e. acceleration mode and deceleration mode. The relevant
fundamental laws are used to model the chassis dynamics taking into account the different non-linear
aspects such as aerodynamic effects, rolling resistance and road load. The Pacejka tire model is retained
to describe the various phenomena generated at the wheel-road contact. It is shown that the proposed
model describes correctly the longitudinal behavior of the vehicle in the acceleration and deceleration
modes in different driving conditions.
Keywords: Half vehicle model, longitudinal behavior, tire Pacejka’s model, BLDC in-wheel motor.
1. INTRODUCTION
The development of EVs is taking place on several levels,
e.g. intelligent drive systems design (Chang et al. 2020),
suspension control (El Majdoub et al., 2021), power
management optimization (Bai et al., 2020), longitudinal
motion control (El Majdoub et al., 2012; El Majdoub et al.,
2013), lateral motion control (Mata et al., 2019), yaw
moment control (Hu et al., 2017). In this article we are
interested in the modeling and control of the longitudinal
vehicle propelled by in-wheel motor, this structure has the
advantages of reducing size, weight and transmission losses,
and improve economy by eliminating the electric central
propulsion motor and its associated components, including
the transmission, differential, universal joints and drive shaft
(Ammari et al., 2021). In this paper, a BLDC motor is
selected to drive the driving wheel as an in-wheel motor
because of its high efficiency, high power density, and large
speed range (Ammari et al., 2021). In this context, our
objective is to construct a global model including the
inverter, in wheel BLDC motor and the chassis of the EV
taking into account the different non-linear aspects such as
aerodynamic effects, rolling resistance and road load.
The modeling of the road load is crucial in the development
of the model in order to take into account the different forces
generated at the wheel-road contact, in this respect several
models have been proposed e.g. Guo’s model (Guo et al.,
2001), Dugoff’s model (Dugoff et al., 1970), Gim’s model
(Gim et al. 1990), Kiencke’s model (Kiencke et al., 2005)
and Pacejka’s model (Bakker et al., 1987; Pacejka, 2012). In
the present work, Pacejka's model is retained since it
describes more precisely the different forces generated at the
wheel-road contact. In this study a half EV model, describes
the behavior of the vehicle in the two driving modes, i.e.
acceleration mode and deceleration mode, is realized
according to the principle of the bicycle model and based on
the mechanical dynamics of the chassis taking into account
different non-linear aspects such as aerodynamic effects,
rolling resistance, and the Pacejka tire model. A global
cascade controller is used to show the behavior of the
developed model. Numerical simulations have shown that the
developed model presents correctly the longitudinal behavior
of the vehicle.
This paper is organized as follows: Section 2 is devoted to
modeling the association: inverter-In Wheel BLDC motor-
half EV in the longitudinal motion during acceleration and
deceleration modes, thus, a global state-space representation
of the system is given at the end of this section; in section 3,
the developed model is tested in different driving conditions
using a global cascade controller, and its behavior is
illustrated by numerical simulations. A conclusion and
reference list end the paper.
2. SYSTEM MODELLING
2.1 Inverter - in wheel BLDC motor modeling
With the intention of simplifying equations and overall model
the following assumptions are made: (i) Magnetic circuit
saturation is ignored; (ii) Stator resistance, self and mutual
inductance of all phases are equal and constant; (iii)
Hysteresis and eddy current losses are eliminated; (iv) All
semiconductor switches are ideal; (v) The effects of the
armature reaction on the saturation of the magnetic materials
are neglected.
The equivalent model of the association: inverter - in wheel
BLDC motor is shown in Fig. 1. The dynamic equation of the
BLDC in terms of phase variables is expressed as follows:
