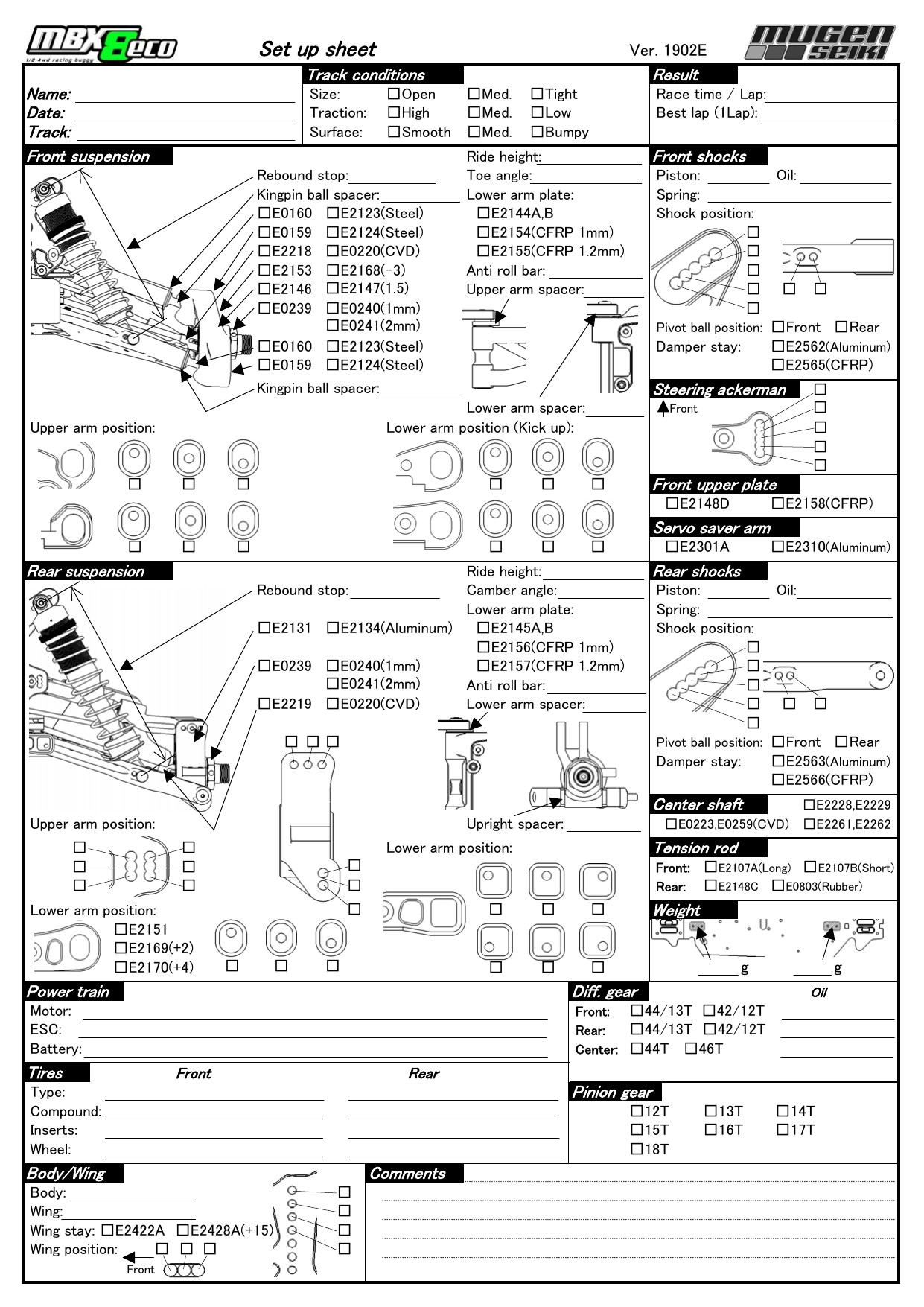

Set up sheet Ver. 1902E
Track conditions Result
Name:
Size: □Open □Med. □Tight Raｃe time / Lap:
Date: Traction: □High □Med. □Low Best lap (1Lap):
Track: Surface: □Smooth □Med. □Bumpy
Front suspension Ride height: Front shocks
Rebound stop: Toe angle: Piston: Oil:
Kingpin ball spacer: Lower arm plate: Spring:
□E0160 □E2123(Steel) □E2144A,B Shock position:
□E0159 □E2124(Steel) □E2154(CFRP 1mm) □
□E2218 □E0220(CVD) □E2155(CFRP 1.2mm) □
□E2153 □E2168(-3) Anti roll bar: □
□E2146 □E2147(1.5) Upper arm spacer: □ □ □
□E0239 □E0240(1mm) □
□E0241(2mm) Pivot ball position: □Front □Rear
□E0160 □E2123(Steel) Damper stay: □E2562(Aluminum)
□E0159 □E2124(Steel) □E2565(CFRP)
Kingpin ball spacer:
Steering ackerman □
Lower arm spacer: Front □
Upper arm position: Lower arm position (Kick up): □
□
□
□□□ □□□ Front upper plate
□E2148D □E2158(CFRP)
Servo saver arm
□ □ □ □ □ □ □E2301A □E2310(Aluminum)
Rear suspension Ride height: Rear shocks
Rebound stop: Camber angle: Piston: Oil:
Lower arm plate: Spring:
□E2131 □E2134(Aluminum) □E2145A,B Shock position:
□E2156(CFRP 1mm) □
□E0239 □E0240(1mm) □E2157(CFRP 1.2mm) □
□E0241(2mm) Anti roll bar: □
□E2219 □E0220(CVD) Lower arm spacer: □ □ □
□
□□□
Pivot ball position: □Front □Rear
Damper stay: □E2563(Aluminum)
□E2566(CFRP)
Center shaft □E2228,E2229
Upper arm position: Upright spacer: □E0223,E0259(CVD) □E2261,E2262
□ □ Lower arm position: Tension rod
□□ □ Front: □E2107A(Long) □E2107B(Short)
□□ □ Rear: □E2148C □E0803(Rubber)
Lower arm position: □□□□ Weight
□E2151
□E2169(+2)
□E2170(+4) □ □ □ □□□ gg
Power train Diff. gear Oil
Motor: Front: □44/13T □42/12T
ESC: Rear: □44/13T □42/12T
Battery: Center: □44T □46T
Tires Front Rear
Type: Pinion gear
Compound: □12T □13T □14T
Inserts: □15T □16T □17T
Wheel: □18T
Body/Wing Comments
Body: □
Wing: □
Wing stay: □E2422A □E2428A(+15) □
Wing position: □ □ □ □
Front
