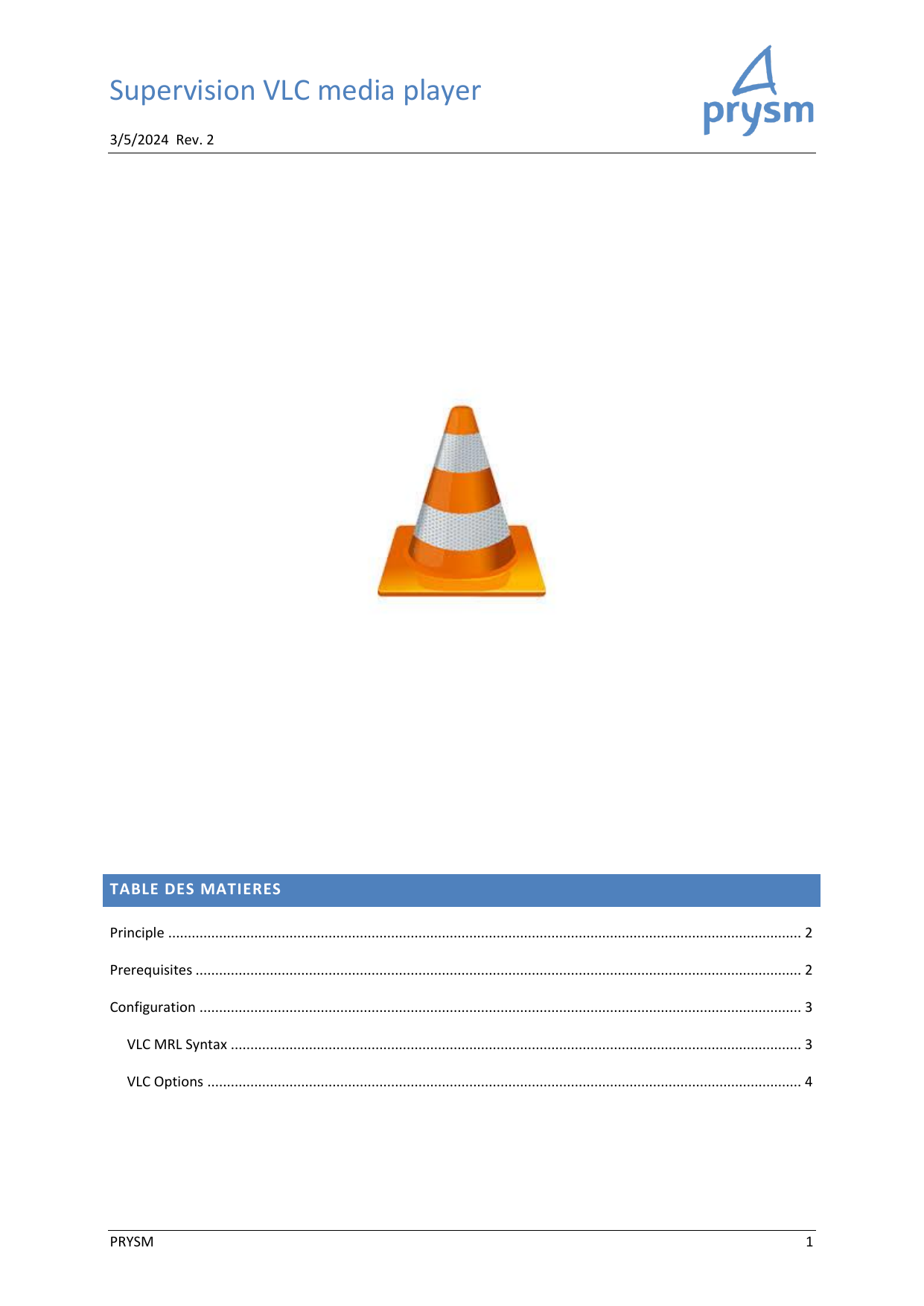

VLC Media Player Supervision Guide for AppVision

Supervision VLC media player
3/5/2024 Rev. 2
PRYSM 1
TABLE DES MATIERES
Principle .................................................................................................................................................................. 2
Prerequisites ........................................................................................................................................................... 2
Configuration .......................................................................................................................................................... 3
VLC MRL Syntax .................................................................................................................................................. 3
VLC Options ........................................................................................................................................................ 4

Supervision VLC media player
3/5/2024 Rev. 2
PRYSM 2
PRINCIPLE
AppVision player for VLC uses VideoLAN VLC media player to display video files or camera streams.
PREREQUISITES
o Extract then content of file appPlayerVLC.4.X.zip in the directory \AppVision 4\bin

Supervision VLC media player
3/5/2024 Rev. 2
PRYSM 3
CONFIGURATION
o Create a variable of type Camera
o Address contains the video file path or url (referred as MRL in VLC)
o Add CreateControlPlayer=appPlayerVLC.dll in Parameters field.
VLC MRL SYNTAX
From https://wiki.videolan.org/VLC_command-line_help/
Stream MRL syntax:
[[access][/demux]://]URL[#[title][:chapter][-[title][:chapter]]]
URL syntax:
file:///path/file Plain media file
http://host[:port]/file HTTP URL
ftp://host[:port]/file FTP URL
mms://host[:port]/file MMS URL
screen:// Screen capture
dvd://[device] DVD device
vcd://[device] VCD device
cdda://[device] Audio CD device
udp://[[<source address>]@[<bind address>][:<bind port>]] UDP stream sent by a
streaming server
dshow:// DirectShow devices.
Webcam Display the webcam

Supervision VLC media player
3/5/2024 Rev. 2
PRYSM 4
VLC OPTIONS
VLC command line options can be set in the “Other parameters” field.
Ex:
--sub-source=logo{file="c:\picture.png",x=10,y=50}
Displays a picture over the video
--sub-source=marq{marquee="%H:%M:%S"}
Displays the current time over the video
--video-filter=transform{type=180}
Rotates the video by 180°
--video-filter=motion
Activates motion detection
