P1 25641310
P2 1068156
L1 1300 mm
L2 1800 mm
X1 1364. mm
X2 2663. mm
X3 4460. mm
Y2 24. mm
Y3 99. mm
Z1 46. mm
Z2 101. mm
Z3 117. mm
a1 4.0 deg
a2 2.3 deg
a3 0.1 deg
a4 4.8 deg
C1 2638 mm
M1 A 4 7
w 0.0 deg
Information on more dimensions is available in the Bodywork exchange parameters (BEP) list

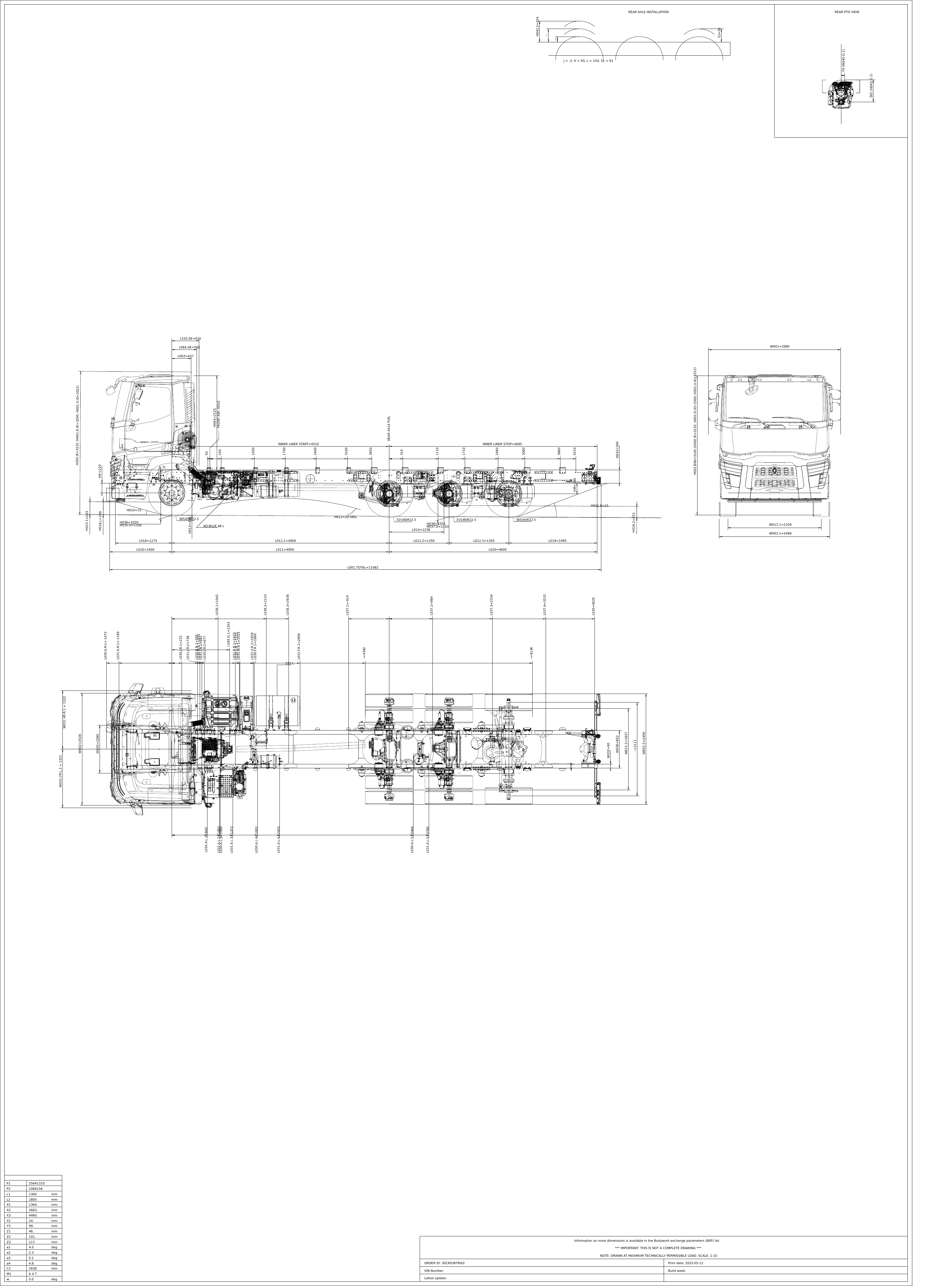

*** IMPORTANT: THIS IS NOT A COMPLETE DRAWING ***
NOTE: DRAWN AT MAXIMUM TECHNICALLY PERMISSIBLE LOAD. SCALE: 1:10
ORDER ID: 30CR036TRI02 Print date: 2025-05-12
VIN Number: Build week:
Latest update:
REAR AXLE INSTALLATION
--
--
H042.2=154
S1=91
J = -2, K = 93, L = 154, S1 = 91
385/65R22.5 315/80R22.5 315/80R22.5 385/65R22.5
REAR AXLE POS.
H010=15
H011.E=21
H002.IE=3232 (H001.D.IE=3300, H001.U.IE=3312)
IHF=220
H018.L=289
H015.1=293
IHR=240
H016.2=253
H013=339
H012=20 DEG
50
FRONT REF. HOLE
250
1000
1700
2400
3100
3650
310
1110
1710
2460
3060
3860
4210
H036=1020
H035.U=1100 H038=1055
H037.U=1103
L012.1=4900 L012.2=1350 L012.3=1350 L019=1995
L014=1238
L018=1275
L011=4900L016=1400 L020=4695
L001.TOTAL=11082
L063=437
L064.AE=565
L102.AE=615
H063=2125
H032=300
INNER LINER START=4510 INNER LINER STOP=4695
W032=90
W036=852
W035=1080
W031.VR.L.1 = 1321
W031.VR.R.1 = 1322
W002=2526
W013.2=1837
--=2111
W003.2=2499
L036.1=1042
L036.2=2133
L036.3=2638
L037.1=-914
L037.2=984
L037.3=2334
L037.4=3533
L035=4635
L043.G.1=1303
W013.1=2109
W003.1=2498
H002.BIW=3145 (H002.IE=3232, H001.D.IE=3300, H001.U.IE=3312)
W001=2980
L030.A.L.2=800
L031.A.L.2=1083
L030.A.L.3=1090
L031.A.L.3=1373
L030.A.L.4=1932
L031.A.L.4=2433
L030.A.L.5=5444
L031.A.L.5=5795
L030.B.B.1=585
L031.B.B.1=1433
L030.M.R.1=635
L031.M.R.1=1533
L030.U.R.1=1525
L031.U.R.1=1834
L030.F.R.1=1860
L031.F.R.1=2890
L030.A.R.1=-1472
L031.A.R.1=-1189
--=4362
--=8136
L030.J.B.1=225
L031.J.B.1=681
L030.J.R.2=677
L031.J.R.2=738
AD-BLUE 48 L
315 L
REAR PTO VIEW
502 (H043.G.1)
79 (W043.G.1)
1
/
1
100%
