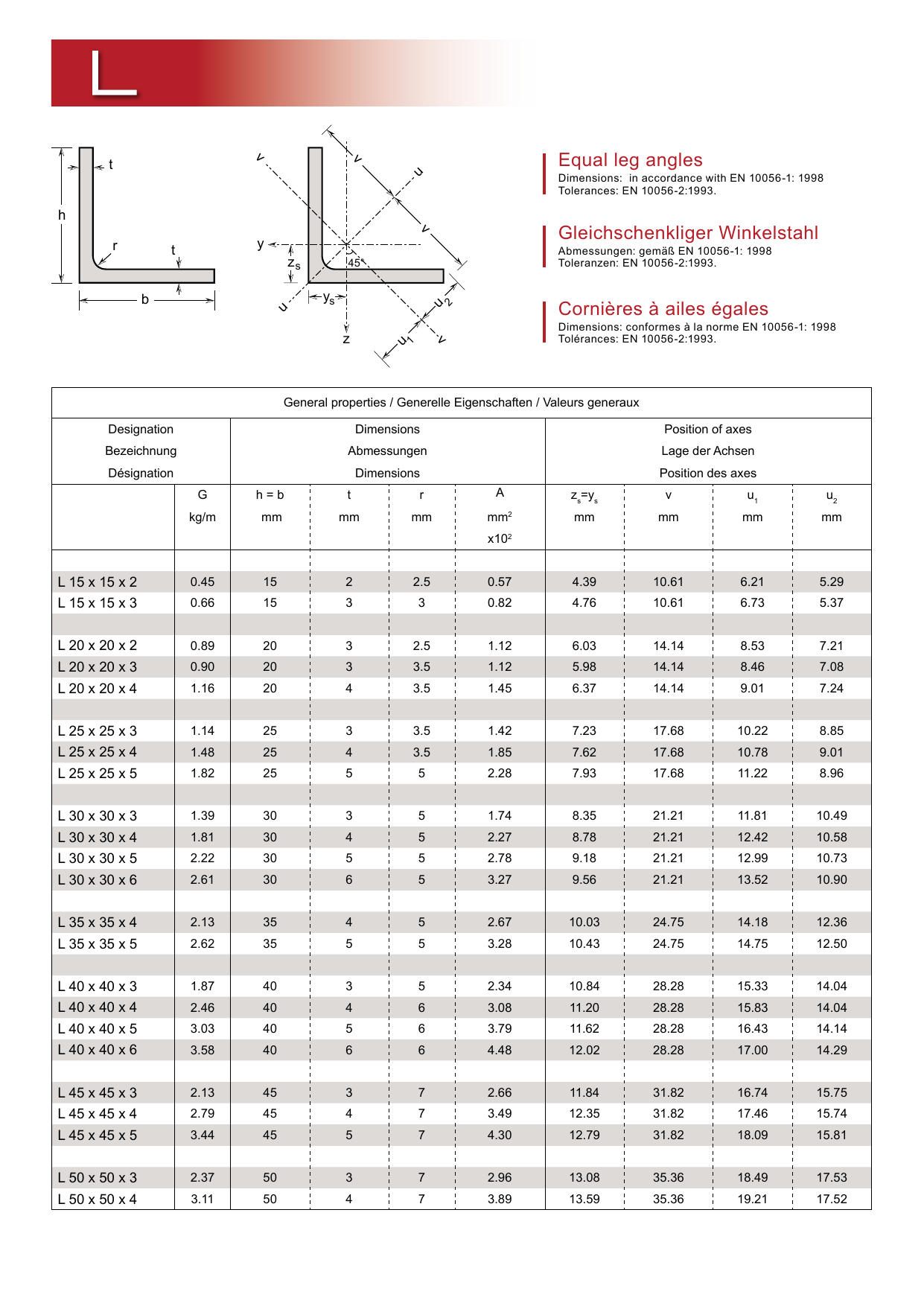

Cornières à ailes égales : dimensions et propriétés

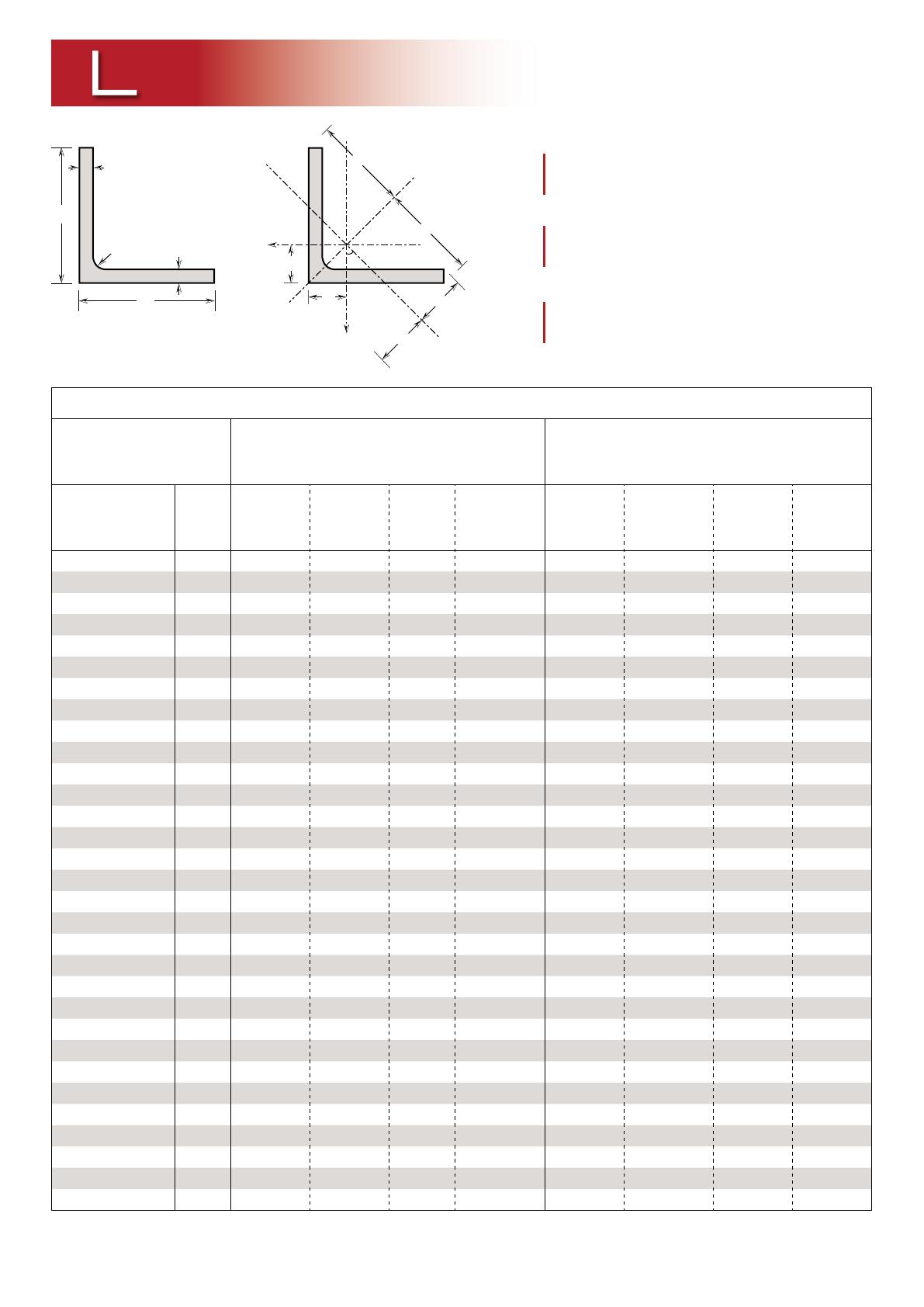

Cornières à ailes égales
Dimensions: conformes à la norme EN 10056-1: 1998
Tolérances: EN 10056-2:1993.
Gleichschenkliger Winkelstahl
Abmessungen: gemäß EN 10056-1: 1998
Toleranzen: EN 10056-2:1993.
Equal leg angles
Dimensions: in accordance with EN 10056-1: 1998
Tolerances: EN 10056-2:1993.
h
r
t
t
b
s
12
z
y
z
u
vv
v
v
u
uu
ys
45°
General properties / Generelle Eigenschaften / Valeurs generaux
Designation Dimensions Position of axes
Bezeichnung Abmessungen Lage der Achsen
Désignation Dimensions Position des axes
G h = b t r Azs=ysv u1u2
kg/m mm mm mm mm2mm mm mm mm
x102
L 15 x 15 x 2 0.45 15 2 2.5 0.57 4.39 10.61 6.21 5.29
L 15 x 15 x 3 0.66 15 3 3 0.82 4.76 10.61 6.73 5.37
L 20 x 20 x 2 0.89 20 3 2.5 1.12 6.03 14.14 8.53 7.21
L 20 x 20 x 3 0.90 20 3 3.5 1.12 5.98 14.14 8.46 7.08
L 20 x 20 x 4 1.16 20 4 3.5 1.45 6.37 14.14 9.01 7.24
L 25 x 25 x 3 1.14 25 3 3.5 1.42 7.23 17.68 10.22 8.85
L 25 x 25 x 4 1.48 25 4 3.5 1.85 7.62 17.68 10.78 9.01
L 25 x 25 x 5 1.82 25 5 5 2.28 7.93 17.68 11.22 8.96
L 30 x 30 x 3 1.39 30 3 5 1.74 8.35 21.21 11.81 10.49
L 30 x 30 x 4 1.81 30 4 5 2.27 8.78 21.21 12.42 10.58
L 30 x 30 x 5 2.22 30 5 5 2.78 9.18 21.21 12.99 10.73
L 30 x 30 x 6 2.61 30 6 5 3.27 9.56 21.21 13.52 10.90
L 35 x 35 x 4 2.13 35 4 5 2.67 10.03 24.75 14.18 12.36
L 35 x 35 x 5 2.62 35 5 5 3.28 10.43 24.75 14.75 12.50
L 40 x 40 x 3 1.87 40 3 5 2.34 10.84 28.28 15.33 14.04
L 40 x 40 x 4 2.46 40 4 6 3.08 11.20 28.28 15.83 14.04
L 40 x 40 x 5 3.03 40 5 6 3.79 11.62 28.28 16.43 14.14
L 40 x 40 x 6 3.58 40 6 6 4.48 12.02 28.28 17.00 14.29
L 45 x 45 x 3 2.13 45 3 7 2.66 11.84 31.82 16.74 15.75
L 45 x 45 x 4 2.79 45 4 7 3.49 12.35 31.82 17.46 15.74
L 45 x 45 x 5 3.44 45 5 7 4.30 12.79 31.82 18.09 15.81
L 50 x 50 x 3 2.37 50 3 7 2.96 13.08 35.36 18.49 17.53
L 50 x 50 x 4 3.11 50 4 7 3.89 13.59 35.36 19.21 17.52

MONTANSTAHL AG
Via Gerrette 4
CH - 6855 Stabio
FON: [phone]
FAX: [phone]
[e-mail]
www.montanstahl.com
Stainless steel
Grade according to EN 10088-3: 1D
Surface condition: blasted and pickled
Edelstahl Rostfrei
Güte nach EN 10088-3: 1D
Oberflächenbeschaffenheit: gestrahlt und gebeizt
Acier inoxydable
Nuance selon EN 10088-3: 1D
Etat de surface: sablé et décapé
s
12
z
y
z
u
vv
v
v
u
uu
ys
45°

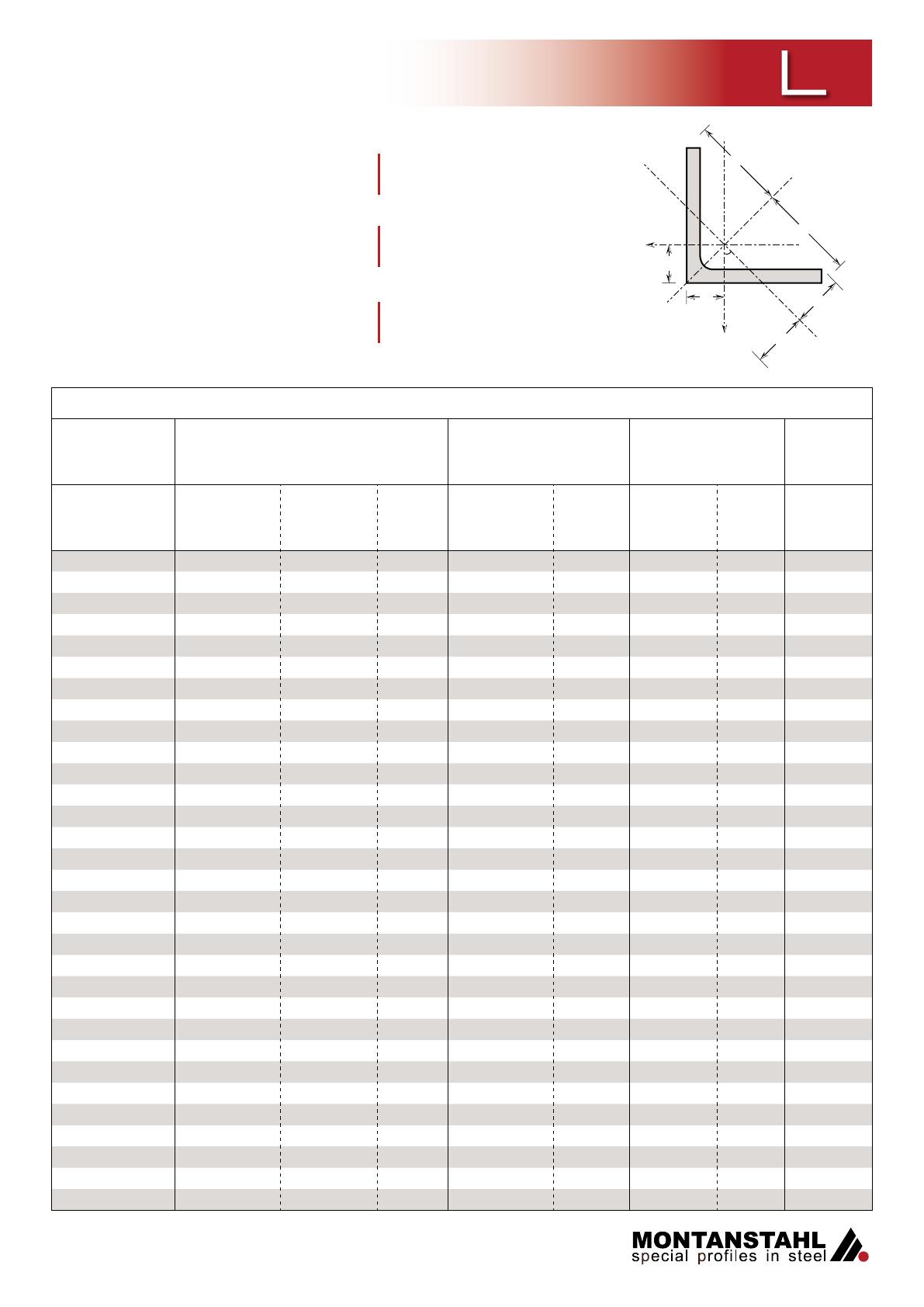

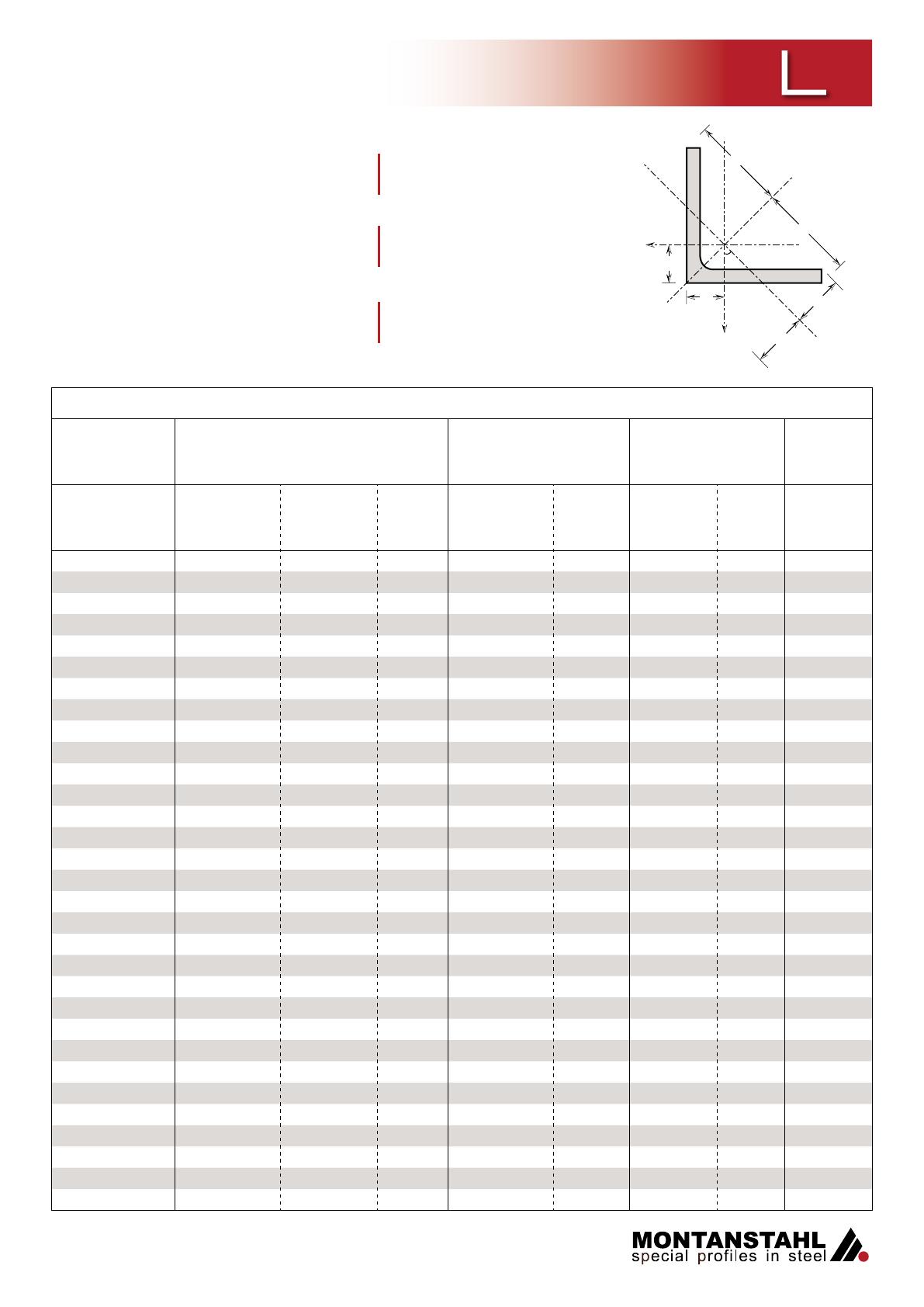

Structural properties / Statische Kennwerte / Valeurs statiques
Designation Axis y-y / axis z-z Axis u-u Axis v-v
Bezeichnung Achse y-y / Achse z-z Achse u-u Achse v-v
Désignation Axe y-y / axe z-z Axe u-u Axe v-v
Iy=IzWel,y=Wel,z iy=izIuiuIviv Iyz
mm4 mm3mm mm4mm mm4mm mm4
x104x103x10 x104x10 x104x10 x104
L 15 x 15 x 2 0.11 0.11 0.45 0.18 0.56 0.05 0.29 -0.07
L 15 x 15 x 3 0.15 0.15 0.43 0.24 0.54 0.07 0.29 -0.09
L 20 x 20 x 2 0.40 0.28 0.60 0.63 0.75 0.17 0.39 -0.23
L 20 x 20 x 3 0.39 0.28 0.59 0.62 0.74 0.16 0.38 -0.23
L 20 x 20 x 4 0.49 0.36 0.58 0.77 0.73 0.21 0.38 -0.28
L 25 x 25 x 3 0.80 0.45 0.75 1.27 0.95 0.33 0.48 -0.47
L 25 x 25 x 4 1.02 0.59 0.74 1.61 0.93 0.43 0.48 -0.59
L 25 x 25 x 5 1.19 0.70 0.72 1.87 0.91 0.51 0.48 -0.68
L 30 x 30 x 3 1.40 0.65 0.90 2.22 1.13 0.59 0.58 -0.82
L 30 x 30 x 4 1.80 0.85 0.89 2.85 1.12 0.75 0.58 -1.05
L 30 x 30 x 5 2.16 1.04 0.88 3.41 1.11 0.92 0.57 -1.25
L 30 x 30 x 6 2.49 1.22 0.87 3.91 1.09 1.08 0.57 -1.41
L 35 x 35 x 4 2.95 1.18 1.05 4.68 1.32 1.23 0.68 -1.73
L 35 x 35 x 5 3.56 1.45 1.04 5.63 1.31 1.49 0.68 -2.07
L 40 x 40 x 3 3.49 1.20 1.22 5.53 1.54 1.45 0.79 -2.04
L 40 x 40 x 4 4.47 1.55 1.21 7.09 1.52 1.86 0.78 -2.61
L 40 x 40 x 5 5.43 1.91 1.20 8.59 1.51 2.26 0.77 -3.17
L 40 x 40 x 6 6.31 2.26 1.19 9.97 1.49 2.65 0.77 -3.66
L 45 x 45 x 3 4.93 1.49 1.36 7.78 1.71 2.07 0.88 -2.85
L 45 x 45 x 4 6.43 1.97 1.36 10.18 1.71 2.68 0.88 -3.75
L 45 x 45 x 5 7.84 2.43 1.35 12.42 1.70 3.26 0.87 -4.58
L 50 x 50 x 3 6.86 1.86 1.52 10.84 1.91 2.88 0.99 -3.98
L 50 x 50 x 4 8.97 2.46 1.52 14.22 1.91 3.73 0.98 -5.24

× Proles are also available laser welded with full penetration, equivalent to hot rolled (r = laser seam).
× Prole sind auch Lasergeschweisst mit Vollanbindung erhältlich, gleichwertig zu warm gewalzt (r = Laser Naht).
× Proles disponibles aussi soudé laser avec pénétration complète, équivalent au laminé à chaud (r = cordon laser).
Cornières à ailes égales
Dimensions: conformes à la norme EN 10056-1: 1998
Tolérances: EN 10056-2:1993.
Gleichschenkliger Winkelstahl
Abmessungen: gemäß EN 10056-1: 1998
Toleranzen: EN 10056-2:1993.
Equal leg angles
Dimensions: in accordance with EN 10056-1: 1998
Tolerances: EN 10056-2:1993.
h
r
t
t
b
s
12
z
y
z
u
vv
v
v
u
uu
ys
45°
General properties / Generelle Eigenschaften / Valeurs generaux
Designation Dimensions Position of axes
Bezeichnung Abmessungen Lage der Achsen
Désignation Dimensions Position des axes
G h = b t r Azs=ysv u1u2
kg/m mm mm mm mm2mm mm mm mm
x102
L 50 x 50 x 5 3.84 50 5 7 / 2 * 4.80 14.04 35.36 19.85 17.59
L 50 x 50 x 6 4.55 50 6 7 / 2 * 5.69 14.45 35.36 20.44 17.71
L 50 x 50 x 7 5.25 50 7 7 / 2 * 6.56 14.85 35.36 21.01 17.85
L 50 x 50 x 8 5.93 50 8 7 / 2 * 7.41 15.24 35.36 21.55 18.01
L 60 x 60 x 5 4.65 60 5 8 / 2 * 5.82 16.44 42.43 23.24 21.06
L 60 x 60 x 6 5.53 60 6 8 / 2 * 6.91 16.88 42.43 23.87 21.15
L 60 x 60 x 7 6.38 60 7 8 / 2 * 7.98 17.29 42.43 24.45 21.27
L 60 x 60 x 8 7.22 60 8 8 / 2 * 9.03 17.69 42.43 25.02 21.41
L 60 x 60 x 10 8.85 60 10 8 / 2 * 11.07 18.46 42.43 26.10 21.74
L 65 x 65 x 6 6.02 65 6 9 / 2 * 7.53 18.04 45.96 25.51 22.83
L 65 x 65 x 7 6.96 65 7 9 / 2 * 8.70 18.47 45.96 26.12 22.93
L 65 x 65 x 8 7.88 65 8 9 / 2 * 9.85 18.88 45.96 26.70 23.06
L 65 x 65 x 9 8.78 65 9 9 / 2 * 10.98 19.28 45.96 27.26 23.20
L 65 x 65 x 10 9.67 65 10 9 / 2 * 12.09 19.66 45.96 27.81 23.36
L 70 x 70 x 5 5.47 70 5 9 / 2 * 6.84 18.82 49.50 26.62 24.55
L 70 x 70 x 6 6.50 70 6 9 / 2 * 8.13 19.28 49.50 27.27 24.61
L 70 x 70 x 7 7.52 70 7 9 / 2 * 9.40 19.71 49.50 27.88 24.70
L 70 x 70 x 8 8.53 70 8 10 / 2 * 10.67 20.06 49.50 28.37 24.72
L 70 x 70 x 9 9.50 70 9 9 / 2 * 11.88 20.53 49.50 29.03 24.97
L 70 x 70 x 10 10.47 70 10 9 / 2 * 13.09 20.91 49.50 29.58 25.13
L 75 x 75 x 5 5.87 75 5 9 / 2 * 7.34 20.06 53.03 28.37 26.33
L 75 x 75 x 6 6.98 75 6 9 / 2 * 8.73 20.53 53.03 29.03 26.38
L 75 x 75 x 7 8.08 75 7 9 / 2 * 10.10 20.96 53.03 29.64 26.48
L 75 x 75 x 8 9.16 75 8 9 / 2 * 11.45 21.37 53.03 30.23 26.60
L 75 x 75 x 9 10.22 75 9 9 / 2 * 12.78 21.77 53.03 30.79 26.74
L 75 x 75 x 10 11.27 75 10 9 / 2 * 14.09 22.16 53.03 31.35 26.89

MONTANSTAHL AG
Via Gerrette 4
CH - 6855 Stabio
FON: [phone]
FAX: [phone]
[e-mail]
www.montanstahl.com
Stainless steel
Grade according to EN 10088-3: 1D
Surface condition: blasted and pickled
Edelstahl Rostfrei
Güte nach EN 10088-3: 1D
Oberflächenbeschaffenheit: gestrahlt und gebeizt
Acier inoxydable
Nuance selon EN 10088-3: 1D
Etat de surface: sablé et décapé
s
12
z
y
z
u
vv
v
v
u
uu
ys
45°
Structural properties / Statische Kennwerte / Valeurs statiques
Designation Axis y-y / axis z-z Axis u-u Axis v-v
Bezeichnung Achse y-y / Achse z-z Achse u-u Achse v-v
Désignation Axe y-y / axe z-z Axe u-u Axe v-v
Iy=IzWel,y=Wel,z iy=izIuiuIviv Iyz
mm4 mm3mm mm4mm mm4mm mm4
x104x103x10 x104x10 x104x10 x104
L 50 x 50 x 5 10.96 3.05 1.51 17.38 1.90 4.55 0.97 -6.42
L 50 x 50 x 6 12.84 3.61 1.50 20.34 1.89 5.34 0.97 -7.50
L 50 x 50 x 7 14.61 4.16 1.49 23.11 1.88 6.11 0.97 -8.50
L 50 x 50 x 8 16.28 4.68 1.48 25.69 1.86 6.88 0.96 -9.41
L 60 x 60 x 5 19.37 4.45 1.82 30.71 2.30 8.03 1.17 -11.34
L 60 x 60 x 6 22.79 5.29 1.82 36.14 2.29 9.44 1.17 -13.35
L 60 x 60 x 7 26.05 6.10 1.81 41.28 2.27 10.82 1.16 -15.23
L 60 x 60 x 8 29.15 6.89 1.80 46.14 2.26 12.16 1.16 -16.99
L 60 x 60 x 10 34.93 8.41 1.78 55.06 2.23 14.80 1.16 -20.13
L 65 x 65 x 6 29.19 6.21 1.97 46.27 2.48 12.11 1.27 -17.08
L 65 x 65 x 7 33.43 7.18 1.96 52.99 2.47 13.87 1.26 -19.56
L 65 x 65 x 8 37.49 8.13 1.95 59.38 2.46 15.60 1.26 -21.89
L 65 x 65 x 9 41.37 9.05 1.94 65.44 2.44 17.30 1.26 -24.07
L 65 x 65 x 10 45.08 9.94 1.93 71.19 2.43 18.98 1.25 -26.11
L 70 x 70 x 5 31.24 6.10 2.14 49.50 2.69 12.97 1.38 -18.26
L 70 x 70 x 6 36.88 7.27 2.13 58.50 2.68 15.27 1.37 -21.61
L 70 x 70 x 7 42.30 8.41 2.12 67.09 2.67 17.51 1.36 -24.79
L 70 x 70 x 8 47.27 9.46 2.10 74.89 2.65 19.64 1.36 -27.63
L 70 x 70 x 9 52.47 10.60 2.10 83.09 2.64 21.84 1.36 -30.62
L 70 x 70 x 10 57.24 11.66 2.09 90.52 2.63 23.96 1.35 -33.28
L 75 x 75 x 5 38.77 7.06 2.30 61.46 2.89 16.08 1.48 -22.69
L 75 x 75 x 6 45.83 8.41 2.29 72.71 2.89 18.94 1.47 -26.89
L 75 x 75 x 7 52.61 9.74 2.28 83.49 2.88 21.73 1.47 -30.88
L 75 x 75 x 8 59.13 11.03 2.27 93.80 2.86 24.46 1.46 -34.67
L 75 x 75 x 9 65.40 12.29 2.26 103.66 2.85 27.13 1.46 -38.26
L 75 x 75 x 10 71.43 13.52 2.25 113.08 2.83 29.77 1.45 -41.66

× Proles are also available laser welded with full penetration, equivalent to hot rolled (r = laser seam).
× Prole sind auch Lasergeschweisst mit Vollanbindung erhältlich, gleichwertig zu warm gewalzt (r = Laser Naht).
× Proles disponibles aussi soudé laser avec pénétration complète, équivalent au laminé à chaud (r = cordon laser).
Cornières à ailes égales
Dimensions: conformes à la norme EN 10056-1: 1998
Tolérances: EN 10056-2:1993.
Gleichschenkliger Winkelstahl
Abmessungen: gemäß EN 10056-1: 1998
Toleranzen: EN 10056-2:1993.
Equal leg angles
Dimensions: in accordance with EN 10056-1: 1998
Tolerances: EN 10056-2:1993.
h
r
t
t
b
s
12
z
y
z
u
vv
v
v
u
uu
ys
45°
General properties / Generelle Eigenschaften / Valeurs generaux
Designation Dimensions Position of axes
Bezeichnung Abmessungen Lage der Achsen
Désignation Dimensions Position des axes
G h = b t r Azs=ysv u1u2
kg/m mm mm mm mm2mm mm mm mm
x102
L 80 x 80 x 6 7.48 80 6 10 / 2 * 9.35 21.67 56.57 30.65 28.09
L 80 x 80 x 7 8.65 80 7 10 / 2 * 10.82 22.12 56.57 31.29 28.16
L 80 x 80 x 8 9.81 80 8 10 / 2 * 12.27 22.55 56.57 31.89 28.26
L 80 x 80 x 9 10.96 80 9 10 / 2 * 13.70 22.96 56.57 32.47 28.39
L 80 x 80 x 10 12.09 80 10 10 / 2 * 15.11 23.36 56.57 33.04 28.53
L 90 x 90 x 6 8.44 90 6 10 / 2 * 10.55 24.16 63.64 34.17 31.64
L 90 x 90 x 7 9.79 90 7 11 / 2 * 12.24 24.52 63.64 34.68 31.63
L 90 x 90 x 8 11.11 90 8 11 / 2 * 13.89 24.96 63.64 35.31 31.71
L 90 x 90 x 9 12.42 90 9 11 / 2 * 15.52 25.39 63.64 35.90 31.82
L 90 x 90 x 10 13.70 90 10 11 / 2 * 17.13 25.80 63.64 36.48 31.95
L 100 x 100 x 6 9.44 100 6 12 / 2 * 11.79 26.42 70.71 37.36 35.10
L 100 x 100 x 7 10.93 100 7 12 / 2 * 13.66 26.91 70.71 38.06 35.12
L 100 x 100 x 8 12.41 100 8 12 / 2 * 15.51 27.37 70.71 38.70 35.18
L 100 x 100 x 9 13.88 100 9 12 / 2 * 17.34 27.80 70.71 39.32 35.27
L 100 x 100 x 10 15.32 100 10 12 / 2 * 19.15 28.22 70.71 39.92 35.38
L 100 x 100 x 12 18.17 100 12 12 / 2 * 22.71 29.03 70.71 41.06 35.65
L 110 x 110 x 6 10.40 110 6 12 / 2 * 12.99 28.91 77.78 40.88 38.66
L 110 x 110 x 7 12.05 110 7 12 / 2 * 15.06 29.40 77.78 41.58 38.67
L 110 x 110 x 8 13.69 110 8 12 / 2 * 17.11 29.86 77.78 42.23 38.73
L 110 x 110 x 9 15.32 110 9 12 / 2 * 19.14 30.30 77.78 42.85 38.81
L 110 x 110 x 10 16.95 110 10 13 / 2 * 21.18 30.64 77.78 43.34 38.82
L 110 x 110 x 11 18.54 110 11 13 / 2 * 23.17 31.06 77.78 43.93 38.94
L 110 x 110 x 12 20.11 110 12 13 / 2 * 25.14 31.47 77.78 44.50 39.07
L 120 x 120 x 7 13.19 120 7 13 / 2 * 16.49 31.78 84.85 44.94 42.17
L 120 x 120 x 8 14.99 120 8 13 / 2 * 18.74 32.25 84.85 45.61 42.21
L 120 x 120 x 9 16.78 120 9 13 / 2 * 20.97 32.70 84.85 46.25 42.27
L 120 x 120 x 10 18.55 120 10 13 / 2 * 23.18 33.14 84.85 46.86 42.37
