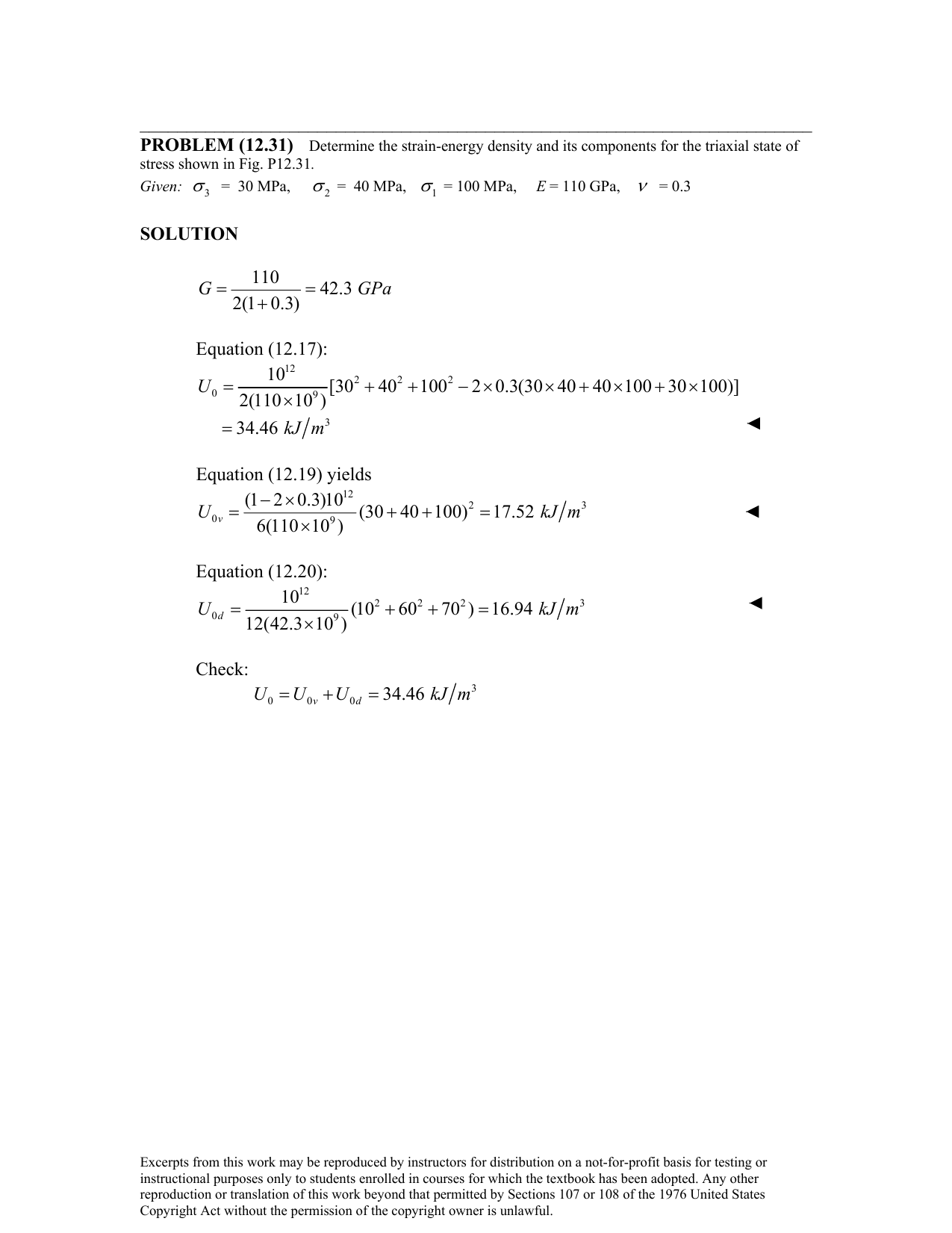

PROBLEM (12.31) Determine the strain-energy density and its components for the triaxial state of
stress shown in Fig. P12.31.
Given: σ 3 = 30 MPa, σ 2 = 40 MPa,
σ1
= 100 MPa,
E = 110 GPa,
ν
= 0.3
SOLUTION
G=
110
= 42.3 GPa
2(1 + 0.3)
Equation (12.17):
1012
U0 =
[302 + 402 + 1002 − 2 × 0.3(30 × 40 + 40 × 100 + 30 × 100)]
9
2(110 × 10 )
= 34.46 kJ m3
Equation (12.19) yields
(1 − 2 × 0.3)1012
U 0v =
(30 + 40 + 100) 2 = 17.52 kJ m3
9
6(110 ×10 )
Equation (12.20):
1012
U 0d =
(102 + 602 + 702 ) = 16.94 kJ m3
9
12(42.3 × 10 )
Check:
U 0 = U 0 v + U 0 d = 34.46 kJ m3
